23803 (2226) - Toro Directional Drill (SN: 400000000 - 404299999) Engine and Mounting Assembly Parts Diagram

Directional Drill

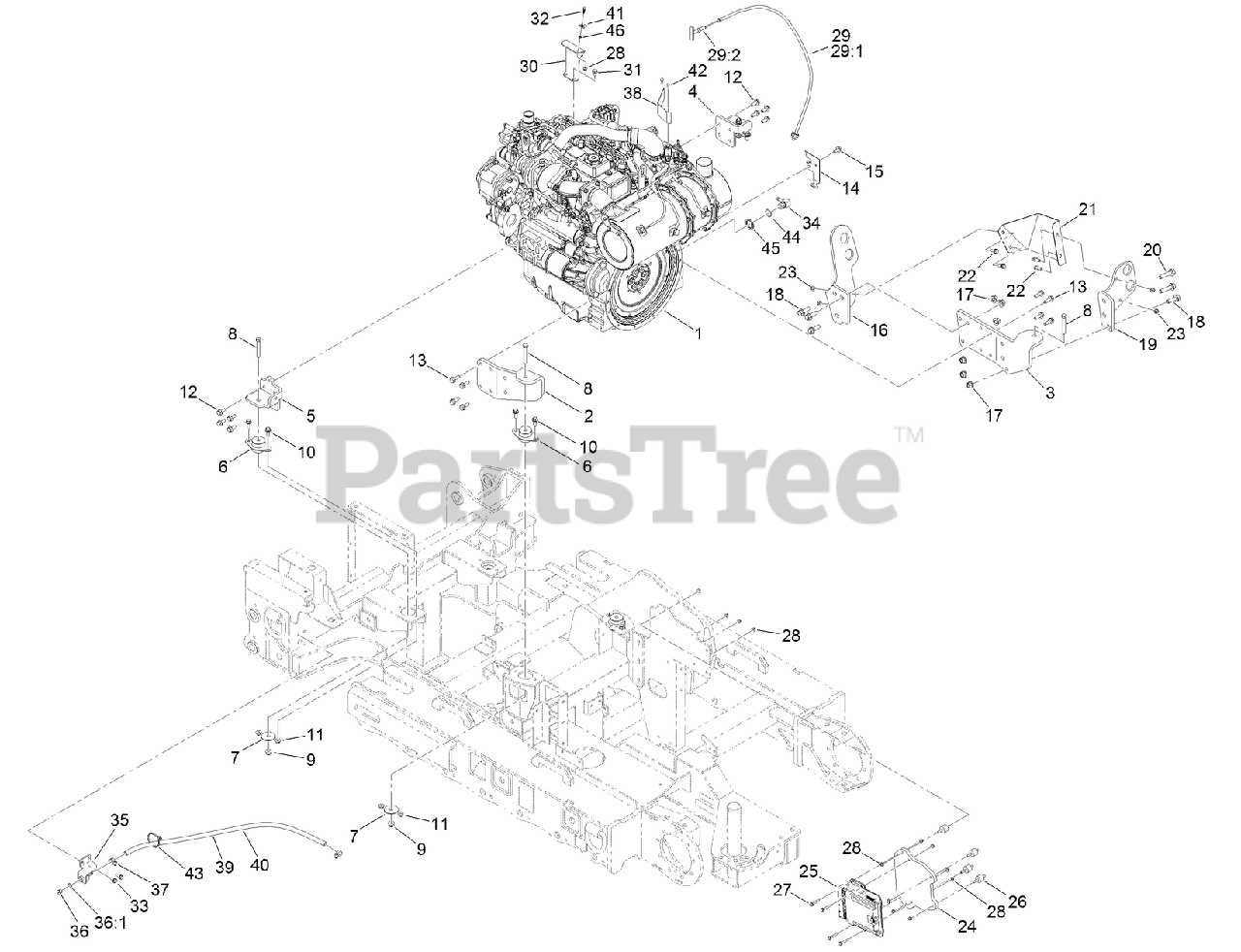

Engine and Mounting Assembly Parts Diagram

  • Title

1

Toro 131-0100

ENGINE ASM

$

$

Not available

2

Toro 131-8902-03

BRACKET-ENGINE MOUNT, RH FRONT

$

$

Currently unavailable

3

Toro 138-1306-03

BRACKET-ENGINE MOUNT, LH FRONT

$

$

Currently unavailable

4

Toro 136-1543-03

BRACKET, LH REAR

$

$

Currently unavailable

5

Toro 131-8904-03

BRACKET, RH REAR

$

$

Currently unavailable

6

Toro 130-2486

MOUNT

$37.99

$

Usually ships in 3-6 days

0

7

Toro 87-5100

WASHER-SNUBBING

$4.49

$

Usually ships in 3-6 days

0

8

Toro 324-12

SCREW-HH
(Superseded to 3241-7)

$3.99

$

In Stock, only 3 left!

0

9

Toro 114-8417

NUT-HF, NI

$2.49

$

In Stock, Qty 20+

0

10

Toro 3234-42

SCREW-HHF

$3.49

$

In Stock, only 4 left!

0

11

Toro 104-8301

NUT-HF, NI

$1.49

$

In Stock, Qty 20+

0

12

Toro 33105-025

SCREW-HHF

$1.99

$

Usually ships in 3-6 days

0

13

Toro 33105-030

SCREW-HHF

$2.49

$

Usually ships in 3-6 days

0

14

Toro 132-9627

BRACKET-HARNESS

$31.99

$

Usually ships in 3-6 days

0

15

Toro 33105-020

SCREW-HHF

$0.99

$

Usually ships in 3-6 days

0

16

Toro 136-8946-03

BRACKET-BULKHEAD, UPPER

$

$

Currently unavailable

17

Toro 99-5107

NUT-LOCK

$1.99

$

In Stock, Qty 20+

0

18

Toro 130-6482

SCREW-HHF

$4.49

$

Usually ships in 3-6 days

0

19

Toro 138-1307-03

BRACKET-BULKHEAD, LOWER

$

$

Currently unavailable

20

Toro 3234-27

SCREW-HHF

$6.99

$

Usually ships in 3-6 days

0

21

Toro 136-8947-03

BRACKET-SHIELD, HEAT

$

$

Currently unavailable

22

Toro 3234-29

SCREW-HHF

$2.99

$

In Stock, Qty 12

0

23

Toro 104-8300

NUT-HF, NI

$1.49

$

In Stock, Qty 20+

0

24

Toro 136-6819-03

PLATE-WEIGHT, ECU

$

$

Currently unavailable

25

Toro 121-5592

CONTROLLER-ENGINE

$3515.99

$

Usually ships in 3-6 days

0

26

Toro 132-1356

MOUNT-ISOLATOR

$9.49

$

Usually ships in 3-6 days

0

27

Toro 94-5781

SCREW-HHF

$6.99

$

Usually ships in 3-6 days

0

28

Toro 104-7201

NUT-HF

$1.49

$

In Stock, Qty 20+

0

29

Toro 131-8910

OIL DIPSTICK ASM

$

$

Currently unavailable

29:1

Toro 137-1791

TUBE-DIPSTICK

$

$

Currently unavailable

29:2

Toro 137-5230

DIPSTICK-OIL, ENGINE

$

$

Currently unavailable

30

Toro 137-7143-03

SHIELD-FUEL HOSE

$

$

Not available

31

Toro 33104-016

SCREW-HHF

$2.99

$

In Stock, only 2 left!

0

32

Toro 99-6810

SCREW-HHF

$3.49

$

Usually ships in 3-6 days

0

33

Toro 32104-32

SCREW-HWH

$2.49

$

In Stock, only 3 left!

0

34

Toro 112-2404

FITTING-BARBED-90

$138.99

$

Usually ships in 3-6 days

0

35

Toro 136-1582-03

PLUG-OIL

$

$

Currently unavailable

36

Toro 353-989

PLUG-HEX, HOLLOW

$23.99

$

Usually ships in 3-6 days

0

36:1

Toro 237-42

O-RING

$2.99

$

In Stock, Qty 20+

0

37

Toro 2412-36

CLAMP-HOSE

$2.49

$

Usually ships in 3-6 days

0

38

Toro 137-5200

PLATE-SENSOR, DPF

$

$

Currently unavailable

39

Toro 136-1583

HOSE-OIL DRAIN

$

$

Currently unavailable

40

Toro 137-5273

CONDUIT-FUEL LINE, SPLIT

$

$

Currently unavailable

41

Toro 138-5104

CLAMP-R

$

$

Currently unavailable

42

Toro 33103-020

SCREW-HHF

$3.99

$

Usually ships in 3-6 days

0

43

Toro 3290-379

TIE-CABLE

$0.99

$

In Stock, only 3 left!

0

44

Toro 237-58

O-RING

$3.49

$

Usually ships in 3-6 days

0

45

Toro 125-7177

WASHER-SEAL

$9.99

$

Usually ships in 3-6 days

0

46

Toro 3255-7

WASHER-LOCK/EXT

$1.99

$

Usually ships in 3-6 days

0
