9232 - Scag Mulch Master for 40" Standard Tiger Cub Deck Underside View Of Standard (Tiger Cub) Parts Diagram

Mulch Master for 40" Standard Tiger Cub Deck

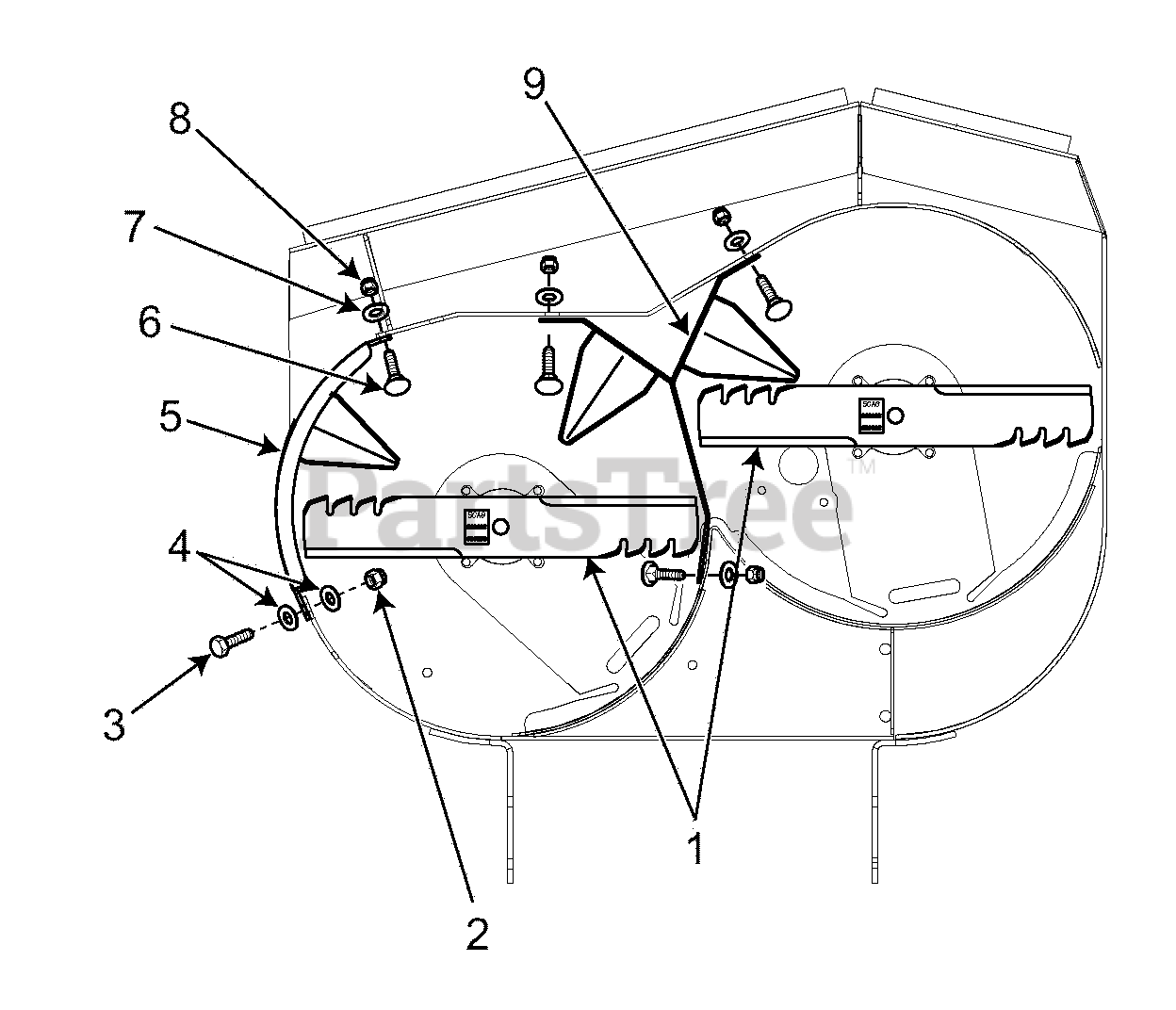

Underside View Of Standard (Tiger Cub) Parts Diagram

  • Title
1

Scag 482236

Mulch Blades
(Superseded to 482962)

$63.99

$

In Stock, only 2 left!

0

2

Scag 04021-10

Elastic Stop Nut 5/16-18

$0.99

$

In Stock, Qty 20+

0

3

Scag 04001-09

H.H. Bolt 5/16-18 x 1"

$0.99

$

In Stock, Qty 20+

0

4

Scag 04040-15

Flatwasher 5/16"

$0.99

$

In Stock, Qty 20+

0

5

Scag 451365

Mulch Plate

$

$

Not available

6

Scag 04003-23

Carriage Bolt 3/8-16 x 1'

$1.49

$

In Stock, Qty 20+

0

7

Scag 04041-07

Flatwasher 3/8"

$0.99

$

In Stock, Qty 20+

0

8

Scag 04021-09

Elastic Stop Nut 3/8-16

$0.99

$

In Stock, Qty 20+

0

9

Scag 451270

Mulch Baffle

$

$

Not available
