Evolution (5900778) - Ferris Evolution Series 36" Stand-On Mower, 19hp Kawasaki Electrical Group - 36" Models Parts Diagram

Evolution Series 36" Stand-On Mower, 19hp Kawasaki

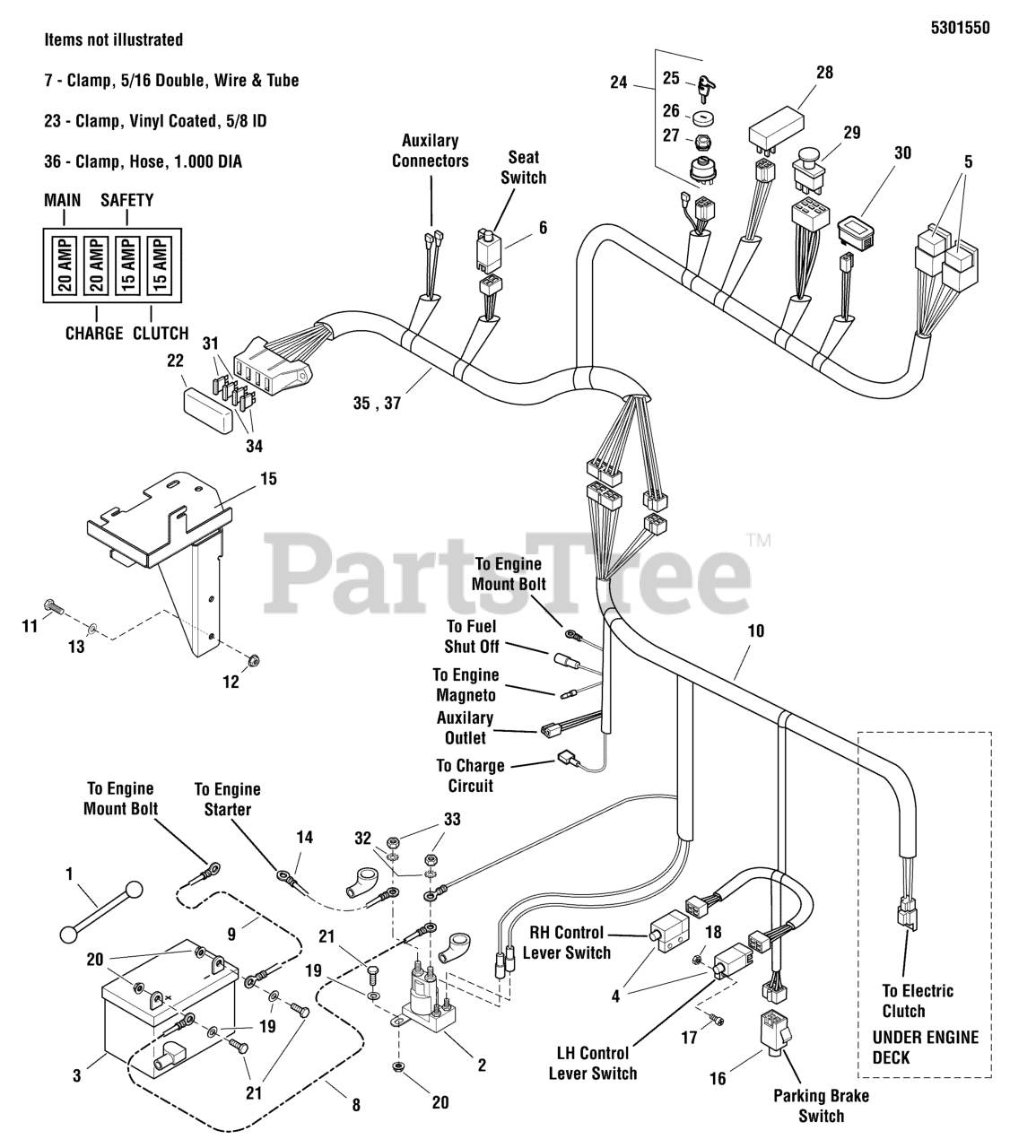

Electrical Group - 36" Models Parts Diagram

  • Title

1

Ferris 1722009

STRAP-BLACK RUBB
(Superseded to 1722009FS)

$9.99

$

Usually ships in 2-12 days

0

2

Ferris 1724815

SOLENOID-4 POLE 12 VOLT DC (TROMBETTA)
(Superseded to 1724815FS)

$29.99

$

Usually ships in 2-12 days

0

3

BATTERY, WET (BCIU1, 340 CCA)

$

$

Not available

4

Ferris 5021451

SWITCH, PLUNGER, N.O.
(Superseded to 5021451SM)

$11.99

$

In Stock, only 2 left!

0

5

Ferris 5021766

RELAY, 12V, 40A
(Superseded to 5021766SM)

$24.99

$

Usually ships in 2-12 days

0

6

Ferris 5022438

SWITCH, PLUNGER, NO/NO BOLT-ON
(Superseded to 5022438SM)

$20.99

$

Usually ships in 2-12 days

0

7

Ferris 5025430

CLAMP, 5/16, DOUBLE, WIRE & TUBE
(Superseded to 5025430SM)

$2.99

$

Usually ships in 2-12 days

0

8

Ferris 5047136

BATTERY CABLE, POSITIVE, 15
(Superseded to 5047136SM)

$22.99

$

In Stock, only 1 left!

0

9

Ferris 5021406

BATTERY CABLE, NEG, 22, 1/4-5/16
(Superseded to 5021406SM)

$16.99

$

Usually ships in 2-12 days

0

10

Ferris 5404944

WIRE HARNESS, MAIN, EVO 36

$420.99

$

Usually ships in 2-12 days

0

11

Ferris 5025013X12

BOLT, 3/8-16 X 1-1/2" GD5 CZ
(Superseded to 5025013X12SM)

$3.99

$

Usually ships in 2-12 days

0

12

Ferris 5025394

NUT, 3/8-16 HEX NYLOCK FLANGE
(Superseded to 5025394SM)

$4.49

$

In Stock, Qty 20+

0

13

Ferris 5025156

WASHER, 3/8 SAE
(Superseded to 5025156FS)

$3.49

$

Usually ships in 2-12 days

0

14

Ferris 5023488

BATTERY CABLE, POSITIVE, 22
(Superseded to 5023488SM)

$27.99

$

Usually ships in 2-12 days

0

15

Ferris 5404619B

WELD, BATTERY MOUNT - RED

$71.99

$

Usually ships in 2-12 days

0

16

Ferris 7022886

SWITCH, DP NO/NC SNAP-IN
(Superseded to 7022886YP)

$14.99

$

In Stock, Qty 20+

0

17

Ferris 5025179X4

SCREW- #10-24 X 1/2 ROUND PHILLIPS

$

$

Currently unavailable

18

Ferris 5025271

NUT, #10-24 HEX NYLON LOCK
(Superseded to 5025271FS)

$3.99

$

Usually ships in 2-12 days

0

19

Ferris 5025154

WASHER, 1/4 SAE
(Superseded to 84007033)

$4.49

$

Usually ships in 2-12 days

0

20

Ferris 5025391

NUT, 1/4-20 HEX NYLOCK FLANGE
(Superseded to 5025391FS)

$3.99

$

In Stock, only 2 left!

0

21

Ferris 5025010X6

BOLT, 1/4-20 X 3/4 GD5 YZ
(Superseded to 5025010X6SM)

$3.99

$

In Stock, Qty 13

0

22

Ferris 5022805

COVER, VINYL FUSEBLOCK
(Superseded to 5022805SM)

Note: (Not illustrated.)

$6.49

$

In Stock, only 1 left!

0

23

Ferris 5101932

CLAMP, VINYL COATED, 5/8 ID
(Superseded to 5101932YP)

Note: (Not illustrated.)

$7.99

$

Usually ships in 2-12 days

0

24

Ferris 5020927

SWITCH, IGNITION, 6 POST
(Superseded to 5020927FS)

Note: (Includes Ref Nos 25 - 27)

$33.99

$

Usually ships in 2-12 days

0

25

Ferris 5022789

KEY, IGNITION MOLDED SET

$

$

Currently unavailable

26

Ferris 5022790

COVER, PLASTIC, SNAP ON
(Superseded to 1704346SM)

$4.49

$

Usually ships in 2-12 days

0

27

Ferris 5022791

PLASTIC NUT
(Superseded to 5022791SM)

$3.49

$

Usually ships in 2-12 days

0

28

Ferris 5023310

MODULE, TIME DELAY
(Superseded to 5023310SM)

$114.99

$

Usually ships in 2-12 days

0

29

Ferris 5022180

SWITCH, BLADE ENGAGEMENT
(Superseded to 1722887SM)

$33.99

$

In Stock, Qty 17

0

30

Ferris 5102417

HOUR METER

$64.99

$

Usually ships in 2-12 days

0

31

Ferris 5021603

FUSE, ATO, 20 AMP
(Superseded to 5021603SM)

$4.99

$

In Stock, only 2 left!

0

32

Ferris 5023217

WASHER, LIGHT LOCK, 5/16
(Superseded to 5023217SM)

$3.49

$

Usually ships in 2-12 days

0

33

Ferris 5023216

NUT, HEX JAM, 5/16-24
(Superseded to 5023216SM)

$2.99

$

Usually ships in 2-12 days

0

34

Ferris 5101935

FUSE, ATO-15 (15 AMP)
(Superseded to 5101935YP)

$4.49

$

Usually ships in 2-12 days

0

35

Ferris 5404946

WIRE HARNESS, OPERATOR COMPARTMENT, EVO

$580.99

$

Usually ships in 2-12 days

0

36

Ferris 5023173

CLAMP, HOSE, 1.000 DIA
(Superseded to 5023173SM)

$3.99

$

Usually ships in 2-12 days

0

37

Ferris 5406232

WIRE HARNESS, ALL CONDITION SHUT DOWN

$

$

Currently unavailable
