Evolution (5900913) - Ferris Evolution Series 36" Stand-On Mower, 19hp Kawasaki 36" Mower Deck - Belts, Pulleys & Idler Arm Group Parts Diagram

Evolution Series 36" Stand-On Mower, 19hp Kawasaki

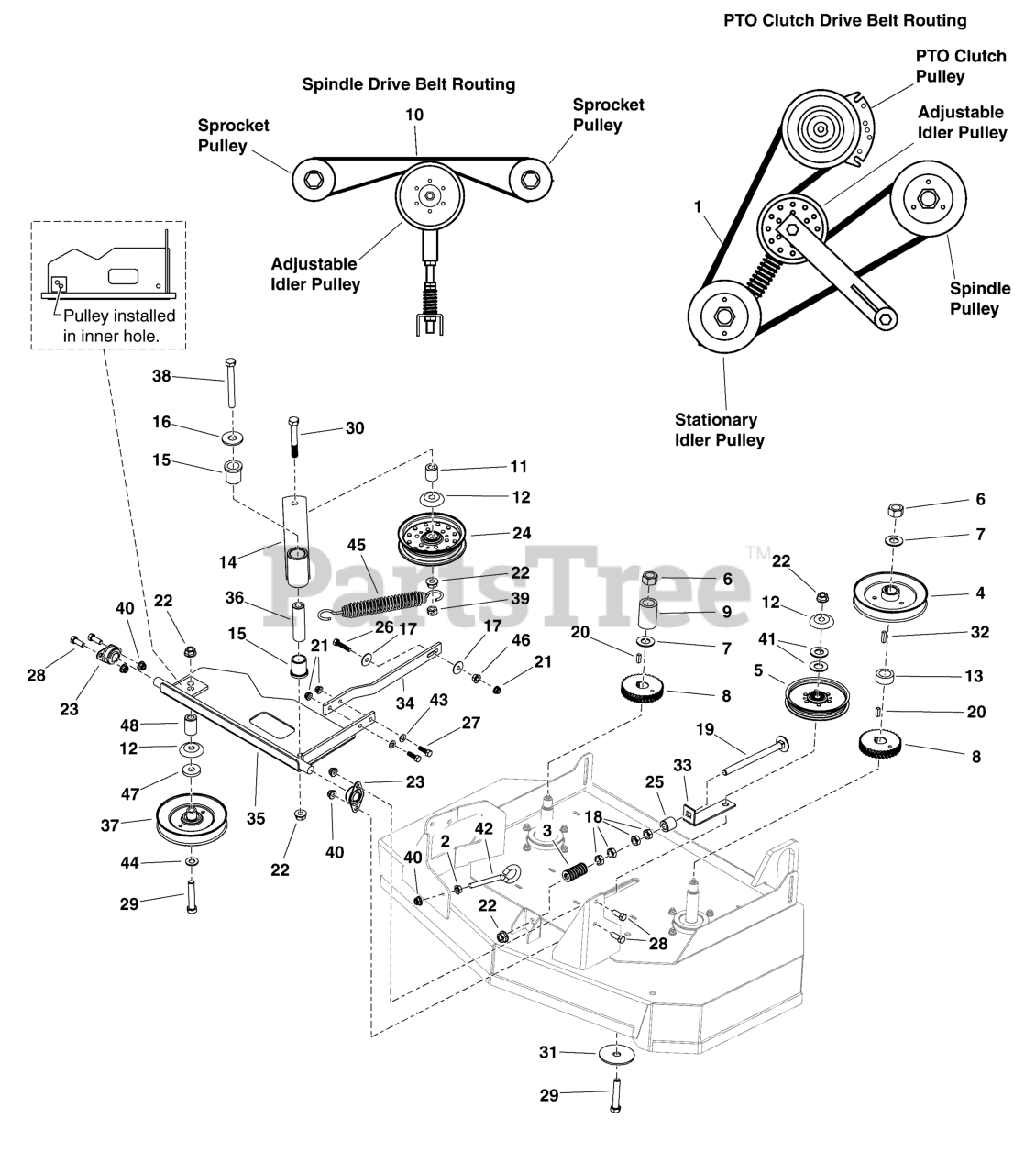

36" Mower Deck - Belts, Pulleys & Idler Arm Group Parts Diagram

  • Title

1

Ferris 5021063

BELT, BP-SEC, 91.12EL, ARAMID, WRPD

$61.99

$

Usually ships in 2-12 days

0

2

Ferris 5025128

NUT, 3/8-16 HEX SERRATED FLANGE
(Superseded to 5025128SM)

$3.49

$

Usually ships in 2-12 days

0

3

Ferris 5022788

SPRING, COMPRESSION 2 MEDIUM
(Superseded to 5022788SM)

$36.99

$

In Stock, only 1 left!

0

4

Ferris 5102335

PULLEY-6.33 OD. X .98 BORE X 1.53 HEIGHT

$

$

Currently unavailable

5

Ferris 5023264

PULLEY-IDLER, 5.00OD, .385ID, 1.50W STL

$49.99

$

Usually ships in 2-12 days

0

6

Ferris 5025405

NUT, 3/4-16 HEX
(Superseded to 5025405SM)

$3.99

$

In Stock, Qty 20+

0

7

Ferris 5025406

WASHER, 3/4 BELLEVILLE
(Superseded to 5025406FS)

$3.99

$

Usually ships in 2-12 days

0

8

Ferris 5048977

SPROCKET, GOODYEAR EAGLE PD

$326.99

$

Usually ships in 2-12 days

0

9

Ferris 5049218

SPACER, 1.00 X 1.57 X 2.19

$22.99

$

Usually ships in 2-12 days

0

10

Ferris 5049238

BELT, SPROCKET DRIVE

$130.99

$

Usually ships in 2-12 days

0

11

Ferris 5061781

SPACER, .52 X 1.00 X 1.15
(Superseded to 5061781FS)

$12.99

$

Usually ships in 2-12 days

0

12

Ferris 5101103

SHIELD, PULLEY BEARING
(Superseded to 5101103SM)

$10.99

$

Usually ships in 2-12 days

0

13

Ferris 5101657

SPACER, 1.00 ID X 1.50 OD X .63 LG. YZ.

$15.99

$

Usually ships in 2-12 days

0

14

Ferris 5405003B

WELD, IDLER ARM - RED
(Superseded to 5405003BFS)

$52.99

$

Usually ships in 2-12 days

0

15

Ferris 5021541

BUSHING, FLANGE
(Superseded to 5021541SM)

$9.99

$

In Stock, Qty 15

0

16

Ferris 5025159

WASHER, 5/8 USS

$

$

Currently unavailable

17

Ferris 5025164

WASHER, 5/16 FENDER
(Superseded to 5025164SM)

$3.99

$

In Stock, only 1 left!

0

18

Ferris 5025301

NUT, 1/2-13 HEX JAM
(Superseded to 5025301SM)

$3.49

$

Usually ships in 2-12 days

0

19

Ferris 5025334

BOLT, 1/2-13 X 7, CARRIAGE

$10.99

$

Usually ships in 2-12 days

0

20

Ferris 5025389

KEY, 1/4 SQ. X 3/4

$3.49

$

Usually ships in 2-12 days

0

21

Ferris 5025392

NUT, 5/16-18 HEX NYLOCK FLANGE
(Superseded to 5025392FS)

$3.49

$

Usually ships in 2-12 days

0

22

Ferris 5025396

NUT, Hex Flange, Nylock, 1/2-13
(Superseded to 770225)

$3.49

$

In Stock, Qty 20+

0

23

Ferris 5100561

BEARING, BRONZE FLANGE, 3/4"
(Superseded to 5100561SM)

$14.99

$

In Stock, only 4 left!

0

24

Ferris 5101794

PULLEY, IDLER, 5" OD, 1"FACE, 5.75 FL
(Superseded to 5101794YP)

$57.99

$

Usually ships in 2-12 days

0

25

Ferris 5101822

SPACER, .515 X 1.00 X 1.00, YZ

$23.99

$

Usually ships in 2-12 days

0

26

Ferris 5025011X12

BOLT, 5/16-18 X 1-1/2 GD5 YZ
(Superseded to 5025011X12SM)

$3.99

$

Usually ships in 2-12 days

0

27

Ferris 5025011X8

BOLT, 5/16-18 X 1 GD5 YZ
(Superseded to 5025011X8FS)

$3.49

$

Usually ships in 2-12 days

0

28

Ferris 5025013X8

BOLT, 3/8-16 X 1" GD5 CZ
(Superseded to 5025013X8SM)

$3.99

$

Usually ships in 2-12 days

0

29

Ferris 5025017X22

BOLT, 1/2-13 X 2-3/4 GD5 CZ
(Superseded to 5025017X22SM)

$5.99

$

In Stock, only 1 left!

0

30

Ferris 5025017X28

BOLT, 1/2-13 X 3-1/2, HEX HD, GD5, CZ (SV)
(Superseded to 5025017X28SM)

$5.99

$

In Stock, only 1 left!

0

31

Ferris 5043652

WASHER, .64 X 3.00 X .14, YZ
(Superseded to 5043652FS)

$6.99

$

Usually ships in 2-12 days

0

32

Ferris 5050407X10

KEY, 1/4 SQ. X 1.25
(Superseded to 5050407X10YP)

$3.99

$

Usually ships in 2-12 days

0

33

Ferris 5404210B

PLATE, BRACKET, IDLER - RED

$23.99

$

Usually ships in 2-12 days

0

34

Ferris 5406191B

BAR, IDLER PLATE SUPPORT - RED

$24.99

$

Usually ships in 2-12 days

0

35

Ferris 5404767B

WELD, IDLER MOUNT PLATE - RED

$148.99

$

In Stock, only 2 left!

0

36

Ferris 5045022

SPACER, .52 X 1.00 X 3.50
(Superseded to 5045022SM)

$24.99

$

In Stock, only 1 left!

0

37

Ferris 5101996

PULLEY, 6" DEEP GROOVE, COMPENSATOR
(Superseded to 5101996FS)

$80.99

$

Usually ships in 2-12 days

0

38

Ferris 5025017X36

BOLT, 1/2-13 X 4-1/2 GD5
(Superseded to 5025017X36SM)

$6.49

$

Usually ships in 2-12 days

0

39

Ferris 5025332

NUT, 1/2-13 HEX SIDE LOCK
(Superseded to 5025332SM)

$3.49

$

In Stock, only 2 left!

0

40

Ferris 5025394

NUT, 3/8-16 HEX NYLOCK FLANGE
(Superseded to 5025394SM)

$4.49

$

In Stock, Qty 20+

0

41

Ferris 5025158

WASHER, 1/2 SAE
(Superseded to 5025158SM)

$3.99

$

In Stock, Qty 20+

0

42

Ferris 5025429

EYEBOLT, 3/8-16 X 4, 2.13THRD, .75EYE, C
(Superseded to 5025429SM)

$6.49

$

Usually ships in 2-12 days

0

43

Ferris 5025155

WASHER, 5/16" SAE

$

$

Currently unavailable

44

Ferris 5025158

WASHER, 1/2 SAE
(Superseded to 5025158SM)

$3.99

$

In Stock, Qty 20+

0

45

Ferris 5100633

SPRING, EXTENSION, SWIVEL, SHORT HOOK
(Superseded to 5100633YP)

$34.99

$

Usually ships in 2-12 days

0

46

Ferris 5025127

NUT, 5/16-18 HEX SERRATED FLANGE (SMALL)
(Superseded to 5025127SM)

$3.49

$

In Stock, Qty 7

0

47

Ferris 5100520

SPACER, .52 X 1.00 X .22, PM, CZ
(Superseded to 5100520SM)

$6.49

$

Usually ships in 2-12 days

0

48

Ferris 5045178

SPACER, .52 X 1.00 X .75
(Superseded to 5045178SM)

$7.49

$

In Stock, only 2 left!

0
