Evolution (5900913) - Ferris Evolution Series 36" Stand-On Mower, 19hp Kawasaki Guards & Covers Group (Export Models) Parts Diagram

Evolution Series 36" Stand-On Mower, 19hp Kawasaki

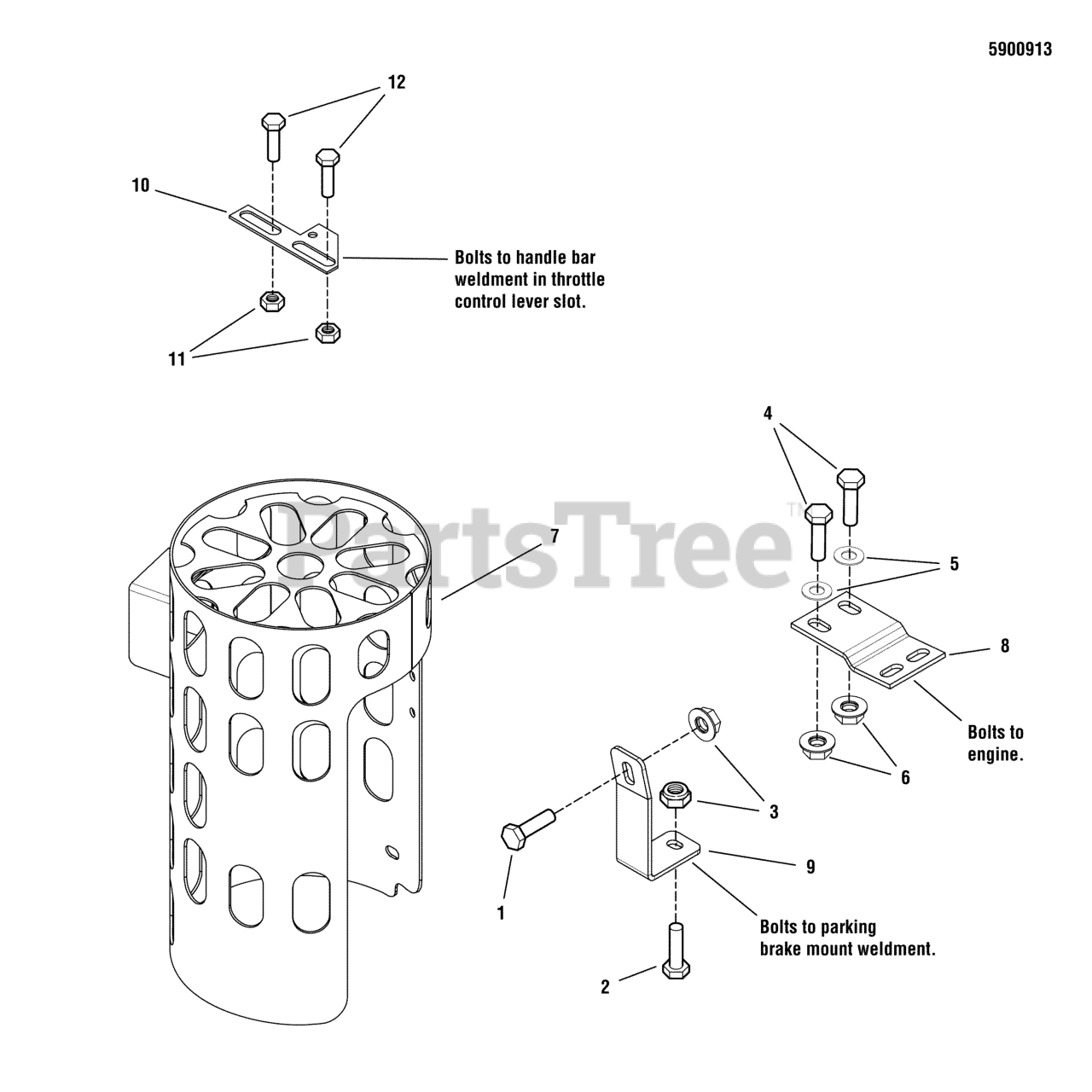

Guards & Covers Group (Export Models) Parts Diagram

  • Title

1

Ferris 5025011X6

BOLT, 5/16-18 X 3/4 GD5
(Superseded to 5025011X6SM)

$3.99

$

In Stock, only 3 left!

0

2

Ferris 5025011X8

BOLT, 5/16-18 X 1 GD5 YZ
(Superseded to 5025011X8FS)

$3.49

$

Usually ships in 2-12 days

0

3

Ferris 5025392

NUT, 5/16-18 HEX NYLOCK FLANGE NUT
(Superseded to 5025392FS)

$3.49

$

Usually ships in 2-12 days

0

4

Ferris 5025010X6

BOLT, 1/4-20 X 3/4 GD5 YZ
(Superseded to 5025010X6SM)

$3.99

$

In Stock, Qty 13

0

5

Ferris 5025154

WASHER, 1/4 SAE
(Superseded to 84007033)

$4.49

$

Usually ships in 2-12 days

0

6

Ferris 5025095

NUT, 1/4-20 HEX NYLON LOCK
(Superseded to 5025095SM)

$3.49

$

In Stock, Qty 11

0

7

Ferris 5404432B

WELD, MUFFLER GUARD, FERRIS CCW - RED

$170.99

$

Usually ships in 2-12 days

0

8

Ferris 5404435B

BRACKET, GUARD MOUNT - RED

$25.99

$

Usually ships in 2-12 days

0

9

Ferris 5406234B

BRACKET, GUARD MOUNT, LOWER - RED

$

$

Currently unavailable

10

PLATE, THROTTLE STOP

$

$

Not available

11

Ferris 5025271

NUT, #10-24 HEX NYLON LOCK
(Superseded to 5025271FS)

$3.99

$

Usually ships in 2-12 days

0

12

Ferris 5025179X6

SCREW, #10-24 X 3/4 ROUND PHILLIPS
(Superseded to 5025179X6SM)

$3.99

$

Usually ships in 2-12 days

0
