EVS (5900910) - Snapper Pro EVS Series 36" Stand-On Mower, 19hp Kawasaki Engine & PTO Group - 19HP Kawasaki Parts Diagram

EVS Series 36" Stand-On Mower, 19hp Kawasaki

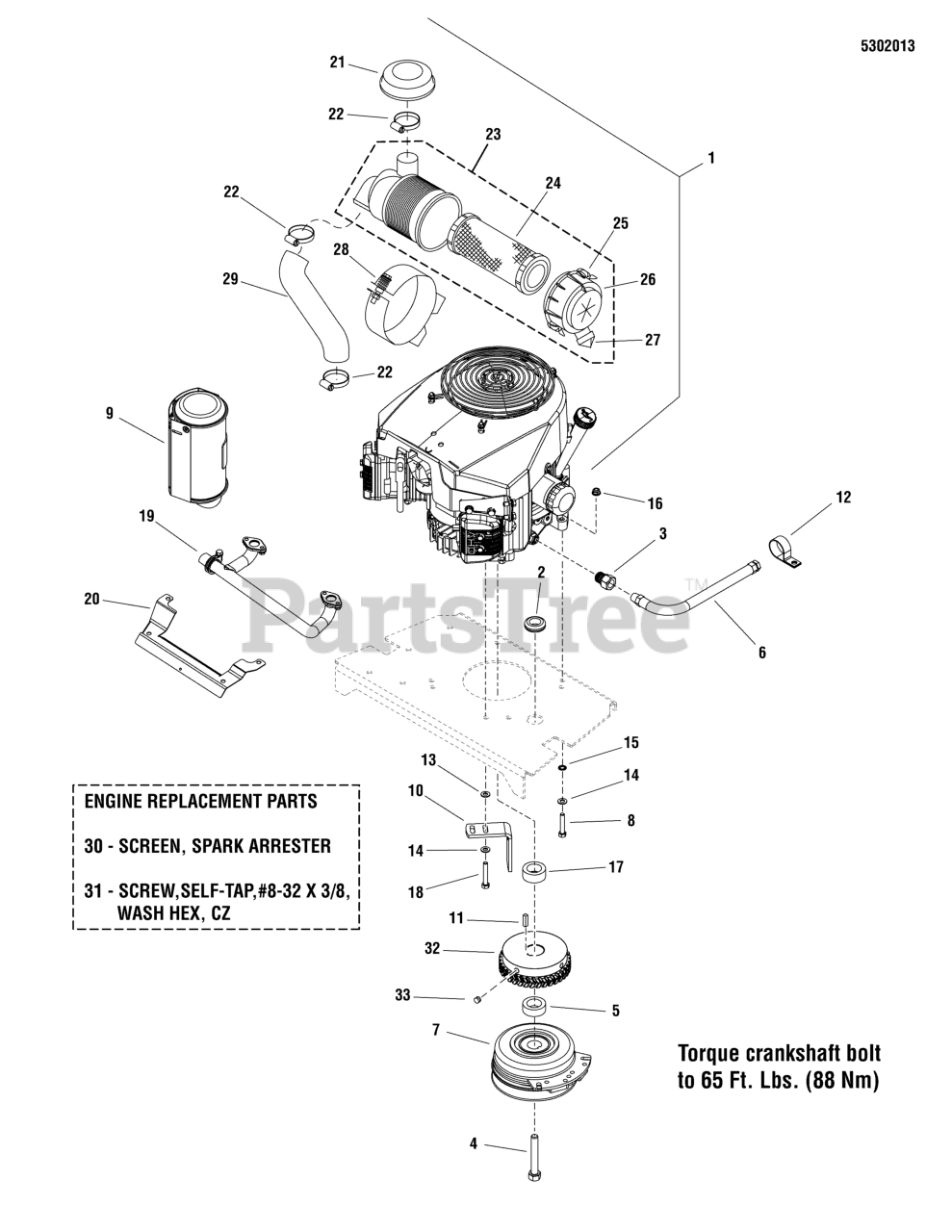

Engine & PTO Group - 19HP Kawasaki Parts Diagram

  • Title

1

ENGINE, 19HP, KAWASAKI

$

$

Not available

2

Snapper Pro 5021379

GROMMET, 7/8
(Superseded to 5021379SM)

$6.99

$

Usually ships in 2-12 days

0

3

Snapper Pro 5022234

ADAPTER-OIL DRAIN
(Superseded to 5022234SM)

$15.99

$

Usually ships in 2-12 days

0

4

Snapper Pro 5045289

BOLT, CRANKSHAFT, 7/16 X 2-1/2
(Superseded to 5102864)

$5.49

$

Usually ships in 2-12 days

0

5

Snapper Pro 5048135

SPACER, 1.13 X 1.75 X .62
(Superseded to 5048135FS)

$17.99

$

Usually ships in 2-12 days

0

6

Snapper Pro 5048681

HOSE, OIL DRAIN
(Superseded to 5048681SM)

$18.99

$

In Stock, only 1 left!

0

7

Snapper Pro 5105090

* CLUTCH, 5218-134, WARNER
(Superseded to 5105090YP)

$456.99

$

In Stock, only 1 left!

0

8

Snapper Pro 5025011X14

BOLT, 5/16-18 X 1-3/4 GD5 YZ
(Superseded to 5025011X14SM)

$3.99

$

Usually ships in 2-12 days

0

9

Snapper Pro 5100566X1

MUFFLER, FUEL PUMP SIDE, 19HP KAWI

$220.99

$

Usually ships in 2-12 days

0

10

Snapper Pro 5404967A

ANCHOR, CLUTCH - BLK
(Superseded to 5404967AYP)

$32.99

$

Usually ships in 2-12 days

0

11

Snapper Pro 5050407X8

KEY, 1/4 SQ X 1
(Superseded to 5050407X8SM)

$3.99

$

In Stock, Qty 9

0

12

Snapper Pro 5101932

CLAMP, VINYL COATED, 5/8 ID
(Superseded to 5101932YP)

$7.99

$

Usually ships in 2-12 days

0

13

Snapper Pro 5025337

WASHER, 5/16 USS
(Superseded to 5025337FS)

$3.99

$

Usually ships in 2-12 days

0

14

Snapper Pro 5025155

WASHER, 5/16" SAE

$

$

Currently unavailable

15

Snapper Pro 5025188

WASHER, 5/16 INT. TOOTH LOCK
(Superseded to 5025188SM)

$3.99

$

In Stock, only 1 left!

0

16

Snapper Pro 5025392

NUT, 5/16-18 HEX NYLOCK FLANGE
(Superseded to 5025392FS)

$3.49

$

Usually ships in 2-12 days

0

17

Snapper Pro 5101289

SPACER, 1.13 X 1.75 X .75

$20.99

$

Usually ships in 2-12 days

0

18

Snapper Pro 5025011X16

BOLT, 5/16-18 X 2, GD5
(Superseded to 5025011X16YP)

$3.99

$

Usually ships in 2-12 days

0

19

Snapper Pro 5100566X4

MANIFOLD. EXHAUST

$

$

Currently unavailable

20

Snapper Pro 5100566X5

HEAT SHIELD, EXHAUST MANIFOLD

$

$

Currently unavailable

21

Snapper Pro 5100255

RAIN COVER

$

$

Currently unavailable

22

Snapper Pro 5100256

CLAMP

$

$

Currently unavailable

23

Snapper Pro 5100257

AIR FILTER ASSEMBLY (REF NO. 24 - 27)

$219.99

$

Usually ships in 2-12 days

0

24

Snapper Pro 5100192

AIR FILTER, ELEMENT

$

$

Currently unavailable

25

Snapper Pro 5100259

CLAMP, CAP
(Superseded to 5023147)

$

$

Not available

26

Snapper Pro 5100260

CAP, FILTER CASE

$

$

Currently unavailable

27

Snapper Pro 5100261

RUBBER DUST CAP
(Superseded to 5023144)

$

$

Not available

28

Snapper Pro 5100262

CASE, BRACKET, COMPLETE

$75.99

$

Usually ships in 2-12 days

0

29

Snapper Pro 5100264

AIR INLET TUBE

$75.99

$

Usually ships in 2-12 days

0

30

Snapper Pro 5101677

SCREEN, SPARK ARRESTER

Note: (NOT ILLUSTRATED)

$26.99

$

Usually ships in 2-12 days

0

31

Snapper Pro 5025470

SCREW,SELF-TAP,#8-32 X 3/8,WASH HEX, CZ
(Superseded to 5025470YP)

Note: (NOT ILLUSTRATED)

$3.49

$

Usually ships in 2-12 days

0

32

Snapper Pro 5101519

SPROCKET, 44T X 1.125 BORE, EAGLE PD

$462.99

$

Usually ships in 2-12 days

0

33

Snapper Pro 5025531

SET SCREW, 5/16-18 X 3/8 PCH.
(Superseded to 5025531YP)

$3.49

$

In Stock, only 2 left!

0
