EVS (5900910) - Snapper Pro EVS Series 36" Stand-On Mower, 19hp Kawasaki Pump Drive Group Parts Diagram

EVS Series 36" Stand-On Mower, 19hp Kawasaki

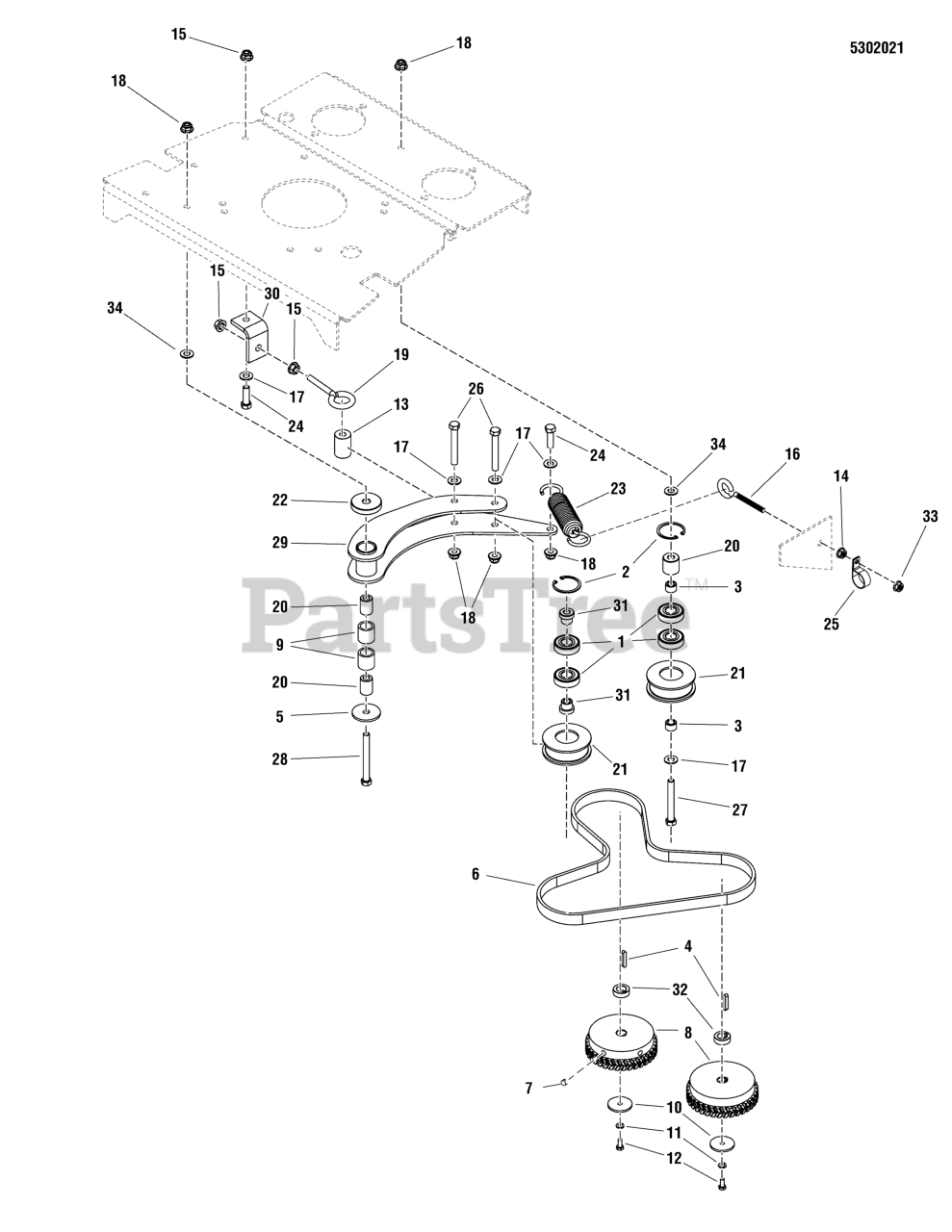

Pump Drive Group Parts Diagram

  • Title

1

Snapper Pro 1705897

BEARING, BALL 11/16X1-9/16X15/32
(Superseded to 1705897SM)

$8.49

$

In Stock, Qty 20+

0

2

Snapper Pro 5020865

SNAP RING, INTERNAL
(Superseded to 5020865FS)

$2.99

$

Usually ships in 2-12 days

0

3

Snapper Pro 5020880

INSERT, BEARING, 17MM X 12MM L
(Superseded to 5020880SM)

$12.99

$

Usually ships in 2-12 days

0

4

Snapper Pro 5023254

KEY, 5MM SQ. W/ RADIUS
(Superseded to 5023254SM)

$4.49

$

In Stock, Qty 11

0

5

Snapper Pro 5025305

WASHER, .41 X 1.75 X .14
(Superseded to 5025305SM)

$3.99

$

In Stock, Qty 10

0

6

Snapper Pro 5049238

BELT, SPROCKET DRIVE

$130.99

$

Usually ships in 2-12 days

0

7

Snapper Pro 5025531

SET SCREW, 5/16-18 X 3/8 PCH.
(Superseded to 5025531YP)

$3.49

$

In Stock, only 2 left!

0

8

Snapper Pro 5101520

SPROCKET, 44T X .591 BORE, EAGLE PD

$385.99

$

Usually ships in 2-12 days

0

9

Snapper Pro 5020876B

BUSHING, BRASS, 3/4 X 1 X 1
(Superseded to 5020876BSM)

$11.99

$

In Stock, only 4 left!

0

10

Snapper Pro 5044577

WASHER, .265 X 1.50 X .109, YZ
(Superseded to 5044577SM)

$3.99

$

Usually ships in 2-12 days

0

11

Snapper Pro 5025169

WASHER, 1/4 LOCK
(Superseded to 5025169FS)

$3.99

$

Usually ships in 2-12 days

0

12

Snapper Pro 5023215

CAPSCREW-HEX HEAD M6-1.0X 14MM
(Superseded to 5023215SM)

$3.99

$

Usually ships in 2-12 days

0

13

Snapper Pro 5101826

SPACER, .39 X 1.00 X 1.47, YZ
(Superseded to 5101826FS)

$10.99

$

Usually ships in 2-12 days

0

14

Snapper Pro 5025127

NUT, 5/16-18 HEX SERRATED FLANGE (SMALL)
(Superseded to 5025127SM)

$3.49

$

In Stock, Qty 7

0

15

Snapper Pro 5025128

NUT, 3/8-16 HEX SERRATED FLANGE
(Superseded to 5025128SM)

$3.49

$

Usually ships in 2-12 days

0

16

Snapper Pro 5025527

EYE BOLT, 5/16-18 X 2-3/4 THRD.

$11.99

$

Usually ships in 2-12 days

0

17

Snapper Pro 5025156

WASHER, 3/8 SAE
(Superseded to 5025156FS)

$3.49

$

Usually ships in 2-12 days

0

18

Snapper Pro 5025394

NUT, 3/8-16 HEX NYLOCK FLANGE
(Superseded to 5025394SM)

$4.49

$

In Stock, Qty 20+

0

19

Snapper Pro 5023497

EYE BOLT, 3/8-16 X 5, 2.88THRD, 1EYE, CZ
(Superseded to 5023497SM)

$9.49

$

In Stock, only 1 left!

0

20

Snapper Pro 5042658

SPACER, .39 X .75 X 1.06
(Superseded to 5042658SM)

$7.49

$

In Stock, Qty 6

0

21

Snapper Pro 5045140

PULLEY, BACKSIDE IDLER, STEEL
(Superseded to 5045140FS)

$99.99

$

Usually ships in 2-12 days

0

22

Snapper Pro 5045475

SPACER, .45 X 1.88 X .38
(Superseded to 5045475SM)

$14.99

$

Usually ships in 2-12 days

0

23

Snapper Pro 5100633

SPRING, EXTENSION, SWIVEL, SHORT HOOK
(Superseded to 5100633YP)

$34.99

$

Usually ships in 2-12 days

0

24

Snapper Pro 5025013X10

BOLT, 3/8-16 X 1-1/4" GD5 CZ
(Superseded to 5025013X10SM)

$3.99

$

In Stock, only 3 left!

0

25

Snapper Pro 5023173

CLAMP, HOSE, 1.000 DIA.
(Superseded to 5023173SM)

$3.99

$

Usually ships in 2-12 days

0

26

Snapper Pro 5025013X22

BOLT, 3/8-16 X 2-3/4" GD5 CZ
(Superseded to 5025013X22SM)

$4.49

$

Usually ships in 2-12 days

0

27

Snapper Pro 5025013X24

BOLT, 3/8-16 X 3" GD5 CZ
(Superseded to 5025013X24SM)

$3.99

$

In Stock, Qty 5

0

28

Snapper Pro 5025013X28

BOLT, 3/8-16 X 3-1/2" GD5 CZ
(Superseded to 5025013X28SM)

$4.99

$

Usually ships in 2-12 days

0

29

Snapper Pro 5405010D

WELD, IDLER ARM - RED

$

$

Currently unavailable

30

Snapper Pro 5404831D

MOUNT, ANCHOR - RED

$

$

Currently unavailable

31

Snapper Pro 5021879

INSERT, BEARING
(Superseded to 5021879FS)

$16.99

$

Usually ships in 2-12 days

0

32

Snapper Pro 5101862

BUSHING, 15MM X 25MM X 8.6MM - KEYED
(Superseded to 5101862FS)

$12.99

$

Usually ships in 2-12 days

0

33

Snapper Pro 5025392

NUT, 5/16-18 HEX NYLOCK FLANGE
(Superseded to 5025392FS)

$3.49

$

Usually ships in 2-12 days

0

34

Snapper Pro 5100548

WASHER, .390 X 1.50 X .109, YZ
(Superseded to 5100548SM)

$4.49

$

In Stock, only 1 left!

0
