FB 1000CE - Ferris Hurricane Series Ride-On Blower Deflector Control Group Parts Diagram

Hurricane Series Ride-On Blower

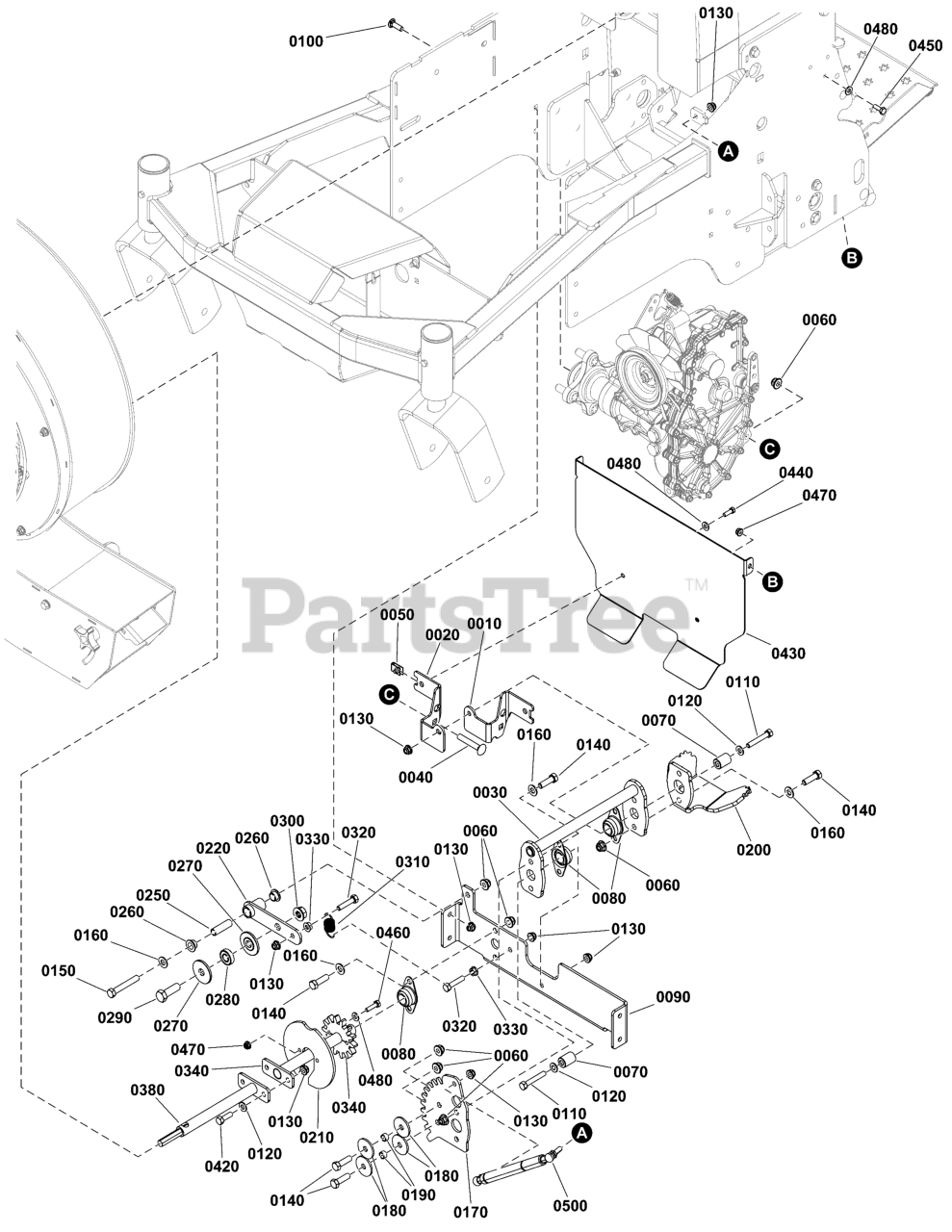

Deflector Control Group Parts Diagram

  • Title

0010

Ferris 5421771AA

PLATE, TOE KICK MOUNT, LH ,FB1000 - BLK
(Superseded to 5421771AAFS)

$10.99

$

Usually ships in 2-12 days

0

0020

Ferris 5421772AA

PLATE, TOE KICK MOUNT, RH, FB1000 - BLK
(Superseded to 5421772AAFS)

$11.99

$

Usually ships in 2-12 days

0

0030

Ferris 5421775AA

WELD, FOOT DEFLECTOR SHAFT - BLK
(Superseded to 5421775AAFS)

$61.99

$

Usually ships in 2-12 days

0

0040

Ferris 7900009

RHSSNB, 3/8-16 X 2-1/4, GR5
(Superseded to 7900009SM)

$3.99

$

In Stock, Qty 10

0

0050

Ferris 5022665

BODY CLIP, 1/4-20 X 1/2" DEEP
(Superseded to 5022665SM)

$3.49

$

Usually ships in 2-12 days

0

0060

Ferris 5025394

NUT, 3/8 - 16 HEX NYLOCK FLANGE
(Superseded to 5025394SM)

$4.49

$

In Stock, Qty 20+

0

0070

Ferris 5042134

SPACER, .32 X .75 X 1.06, PM
(Superseded to 5042134SM)

$6.49

$

Usually ships in 2-12 days

0

0080

Ferris 5021098

BEARING, BRONZE FLANGE, 3/4"
(Superseded to 5021098SM)

$13.99

$

In Stock, Qty 5

0

0090

Ferris 5421674AA

PLATE, BRNG MOUNT, FB1000 - BLK
(Superseded to 5421674AAFS)

$38.99

$

Usually ships in 2-12 days

0

0100

Ferris 5025145X8

BOLT, 5/16-18 X 1, CARRIAGE, GD5, CZ
(Superseded to 5025145X8SM)

$3.99

$

In Stock, Qty 9

0

0110

Ferris 5025011X16

BOLT, 5/16-18 X 2" GD5 YZ
(Superseded to 5025011X16YP)

$3.99

$

Usually ships in 2-12 days

0

0120

Ferris 5025155

WASHER, 5/16" SAE

$

$

Currently unavailable

0130

Ferris 5025392

NUT, 5/16-18 HEX NYLOCK FLANGE NUT
(Superseded to 5025392FS)

$3.49

$

Usually ships in 2-12 days

0

0140

Ferris 5025013X10

BOLT, 3/8-16 X 1-1/4" GD5 CZ
(Superseded to 5025013X10SM)

$3.99

$

In Stock, only 3 left!

0

0150

Ferris 5025013X20

BOLT, 3/8-16 X 2-1/2" GD5 CZ
(Superseded to 84007037)

$2.99

$

Usually ships in 2-12 days

0

0160

Ferris 5025156

WASHER, 3/8 SAE
(Superseded to 5025156FS)

$3.49

$

Usually ships in 2-12 days

0

0170

Ferris 5421533AA

PLATE, SPUR GEAR BIG, FB1000 - BLK
(Superseded to 5421533AAFS)

$11.99

$

Usually ships in 2-12 days

0

0180

Ferris 5100548

WASHER, .390 X 1.50 X .109, YZ
(Superseded to 5100548SM)

$4.49

$

In Stock, only 1 left!

0

0190

Ferris 5041930

SPACER, .38 X .50 X .27, CZ
(Superseded to 5041930SM)

$4.99

$

Usually ships in 2-12 days

0

0200

Ferris 5421774A

PLATE, FOOT PEDAL, FB1000 - BLK
(Superseded to 5421774AFS)

$24.99

$

Usually ships in 2-12 days

0

0210

Ferris 5421792AA

PLATE, GEAR & DETENT GUIDE, FB1000 - BLK
(Superseded to 5421792AAFS)

$9.99

$

Usually ships in 2-12 days

0

0220

Ferris 5421658AA

WELD, FOOT DEFLECTOR ARM, FB1000 - BLK
(Superseded to 5421658AAFS)

$26.99

$

Usually ships in 2-12 days

0

0250

Ferris 5107740

SPACER, .38 X .50 X 1.63, CZ
(Superseded to 5107740FS)

$2.99

$

Usually ships in 2-12 days

0

0260

Ferris 5107741

BUSHING, IGUS, .50ID X .63OD X .38
(Superseded to 5107741FS)

$2.49

$

Usually ships in 2-12 days

0

0270

Ferris 5103262

SPACER, IDLER ARM, 1/2, PM
(Superseded to 5103262YP)

$7.99

$

In Stock, only 2 left!

0

0280

Ferris 7078243

BEARING, BALL, AXLE
(Superseded to 7078243YP)

$10.99

$

In Stock, only 2 left!

0

0290

Ferris 5025017X12

BOLT, 1/2-13 X 1-1/2 GD5 CZ
(Superseded to 5025017X12YP)

$3.99

$

In Stock, only 1 left!

0

0300

Ferris 5025396

NUT, Hex Flange, Nylock, 1/2-13
(Superseded to 770225)

$3.49

$

In Stock, Qty 20+

0

0310

Ferris 5010213

SPRING-EXT, .740 ODX2.025LGX.072WR, BLK
(Superseded to 5010213YP)

$14.99

$

Usually ships in 2-12 days

0

0320

Ferris 5025011X12

BOLT, 5/16-18 X 1-1/2" GD5 YZ
(Superseded to 5025011X12SM)

$3.99

$

Usually ships in 2-12 days

0

0330

Ferris 5025127

NUT, 5/16-18 HEX SERRATED FLANGE (SMALL)
(Superseded to 5025127SM)

$3.49

$

In Stock, Qty 7

0

0340

Ferris 5421791AA

WELD, DEFLECTOR CTRL, REAR,FB1000 - BLK
(Superseded to 5421791AAFS)

$46.99

$

Usually ships in 2-12 days

0

0380

Ferris 5421790AA

WELD, DEFLECTOR CTRL, FRONT,FB1000 - BLK
(Superseded to 5421790AAFS)

$86.99

$

Usually ships in 2-12 days

0

0420

Ferris 5025011X8

BOLT, 5/16-18 X 1" GRD5 YZ
(Superseded to 5025011X8FS)

$3.49

$

Usually ships in 2-12 days

0

0430

Ferris 5420561B

PLATE, TOE KICK, FB1000 - RED

$

$

Currently unavailable

0440

HHCS, 1/4-20 X 0.625, GR5, ZINC/CLEAR

$

$

Not available

0450

Ferris 5025010X6

BOLT, 1/4"-20 X 3/4" GD5 YZ
(Superseded to 5025010X6SM)

$3.99

$

In Stock, Qty 13

0

0460

Ferris 5025010X8

BOLT, 1/4-20 X 1" GD5 CZ
(Superseded to 5025010X8SM)

$3.99

$

In Stock, only 4 left!

0

0470

Ferris 5025391

NUT, 1/4-20 Hex Nylock Flange
(Superseded to 5025391FS)

$3.99

$

In Stock, only 2 left!

0

0480

Ferris 5025154

WASHER, 1/4 SAE
(Superseded to 84007033)

$4.49

$

Usually ships in 2-12 days

0

0500

Ferris 5109913

DAMPENER, ANFAN, METAL ENDS
(Superseded to 5109913FS)

$25.99

$

Usually ships in 2-12 days

0
