FS 5250 (5901756) - Ferris Voyager Series Stand-On Spreader Hopper Support Group Parts Diagram

Voyager Series Stand-On Spreader

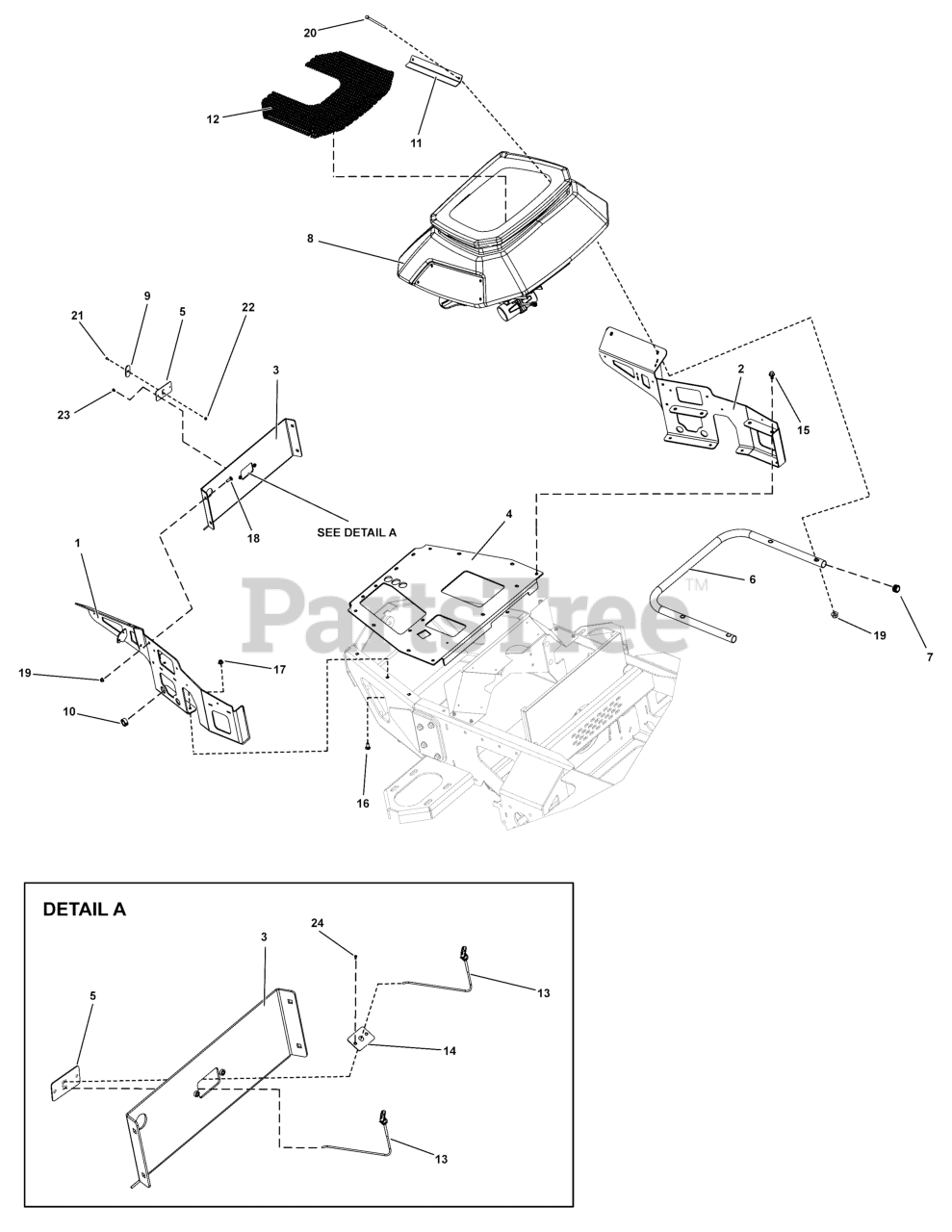

Hopper Support Group Parts Diagram

  • Title

1

Ferris 5418991

WELD, LH HOPPER SUPPORT

$681.99

$

Usually ships in 2-12 days

0

2

Ferris 5418992

WELD, RH HOPPER SUPPORT

$652.99

$

Usually ships in 2-12 days

0

3

Ferris 5418998

BRACE, FRONT

$71.99

$

Usually ships in 2-12 days

0

4

Ferris 5418990

PLATE, FORWARD COMPONENT ORG

$367.99

$

Usually ships in 2-12 days

0

5

Ferris 5419900

PLATE, HOPPER CABLES

$7.99

$

Usually ships in 2-12 days

0

6

Ferris 5420342

TUBE, MOUNT LIGHT BAR - PAINTED

$36.99

$

Usually ships in 2-12 days

0

7

Ferris 5108817

PLUG TUBE INSERT 1.25" O.D.

$2.49

$

Usually ships in 2-12 days

0

8

Refer to: Hopper Group

$

$

Not available

9

Ferris 5105969

PLATE, CABLE HOLDER

$8.49

$

Usually ships in 2-12 days

0

10

Ferris 5108598

BUSHING, SNAP 1" ID

$2.49

$

Usually ships in 2-12 days

0

11

Ferris 5418973

BRACKET, SCREEN SUPPORT HOPPER

$18.99

$

Usually ships in 2-12 days

0

12

Ferris 5108250

SCREEN, HOPPER FS5250

$130.99

$

Usually ships in 2-12 days

0

13

Ferris 5108507

CABLE, TURN-TO-LOCK 35" LONG

$78.99

$

Usually ships in 2-12 days

0

14

Ferris 5420019

PLATE, HOPPER CONTROL VOYAGER

$16.99

$

Usually ships in 2-12 days

0

15

Ferris 5107703

SCR-CAP, HSWH .375"-16 X .750" SS188

$2.49

$

Usually ships in 2-12 days

0

16

Ferris 5107639

BLT-RDHDSQNK, .375"-16 X 1.000" SS188

$2.49

$

Usually ships in 2-12 days

0

17

Ferris 5107638

NUT-HEX-NYLK, FLG .375"-16 SS188

$3.99

$

Usually ships in 2-12 days

0

18

Ferris 5107645

BLT-RDHDSQNK, .3125"-18 X 1.000" SS188

$2.49

$

Usually ships in 2-12 days

0

19

Ferris 5107653

NUT-HEX-NYLK, FLG .3125"-18 SS188

$3.49

$

Usually ships in 2-12 days

0

20

Ferris 5106056

SCR-CAP, HEX .3125"-18 X 2.250" SS188

Note: (Used if 5418973 has round holes.)

$3.49

$

Usually ships in 2-12 days

0

20

Ferris 5109263

BLT-RDHDSQNK, .3125"-18 X 2.250" SS188

Note: (Used if 5418973 has square holes.)

$1.49

$

Usually ships in 2-12 days

0

21

Ferris 5105978

SCR-CAP, BSH #10-24 X .500" SS188

$3.49

$

Usually ships in 2-12 days

0

22

Ferris 5105963

NUT-HEX-NYLK, #10-24 SS188
(Superseded to 5105963FS)

$2.49

$

Usually ships in 2-12 days

0

23

Ferris 5108320

SCR-CAP, SBH .250"-20 X .375" SS188

$2.49

$

Usually ships in 2-12 days

0

24

Ferris 5108207

SCR-CAP, SBH .250-20 X .750" SS188

$2.49

$

Usually ships in 2-12 days

0
