L - Simplicity Two-Wheeled Tractor, 1.5hp Tractor Group (3739I03) Parts Diagram

Two-Wheeled Tractor, 1.5hp

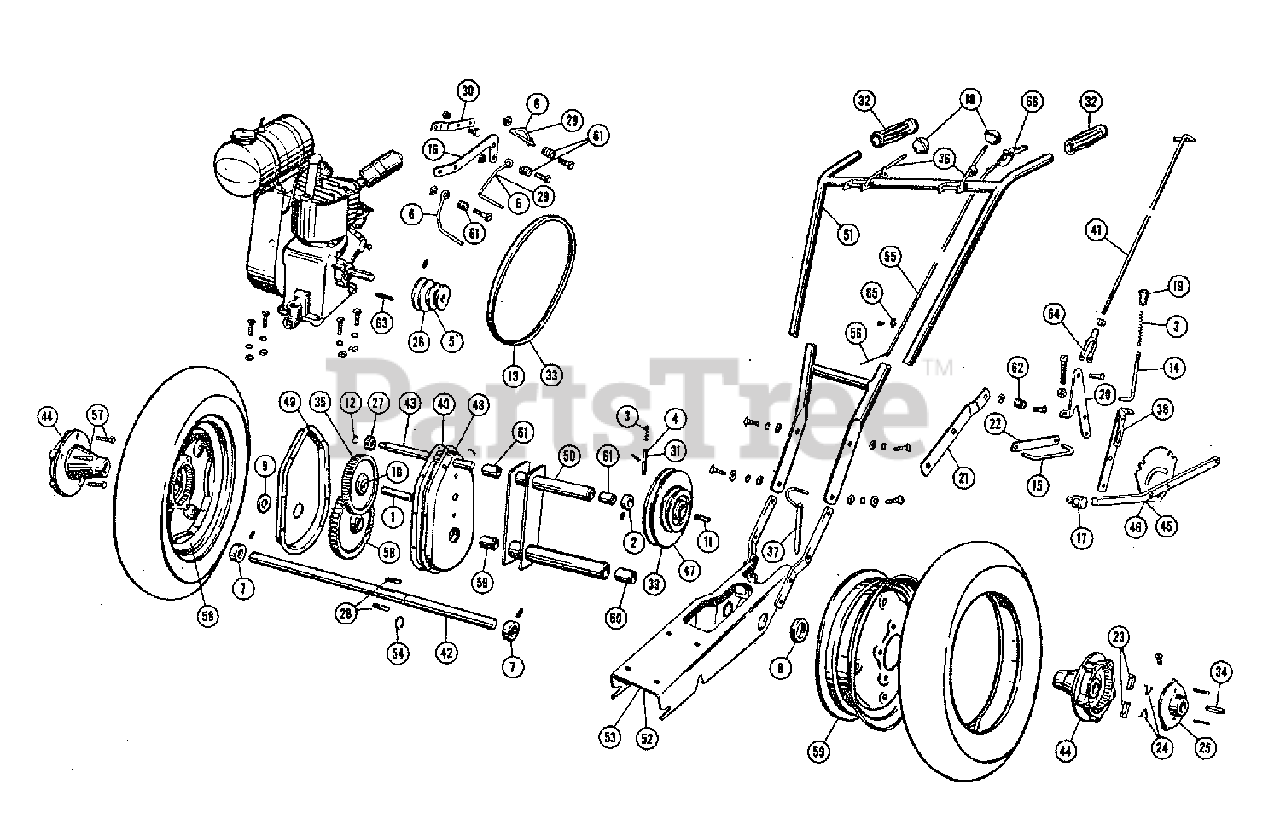

Tractor Group (3739I03) Parts Diagram

  • Title
1

Simplicity D-A9

SPINDLE, Intermediate

$

$

Not available

2

Simplicity D-A10

COLLAR, Set (Pulley Shaft)

$

$

Not available

3

Simplicity D-A11

SPRING, Transmission Sheave

$

$

Not available

4

Simplicity D-A12

PIN, Transmission Sheave, 1-1/2 HP

$

$

Not available

5

Simplicity D-A13

PULLEY, Engine, 1-1/2 HP

$

$

Not available

6

Simplicity D-A14

STOP, Belt

$

$

Not available

7

Simplicity D-A28

COLLAR, Set (Axle)

$

$

Not available

8

Simplicity D-A29

COLLAR, Set (Axle Housing)

$

$

Not available

9

$

$

Not available

10

Simplicity D-A32

BUSHING, Intermediate

$

$

Not available

11

Simplicity D-A33

KEY, Transmission Sheave

$

$

Not available

12

Simplicity D-A35

RING, Retaining

$

$

Not available

13

Simplicity D-A36

BELT, Transmission, 1-1/2 HP

$

$

Not available

14

$

$

Not available

15

Simplicity D-A42

LINK, Throw-Out

$

$

Not available

16

Simplicity D-A48A

HOLDER, Belt Stop

$

$

Not available

17

Simplicity D-A49

SLIDE, Throw-Out

$

$

Not available

18

Simplicity D-A50

BALL, Clutch Lever

$

$

Not available

19

Simplicity D-A51

KNOB, Plunger

$

$

Not available

20

Simplicity D-A57

CLUTCH LEVER, Lower

$

$

Not available

21

Simplicity D-A58

FRAME, Extension

$

$

Not available

22

Simplicity D-A59

STRAP, Throw-Out

$

$

Not available

23

Simplicity D-A59

RATCHET DOG, Right or Left

$

$

Not available

24

Simplicity D-A61

SPRING, Ratchet

$

$

Not available

25

Simplicity D-A62

RATCHET CAGE, Right or Left

$

$

Not available

26

Simplicity D-A63

ENGINE PULLEY, 3hp

$

$

Not available

27

Simplicity D-A64

PINION, Reduction

$

$

Not available

28

Simplicity D-A66

KEY, Axle

$

$

Not available

29

Simplicity D-A68

BELT STOP, 3HP

$

$

Not available

30

Simplicity D-A73

BRACKET, Belt Holder, 3HP

$

$

Not available

31

Simplicity D-A74

PIN, Transmission Sheave, 3HP

$

$

Not available

32

Simplicity D-A75

GRIP, Rubber

$

$

Not available

33

Simplicity DA-76

BELT, Transmission, 39", 3HP

$

$

Not available

34

Simplicity D-A77

KEY, Ratchet Cage

$

$

Not available

35

Simplicity D-A78

GEAR ASSEMBLY, Cluster

$

$

Not available

36

Simplicity D-AX3

LEVER ASSEMBLY, Clutch

$

$

Not available

37

Simplicity D-AX4A

PIN ASSEMBLY, Draw Bar

$

$

Not available

38

Simplicity D-AX5

LEVER ASSEMBLY, Shift

$

$

Not available

39

Simplicity D-AX6

TRANSMISSION SHEAVE, 1-1/2 HP

$

$

Not available

40

Simplicity D-B1

GASKET, Gear Case

$

$

Not available

41

Simplicity D-B8

ROD, Clutch

$

$

Not available

$

$

Not available

43

Simplicity D-B16

SHAFT, Pulley

$

$

Not available

44

Simplicity D-B17

HUB, Wheel

$

$

Not available

45

Simplicity D-B21

THROW-OUT ASSEMBLY

$

$

Not available

46

Simplicity D-BX2

THROW-OUT ASSEMBLY

$

$

Not available

47

Simplicity D-BX3

TRANSMISSION PULLEY ASSEMBLY

$

$

Not available

48

Simplicity D-BX4

GEAR CASE

$

$

Not available

49

Simplicity D-C1

COVER, Gear Case

$

$

Not available

50

Simplicity D-C2

HOUSING ASSEMBLY, Bearing

$

$

Not available

51

Simplicity D-CX2A

HANDLE ASSEMBLY

$

$

Not available

52

Simplicity D-CX4A

FRAME ASSEMBLY, 1-1/2 HP

$

$

Not available

53

Simplicity D-CX5

FRAME ASSEMBLY, 3 HP

$

$

Not available

54

Simplicity D-CX6

RING, Retaining

$

$

Not available

55

Simplicity SSA32

WIRE HOUSING, Throttle

$

$

Not available

56

Simplicity SSA85B

WIRE, Throttle Control

$

$

Not available

57

Simplicity SSA86B

BOLTS, Hub

$

$

Not available

58

Simplicity SSA100

DRIVE GEAR

$

$

Not available

59

$

$

Not available

60

Simplicity SSB23A

BUSHING, Axle

$

$

Not available

61

Simplicity SSA43

BUSHING, Pulley Shaft

$

$

Not available

62

$

$

Not available

63

Simplicity SSA47

KEY, Engine Pulley

$

$

Not available

64

Simplicity SSA104

END ASSEMBLY, Rod

$

$

Not available

65

Simplicity SSA71

CLAMP, Cable

$

$

Not available

66

Simplicity 8061041

LEVER ASSEMBLY, Throttle

$

$

Not available

67

FITTING, Grease, #1641

$

$
