SS 200 (5901860) - Snapper Pro SS200 Series 61" Stand-On Mower, 28hp Briggs & Stratton Hydraulic Group - Hoses & Loom Parts Diagram

SS200 Series 61" Stand-On Mower, 28hp Briggs & Stratton

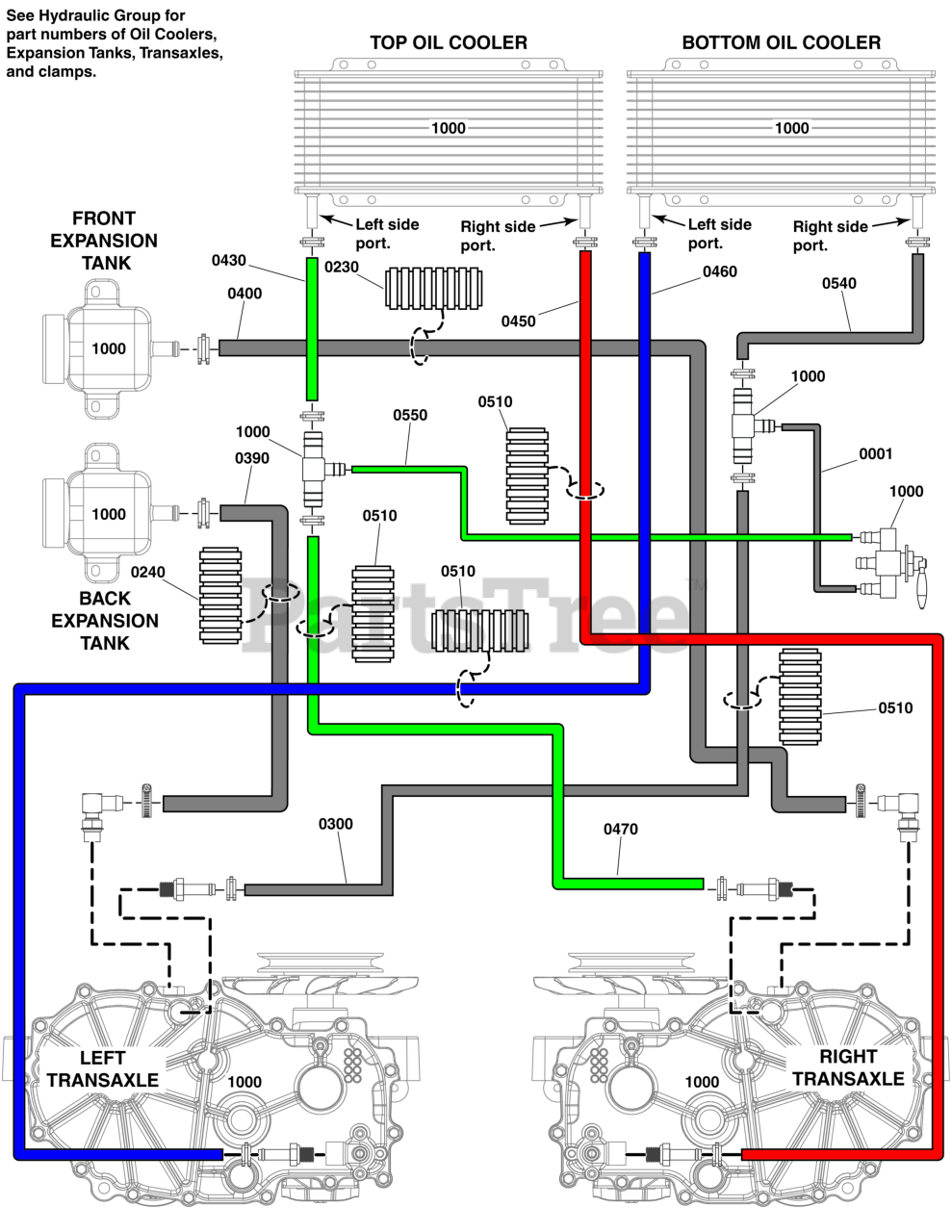

Hydraulic Group - Hoses & Loom Parts Diagram

  • Title

0001

Snapper Pro 84008549

HOSE, Hydraulic, 1/4 X 13", Green

Note: (Grey)

$

$

Currently unavailable

0230

Snapper Pro 5100384X18

LOOM, CONVOLUTED SPLIT, 1 ID - 18 LONG

$

$

Currently unavailable

0240

Snapper Pro 5100384X24

LOOM, CONVOLUTED SPLIT, 1 ID - 24 LONG
(Superseded to 5100384X24FS)

$4.49

$

Usually ships in 2-12 days

0

0300

Snapper Pro 5050860X37

HOSE, 3/8" PUSH-LOCK, 37.00"
(Superseded to 5050860X37FS)

Note: (Grey)(Routes through opening in right side of frame.)

$31.99

$

Usually ships in 2-12 days

0

0390

Snapper Pro 5050857X36

HOSE, 1/2" PUSH-ON, 36.00"
(Superseded to 5050857X36FS)

Note: (Grey)(Routes through opening in right side of frame.)

$40.99

$

Usually ships in 2-12 days

0

0400

Snapper Pro 5050857X33P5

HOSE, 1/2" PUSH-ON, 33.50"
(Superseded to 5050857X33P5FS)

Note: (Grey)(Routes through opening in right side of frame.)

$37.99

$

Usually ships in 2-12 days

0

0430

Snapper Pro 84008550

HOSE, Hydraulic, 3/8 X 2.50", Green

Note: (Green)

$

$

Currently unavailable

0450

Snapper Pro 5108539X46

HOSE, 3/8" PUSH-LOCK, RED 46.00
(Superseded to 5108539X46FS)

Note: (Red)(Routes through opening in right side of frame.)

$31.99

$

Usually ships in 2-12 days

0

0460

Snapper Pro 5108540X47

HOSE, 3/8" PUSH-LOCK, BLUE 47.00
(Superseded to 5108540X47FS)

Note: (Blue)(Routes through opening in left side of frame.)

$32.99

$

Usually ships in 2-12 days

0

0470

Snapper Pro 5108541X42

HOSE, 3/8" PUSH-LOCK, GREEN 42
(Superseded to 5108541X42FS)

Note: (Green)(Routes through opening in left side of frame.)

$41.99

$

Usually ships in 2-12 days

0

0510

Snapper Pro 5050861X28

WIRE LOOM, 5/8 ID X 28 IN

$

$

Currently unavailable

0540

Snapper Pro 84008551

HOSE, Hydraulic, 3/8 X 5.00", Gray

Note: (Grey)

$

$

Currently unavailable

0550

Snapper Pro 5108747X20P5

HOSE, 1/4" PUSH-LOCK, GREEN 20.5

Note: (Green)

$

$

Currently unavailable

1000

Refer to: Hydraulic Group

$

$

Not available
