TM4000x51A - Murray Walk-Behind Trimmer (2001) Trimmer Head Assembly Parts Diagram

Walk-Behind Trimmer

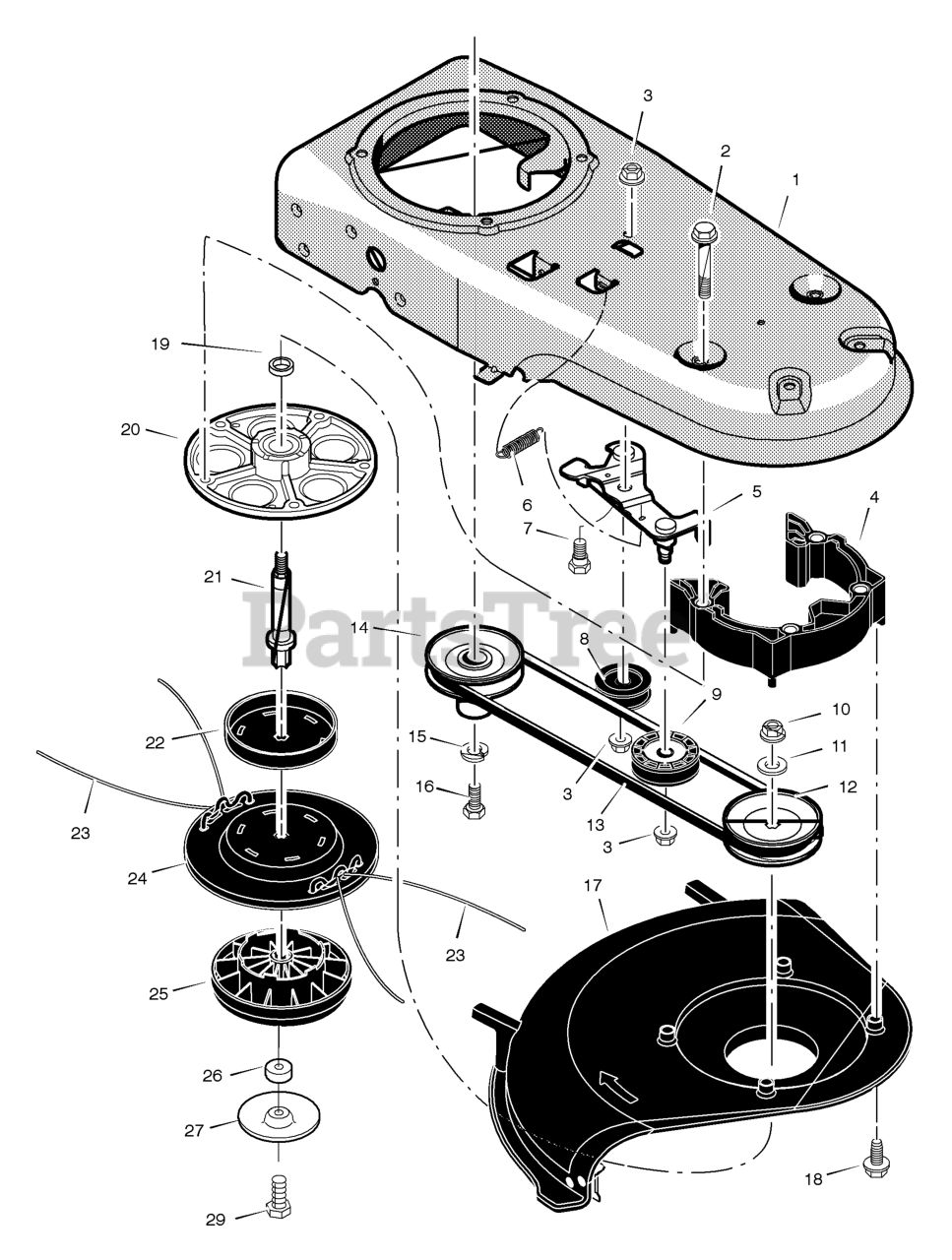

Trimmer Head Assembly Parts Diagram

  • Title

1

Murray 740260-860

Frame, Trimmer

$

$

Currently unavailable

2

Murray 711978MA

Bolt
(Superseded to 025X11MA)

$6.99

$

Usually ships in 2-12 days

0

3

Murray 015X84MA

Nut
(Superseded to 703893)

$6.99

$

In Stock, only 2 left!

0

4

Murray 740292MA

Spacer Assembly, Jackshaft

$29.99

$

Usually ships in 2-12 days

0

5

Murray 740232

Bracket, Idler Asembly

$

$

Not available

6

Murray 712403MA

Spring

$13.99

$

In Stock, only 1 left!

0

7

Murray 710200

Bolt, Shoulder

$7.99

$

Usually ships in 2-12 days

0

8

Murray 740183MA

Pulley, Idler

$

$

Not available

9

Murray 740244MA

PULLEY, IDLER, V, 1.88

$39.99

$

Usually ships in 2-12 days

0

10

Murray 15X119

Nut

$3.49

$

Usually ships in 2-12 days

0

11

Murray 710083

Washer

$12.99

$

In Stock, only 3 left!

0

12

Murray 740266

Pulley, Cutting Head

$7.49

$

Usually ships in 2-12 days

0

13

Murray 740259MA

Belt

$24.99

$

Usually ships in 2-12 days

0

14

Murray 740179MA

Pulley, Drive

$

$

Not available

15

Murray 712147

Washer

$

$

Currently unavailable

16

Murray 712146

Bolt

$1.99

$

Usually ships in 2-12 days

0

17

Murray 740262MA

Shield, Trimmer

$49.99

$

Usually ships in 2-12 days

0

18

Murray 710269

Bolt

$

$

Not available

19

Murray 740173

Spacer

$

$

Not available

20

Murray 1001049

Housing, Jackshaft

$51.99

$

In Stock, Qty 14

0

21

Murray 740264MA

Jackshaft

$10.99

$

Usually ships in 2-12 days

0

22

Murray 740267MA

Shield, Weed

$42.99

$

Usually ships in 2-12 days

0

23

Murray 7701012MA

Line, 0.130" x 16.75 (24 pack)

$14.99

$

Usually ships in 2-12 days

0

24

Murray 740271E276

Head, Cutting

$

$

Currently unavailable

25

Murray 740268MA

Guide, Height

$18.99

$

Usually ships in 2-12 days

0

26

Murray 1601027

Spacer

$

$

Currently unavailable

27

Murray 710256MA

Washer
(Superseded to 703332)

$4.49

$

In Stock, only 4 left!

0

29

Murray 01X179

Bolt

$

$

Currently unavailable
