0060231 - Generac 2,700 PSI Pressure Washer, CARB (SN: 8683348 - 8683472) (2014) Crankcase Parts Diagram

2700 PSI Pressure Washer, CARB

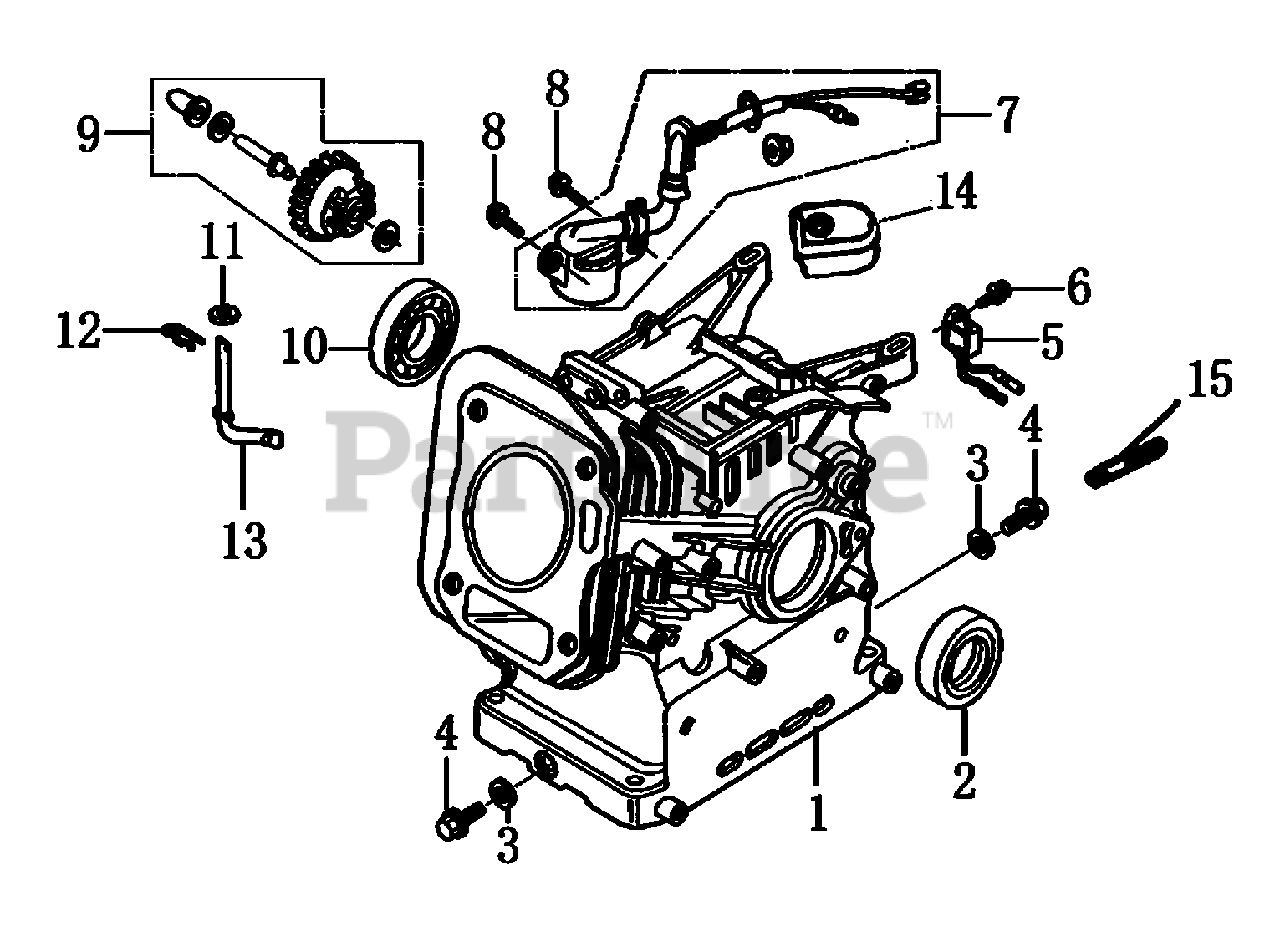

Crankcase Parts Diagram

  • Title

1

Generac 0J88870109

CRANK CASE

$

$

Currently unavailable

2

Generac 0J35220166

OIL SEAL 25X41.25X6

$13.99

$

Usually ships in 2-12 days

0

3

Generac 0J35220164

WASHER, DRAIN PLUG

$41.99

$

In Stock, Qty 9

0

4

Generac 0J35220111

BOLT, DRAIN PLUG

$4.99

$

Usually ships in 2-12 days

0

5

Generac 0G84420112

ALERT UNIT, LOW OIL

$15.99

$

In Stock, only 2 left!

0

6

Generac 0J35220157

BOLT, FLANGE , 6X10

$0.99

$

In Stock, Qty 7

0

7

Generac 0J35220154

OIL LEVEL SWITCH

$18.99

$

Usually ships in 2-12 days

0

8

Generac 0G84420217

BOLT, FLANGE , 6*14

$1.99

$

In Stock, Qty 7

0

9

Generac 0J88870110

GOVERNOR GEAR ASSY.

$14.99

$

Usually ships in 2-12 days

0

10

Generac 0J47870117

BEARING, RADIAL BALL

$15.99

$

Usually ships in 2-12 days

0

11

Generac 0J47870118

WASHER, PLAIN

$0.99

$

Usually ships in 2-12 days

0

12

Generac 0G84420219

PIN, LOCK

$0.99

$

Usually ships in 2-12 days

0

13

Generac 0J47870119

SHAFT, GOVERNOR ARM

$5.49

$

Usually ships in 2-12 days

0

14

Generac 0J88870133

COVER, WIRE

$

$

Currently unavailable

15

Generac 0K10460111

CABLE CLEAT

$1.49

$

Usually ships in 2-12 days

0
