020217-0 - Craftsman 2,450 PSI Pressure Washer Main Unit Parts Diagram

2,450 PSI Pressure Washer

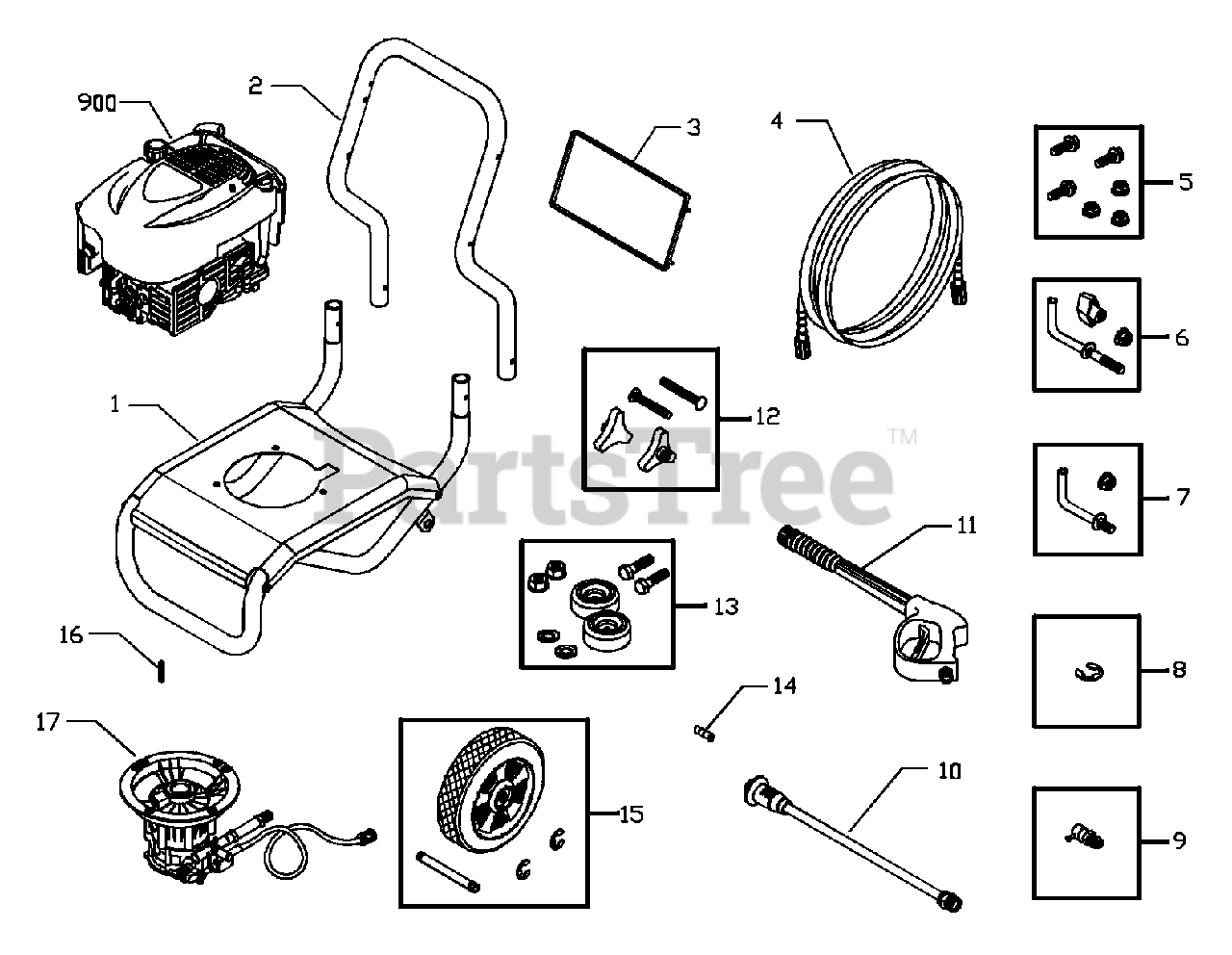

Main Unit Parts Diagram

  • Title

1

Briggs & Stratton 192392GS

BASE

$129.99

$

Usually ships in 2-12 days

0

2

Briggs & Stratton E194719GS

HANDLE

$99.99

$

Usually ships in 2-12 days

0

3

Briggs & Stratton 194642GS

ASSY, Billboard

$49.99

$

Usually ships in 2-12 days

0

4

Briggs & Stratton 190249GS

HOSE
(Superseded to 708962)

$

$

Not available

5

Briggs & Stratton 192645GS

KIT, Pump Mounting Hardware

$9.99

$

Usually ships in 2-12 days

0

6

Briggs & Stratton 194264GS

KIT, Hook, Handle

$5.49

$

In Stock, only 1 left!

0

7

Briggs & Stratton 192309GS

KIT, Hook, Base

$4.49

$

Usually ships in 2-12 days

0

8

Briggs & Stratton 192050GS

KIT, E-Ring
(Superseded to 703976)

$4.49

$

In Stock, Qty 20+

0

9

Briggs & Stratton 194298GS

VALVE, Thermal Relief
(Superseded to 208673GS)

$14.99

$

In Stock, Qty 13

0

10

Briggs & Stratton 188792HGS

WAND, Adjustable Nozzle
(Superseded to 205015CGS)

$67.99

$

In Stock, only 3 left!

0

11

Briggs & Stratton 193482GS

GUN
(Superseded to 708807)

$74.99

$

Usually ships in 2-12 days

0

12

Briggs & Stratton B2203GS

KIT, Handle Connector

$5.49

$

In Stock, only 2 left!

0

13

Briggs & Stratton 192310GS

KIT, Vibration Mount

$9.99

$

In Stock, only 4 left!

0

14

Briggs & Stratton 21760GS

ORIFICE

$9.99

$

Usually ships in 2-12 days

0

15

Briggs & Stratton 194255GS

KIT, Wheel

$17.99

$

Usually ships in 2-12 days

0

16

Briggs & Stratton 23139GS

KEY

$4.49

$

Usually ships in 2-12 days

0

17

Briggs & Stratton 194258GS

ASSY, Pump
(Superseded to 207365GS)

Note: (see "Pump")

$234.99

$

In Stock, only 1 left!

0

900

NSP

ENGINE

$

$

Not available

Briggs & Stratton 194646GS

MANUAL, Owner's

Note: Not Illustrated

$14.99

$

Usually ships in 2-12 days

0

Briggs & Stratton 194256GS

KIT, Tag Warning
(Superseded to 705752)

Note: Not Illustrated

$3.99

$

Usually ships in 2-12 days

0

Briggs & Stratton AB3061BGS

OIL, Bottle

Note: Not Illustrated

$

$

Not available

Briggs & Stratton 7175187GS

Garden Hose Quick Connect

Note: Optional Accessory Not Illustrated

$17.99

$

In Stock, only 1 left!

0

Briggs & Stratton 7175197GS

Accessory Quick Connect
(Superseded to 312981GS)

Note: Optional Accessory Not Illustrated

$39.99

$

Usually ships in 2-12 days

0

Briggs & Stratton 7175199GS

Rotating Brush Kit

Note: Optional Accessory Not Illustrated

$82.99

$

Usually ships in 2-12 days

0

Briggs & Stratton 190249GS

25' Replacement Hose
(Superseded to 708962)

Note: Optional Accessory Not Illustrated

$

$

Not available

Briggs & Stratton 7175116GS

O Ring Repair Kit
(Superseded to 196002GS)

Note: Optional Accessory Not Illustrated

$18.99

$

In Stock, only 4 left!

0

Briggs & Stratton 7174400GS

Turbo Nozzle

Note: Optional Accessory Not Illustrated

$52.99

$

Usually ships in 2-12 days

0

Briggs & Stratton B3635GS

HOSE, 4000PSI, 3/8" x 25'
(Superseded to 206192GS)

Note: Optional Accessory Not Illustrated

$103.99

$

In Stock, only 2 left!

0

Briggs & Stratton 7174402GS

Hose Reel
(Superseded to 192648GS)

Note: Optional Accessory Not Illustrated

$74.99

$

Usually ships in 2-12 days

0

Briggs & Stratton 7174403GS

Pump Saver
(Superseded to 6151)

Note: Optional Accessory Not Illustrated

$21.99

$

In Stock, only 2 left!

0

Briggs & Stratton 7174300GS

House Wash Concentrate (makes 4 gallons)
(Superseded to 6159)

Note: Optional Accessory Not Illustrated

$9.99

$

Usually ships in 2-12 days

0

Briggs & Stratton 7174301GS

Deck Wash Concentrate (makes 2 gallons)
(Superseded to 100524GS)

Note: Optional Accessory Not Illustrated

$21.99

$

Usually ships in 2-12 days

0

Briggs & Stratton 7174302GS

Vehicle/Boat Wash Concentrate (makes 4 gallons)
(Superseded to 6160)

Note: Optional Accessory Not Illustrated

$

$

Not available

Briggs & Stratton 7174303GS

Degreaser Concentrate (makes 4 gallons)
(Superseded to 100526GS)

Note: Optional Accessory Not Illustrated

$18.99

$

Usually ships in 2-12 days

0

Briggs & Stratton 7174307GS

Mold/Mildew Concentrate (makes 2 gallons)
(Superseded to 6160)

Note: Optional Accessory Not Illustrated

$

$

Not available
