030429-0 - Troy-Bilt 5,500 Watt Portable Generator Alternator Parts Diagram

5,500 Watt Portable Generator

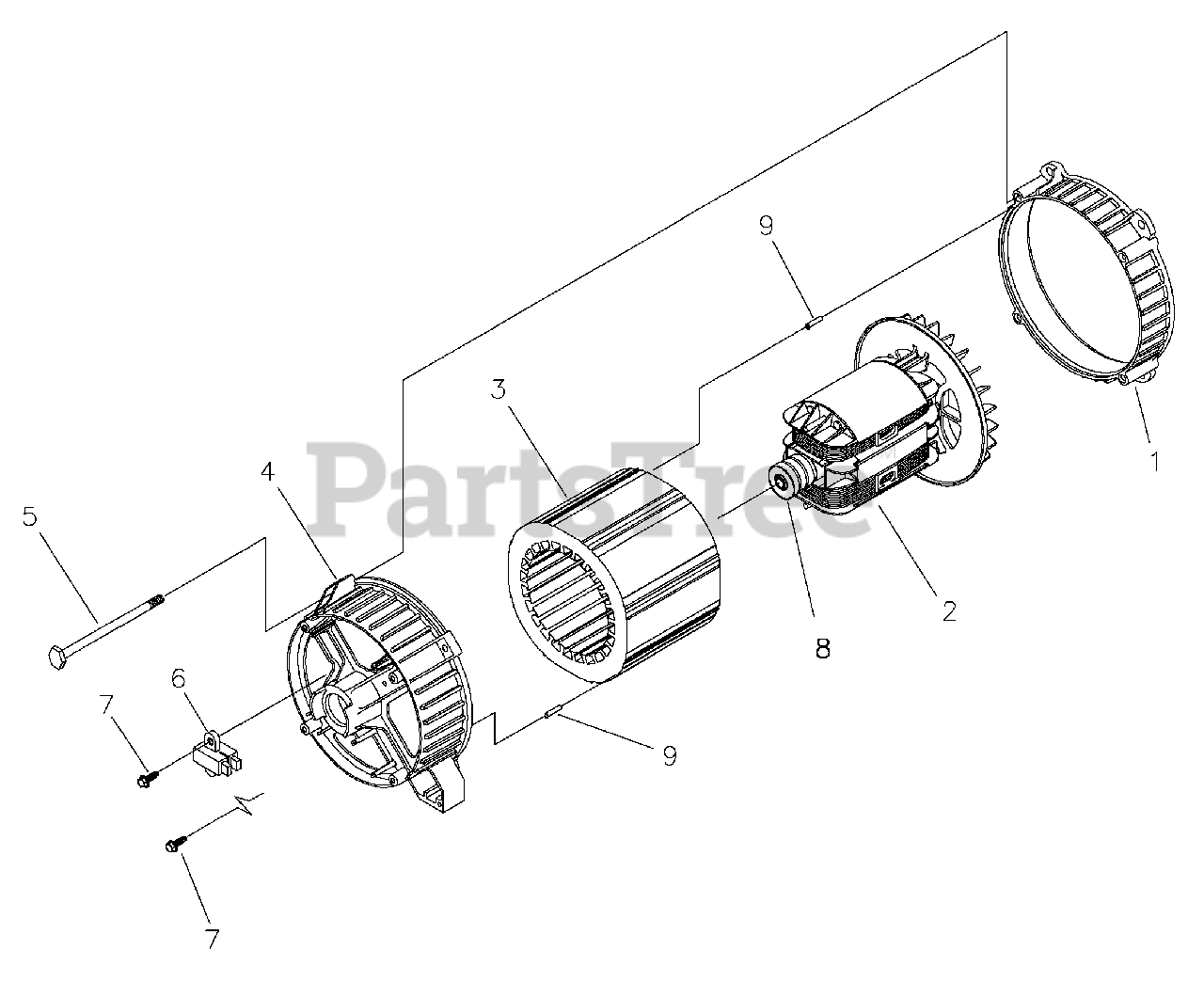

Alternator Parts Diagram

  • Title

1

Briggs & Stratton 186059GS

Adapter, Mounting, Alternator
(Superseded to 209599GS)

$35.99

$

In Stock, only 1 left!

0

2

Briggs & Stratton 190032GS

Assy., Rotor

Note: (Includes Item 8)

$426.99

$

In Stock, only 2 left!

0

3

Briggs & Stratton 206562GS

Stator

$518.99

$

Usually ships in 2-12 days

0

4

Briggs & Stratton 186060GS

Rbc, With O-Ring
(Superseded to 193336GS)

Note: (P/N 189197GS)

$39.99

$

Usually ships in 2-12 days

0

5

Briggs & Stratton 86308HGS

HHCS, M6 - 1.0 x 140 SEMS

$5.49

$

Usually ships in 2-12 days

0

6

Briggs & Stratton 91825GS

Assy., Holder, Rectifier/Brush

$54.99

$

In Stock, only 1 left!

0

7

Briggs & Stratton 66849GS

Taptite, M5 - 0.8 x 16

$4.99

$

In Stock, only 1 left!

0

8

Briggs & Stratton 65791GS

Bearing

$34.99

$

Usually ships in 2-12 days

0

9

Briggs & Stratton 81917GS

Pin, Roll, 4mm x 10

$3.49

$

Usually ships in 2-12 days

0
