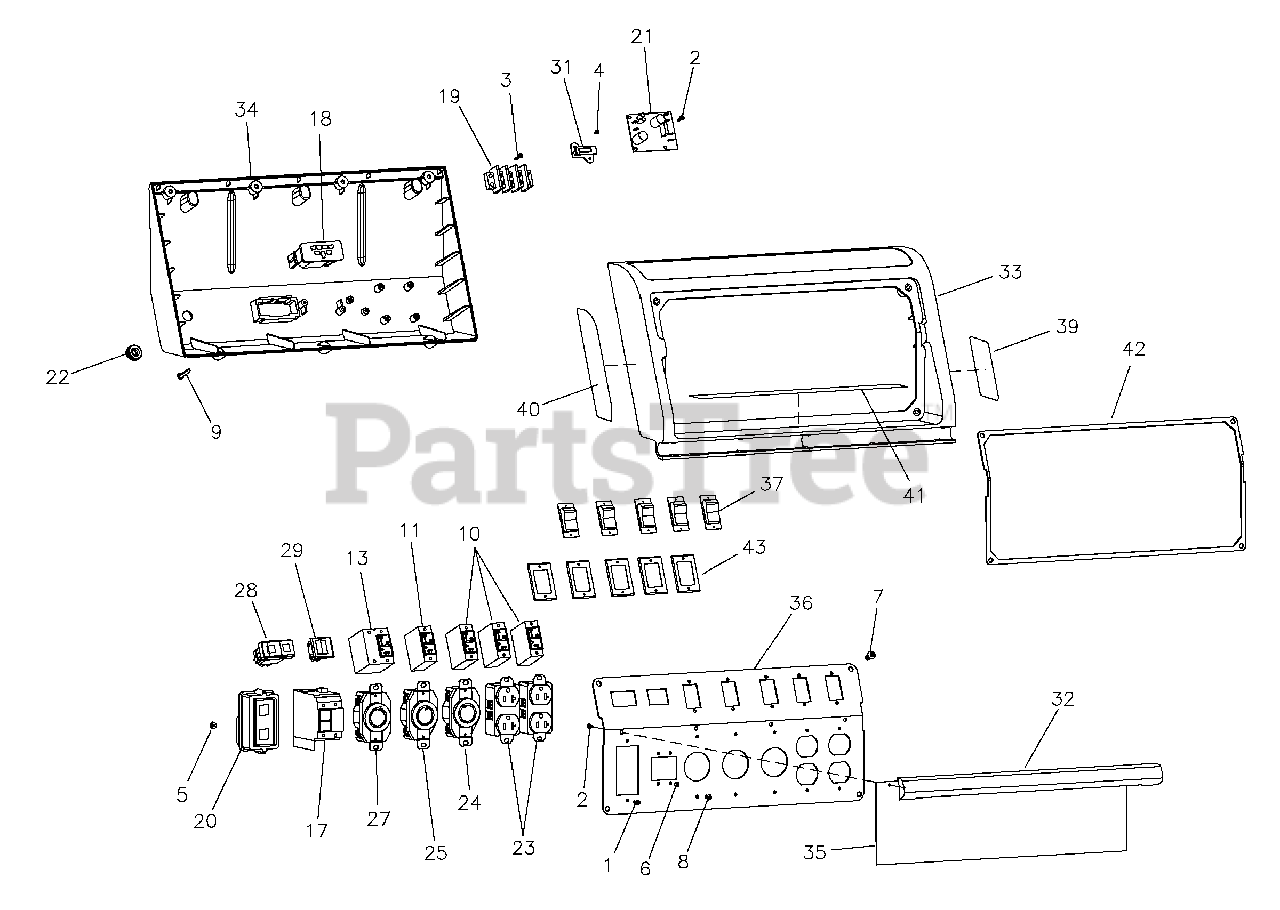

030487-0 - PowerBoss 4,500 Watt Portable Generator Control Panel (206158) Parts Diagram

4,500 Watt Portable Generator

Control Panel (206158) Parts Diagram

  • Title

1

-----

* SCREW, M3 x 10

$

$

Not available

2

-----

* NUT, M8 - 1-1/4

$

$

Not available

3

-----

* SCREW, Phillips Head, M3 - 1/2 x 18

$

$

Not available

4

-----

* SCREW, M3 x 6

$

$

Not available

5

-----

* NUT, #6-32

$

$

Not available

6

-----

* SCREW, #6-32 x 3/16

$

$

Not available

7

-----

* SCREW, 1/4-20 x 1/2

$

$

Not available

8

-----

* SCREW, #6-32 x 3/8

$

$

Not available

9

Briggs & Stratton 206851GS

SCREW

$5.49

$

Usually ships in 2-12 days

0

10

Briggs & Stratton 206473GS

BREAKER, Circuit, 20A

$120.99

$

Usually ships in 2-12 days

0

11

Briggs & Stratton 206469GS

BREAKER, Circuit, 30A

$104.99

$

Usually ships in 2-12 days

0

13

Briggs & Stratton 206507GS

BREAKER, Circuit, 20A

$109.99

$

Usually ships in 2-12 days

0

17

Briggs & Stratton 206510GS

BREAKER, Circuit, 22.5A

$152.99

$

Usually ships in 2-12 days

0

18

Briggs & Stratton 201678GS

CONNECTOR, 6 Pin

$10.99

$

In Stock, only 1 left!

0

19

Briggs & Stratton 193427GS

TERMINAL

$8.49

$

Usually ships in 2-12 days

0

20

Briggs & Stratton 206506GS

MODULE, GFCI Sensing

$316.99

$

Usually ships in 2-12 days

0

21

Briggs & Stratton 193362GS

BOARD, Idle Control

$164.99

$

Usually ships in 2-12 days

0

22

Briggs & Stratton 62265GS

GROMMET

$8.49

$

Usually ships in 2-12 days

0

23

Briggs & Stratton 68759GS

OUTLET, 120V 20A

$24.99

$

In Stock, only 2 left!

0

24

Briggs & Stratton 74190GS

OUTLET, 120V 20A

$38.99

$

Usually ships in 2-12 days

0

25

Briggs & Stratton 68868GS

OUTLET, 120V 30A
(Superseded to 705932)

$37.99

$

Usually ships in 2-12 days

0

27

Briggs & Stratton 68867GS

PLUG, 120 / 240V TL20A

$46.99

$

Usually ships in 2-12 days

0

28

Briggs & Stratton 206463GS

SWITCH, On / Off

$35.99

$

Usually ships in 2-12 days

0

29

Briggs & Stratton 206462GS

SWITCH, On / Off

$15.99

$

Usually ships in 2-12 days

0

31

Briggs & Stratton 84028GS

TRANSFORMER

$47.99

$

In Stock, only 2 left!

0

32

Briggs & Stratton 206461GS

ROD

$6.99

$

Usually ships in 2-12 days

0

33

Briggs & Stratton 206505GS

PANEL

Note: (Includes Ref. Nos. 39, 40 & 41)

$38.99

$

Usually ships in 2-12 days

0

34

Briggs & Stratton 206460GS

PANEL, Back

$43.99

$

Usually ships in 2-12 days

0

35

Briggs & Stratton 206465GS

COVER

$11.99

$

Usually ships in 2-12 days

0

36

Briggs & Stratton 206471GS

PANEL, Control

$33.99

$

Usually ships in 2-12 days

0

37

Briggs & Stratton 206464GS

SEAL

$4.49

$

Usually ships in 2-12 days

0

39

Briggs & Stratton 205974GS

DECAL

$8.99

$

Usually ships in 2-12 days

0

40

Briggs & Stratton 205975GS

DECAL

$12.99

$

Usually ships in 2-12 days

0

41

Briggs & Stratton 205969GS

DECAL

$26.99

$

Usually ships in 2-12 days

0

42

Briggs & Stratton 206843GS

GASKET

$15.99

$

Usually ships in 2-12 days

0

43

Briggs & Stratton 206844GS

SEAL

$4.49

$

Usually ships in 2-12 days

0
