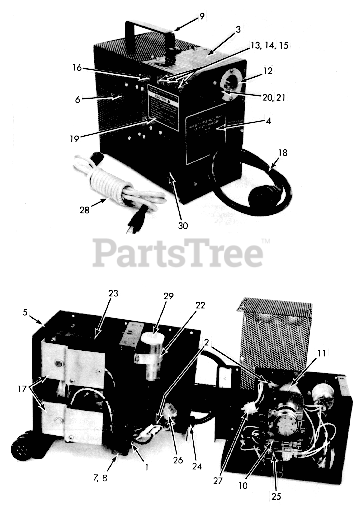

07-30EC01 (E-141) - Toro Tractor Charging Unit (1983) PARTS LIST - VEHICLE IDENTIFICATION NUMBER 07-30EC01 (FORMERLY 8-1570) Parts Diagram

Tractor Charging Unit

PARTS LIST - VEHICLE IDENTIFICATION NUMBER 07-30EC01 (FORMERLY 8-1570) Parts Diagram

  • Title

1

Toro 2708

GROMMET

$

$

Not available

2

Toro 100571

PLASTIC TIE

$

$

Not available

3

Toro 107239

Decal, Top

$

$

Not available

4

Toro 107241

Decal, End

$

$

Not available

5

Toro 107318

Back Panel-Cabinet

$

$

Not available

6

Toro 107320

Screen Wrapper-Cabinet (Secured with 913252 Screws S.T. 6-32 x 3/8)

$

$

Not available

7

Toro 107321

Divider, Cabinet (Secured with 913118 Screw 10-32 x 3/8, 920079 Lockwasher #10, 915551 Nut 10-32)

$

$

Currently unavailable

8

Toro 107322

Divider Brace, Cabinet

$

$

Not available

9

Toro 107324

Handle (Secured with 913272 S.T. Screws 10-32 x 1/2)

$

$

Not available

10

Toro 107326

AC Relay (Secured with 913104 Screw 8-32 x 3/8)

$

$

Not available

11

Toro 107327

Timer (Secured with 913118 Screw 10-32 x 3/8, 920079 Lockwasher #10)

$

$

Not available

12

Toro 107328

AC Receptacle (Secured with 913252 S.T. Screw 6-32 x 3/8, 915536 Nut 6-32, 920118 Lockwasher # 6)

$

$

Not available

13

Toro 107329

Indicator Lamp (White)

Note: Use a quick-drying adhesive such as Eastman 910 or Loctite 495 to secure Lamp to Cabinet.

$

$

Not available

14

Toro 107330

Indicator Lens, Red

$

$

Not available

15

Toro 107331

Indicator Lens, Orange

$

$

Not available

16

Toro 107332

Indicator Lamp, Green

$

$

Not available

17

Toro 107335

Diode and Heat Sink (Secured with 107180 Plastic Expansion Nut, 926554 Screw 8-18 x 5/8. Transformer Leads Secured to Heat Sink with 913118 Screw 10-32 x 1/2, 920079 Lockwasher #10, 915551 Nut 10-32)

$

$

Not available

18

Toro 107339

DC Output Cable

$

$

Not available

19

Toro 107364

DECAL CAUTION CHARGE

$

$

Not available

20

Toro 107366

Fuse Holder (Secured with S.T. Screw 6-32 x 3/8)

$

$

Not available

21

Toro 107367

Fuse, 15 Amp FNM

$

$

Not available

22

Toro 108630

Capacitor Bracket (Secured with 913272 S.T. Screw 10-32 x 1/2)

$

$

Not available

23

Toro 516048

Transformer

$

$

Not available

24

Toro 517991

Cord Clamp, DC Output Cable

$

$

Currently unavailable

25

Toro 518089

Relay, RTN

$

$

Not available

26

Toro 518091

Pin Housing

$

$

Not available

27

Toro 518097

Socket Housing

$

$

Not available

28

Toro 523359

AC Power Cord

$

$

Not available

29

Toro 523392

Capacitor 4 mfd (Alternate 518233)
(Superseded to 523410)

$

$

Not available

30

Toro 107319

End Panel, Cabinet

$

$

Not available
