072 E (114-072E100) - Cub Cadet Walk-Behind Mower Engine (1994) B&S 3.75 HP Engine Sump Parts Diagram

Walk-Behind Mower Engine

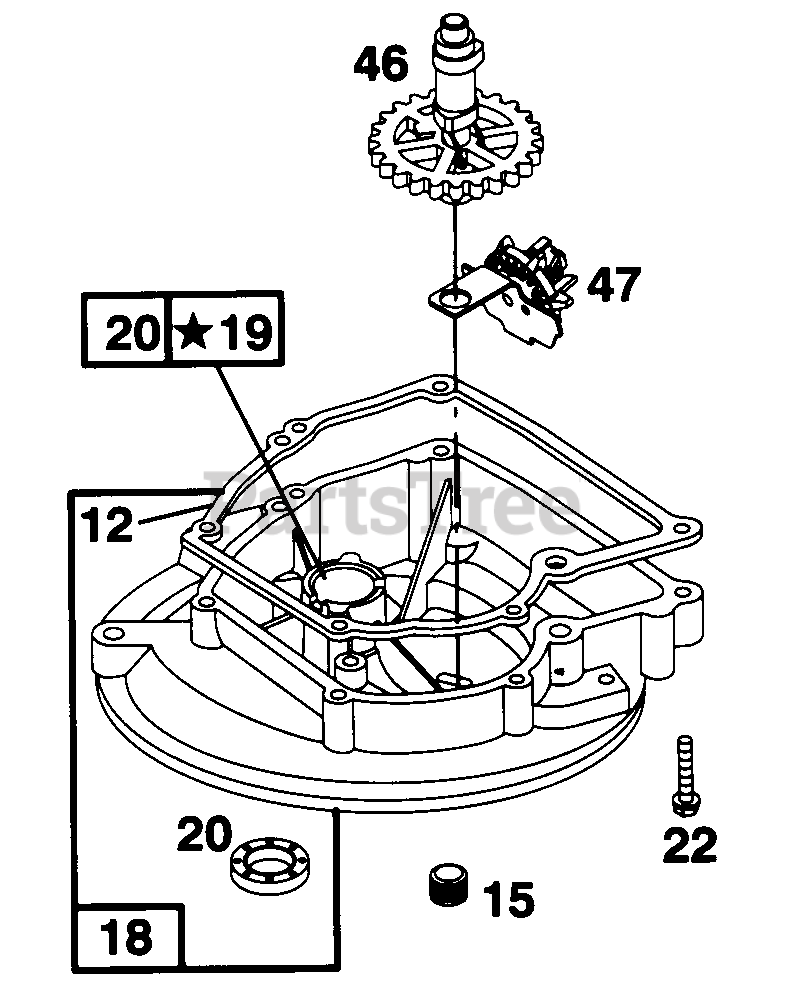

B&S 3.75 HP Engine Sump Parts Diagram

  • Title
12

Cub Cadet BS-270833

Gasket-Crankcase (.015" Thick, Standard)
(Superseded to BS-692218)

$

$

Not available

Cub Cadet BS-270895

Gasket-Crankcase (.005" Thick)

$9.99

$

In Stock, only 1 left!

0

Cub Cadet BS-270896

Gasket-Crankcase (.009" Thick)

$5.99

$

Usually ships in 2-12 days

0

15

Cub Cadet BS-94720

Plug-Oil Drain
(Superseded to BS-691680)

$5.99

$

In Stock, only 3 left!

0

18

Cub Cadet BS-395384

Sump-Engine

$

$

Not available

19

$11.99

$

Usually ships in 2-12 days

0

20

Cub Cadet BS-391483

Seal-Oil
(Superseded to BS-391483S)

$5.99

$

In Stock, Qty 9

0

22

Cub Cadet BS-94607

Screw-Mtg. Sem

$

$

Not available

46

$

$

Not available

47

Cub Cadet BS-491688

Slinger-Oil

$

$

Not available

Cub Cadet BS-298989

Gasket Set
(Superseded to BS-794209)

Note: Includes Ref. 12 and 20

$21.99

$

Usually ships in 2-12 days

0
