073022-1 - VOX 198 GPM Trash Pump Trash Pump (315389) Parts Diagram

198 GPM Trash Pump

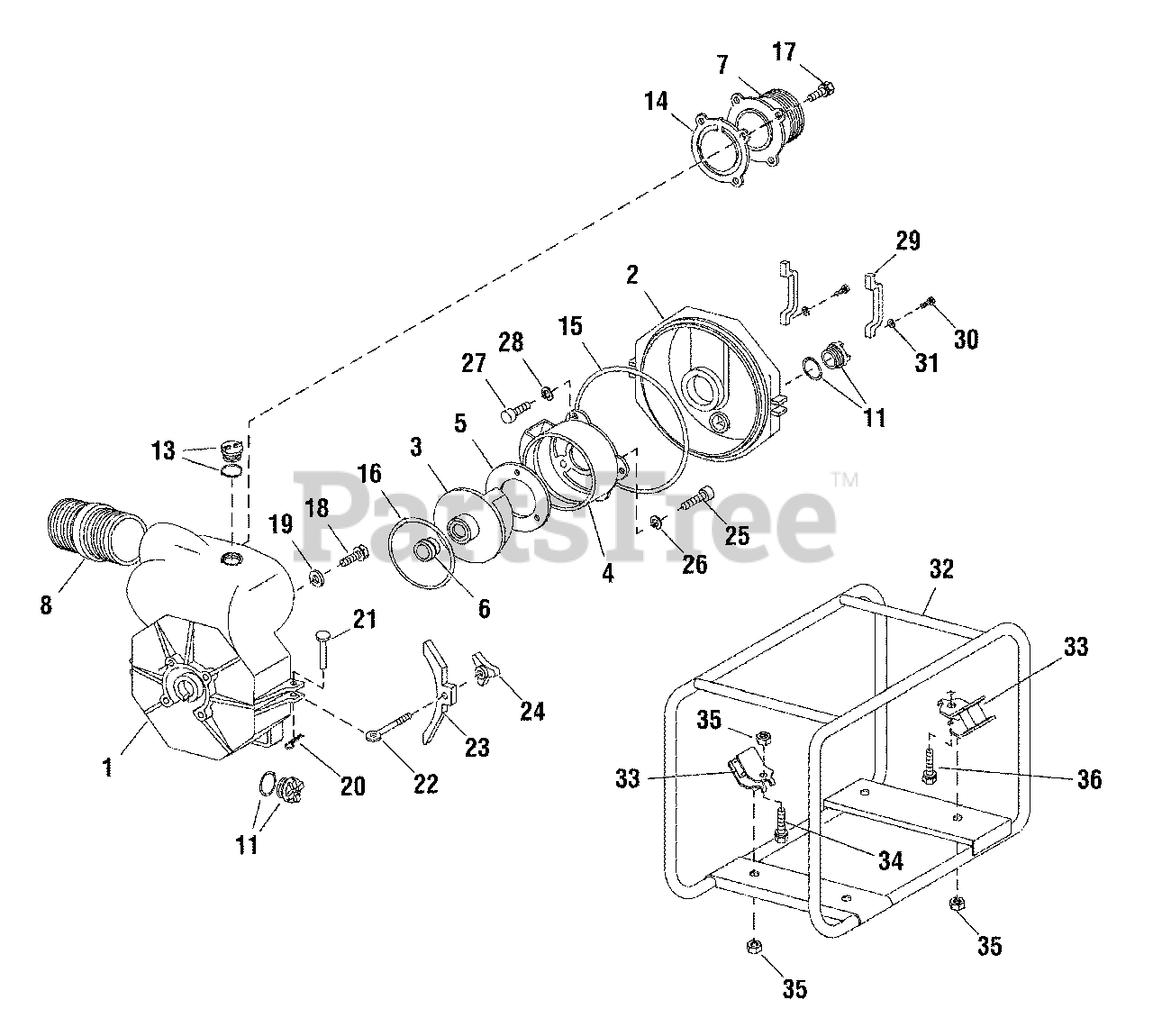

Trash Pump (315389) Parts Diagram

  • Title

1

Briggs & Stratton 205231GS

CASING, Front

$2017.99

$

Usually ships in 2-12 days

0

2

Briggs & Stratton 205232GS

COVER

$268.99

$

Usually ships in 2-12 days

0

3

Briggs & Stratton 205233GS

IMPELLER

$524.99

$

Usually ships in 2-12 days

0

4

Briggs & Stratton 205234GS

CASING

$282.99

$

Usually ships in 2-12 days

0

5

Briggs & Stratton 205235GS

LINER

$50.99

$

Usually ships in 2-12 days

0

6

Briggs & Stratton 205236GS

SEAL

$121.99

$

Usually ships in 2-12 days

0

7

Briggs & Stratton 205237GS

ADAPTER, Hose, 2" NPT

$35.99

$

Usually ships in 2-12 days

0

--

Briggs & Stratton 205603GS

ADAPTER, Hose

$35.99

$

Usually ships in 2-12 days

0

8

Briggs & Stratton 205238GS

FITTING, 2" NPT

$61.99

$

Usually ships in 2-12 days

0

--

Briggs & Stratton 205604GS

FITTING, BSP

$91.99

$

Usually ships in 2-12 days

0

11

Briggs & Stratton 205239GS

PLUG, Drain

$6.99

$

Usually ships in 2-12 days

0

13

Briggs & Stratton 205240GS

PLUG

$29.99

$

Usually ships in 2-12 days

0

14

Briggs & Stratton 205241GS

VALVE, Check

$37.99

$

Usually ships in 2-12 days

0

15

Briggs & Stratton 205324GS

O-RING

$9.99

$

Usually ships in 2-12 days

0

16

Briggs & Stratton 205325GS

O-RING

$7.99

$

In Stock, only 2 left!

0

17

-----

* BOLT, M8 x 25

$

$

Not available

18

-----

* BOLT, Flange, M8 x 50

$

$

Not available

19

Briggs & Stratton 205299GS

WASHER

$3.49

$

Usually ships in 2-12 days

0

20

Briggs & Stratton 205242GS

PIN

$4.49

$

Usually ships in 2-12 days

0

21

Briggs & Stratton 205243GS

RIVET

$8.49

$

Usually ships in 2-12 days

0

22

Briggs & Stratton 205244GS

COVER

$24.99

$

Usually ships in 2-12 days

0

23

Briggs & Stratton 205245GS

CLAMP

$58.99

$

Usually ships in 2-12 days

0

24

Briggs & Stratton 205246GS

KNOB

$30.99

$

Usually ships in 2-12 days

0

25

-----

* BOLT, Hex Socket, M6 x 16

$

$

Not available

26

-----

* WASHER, Lock, M6

$

$

Not available

27

-----

* BOLT, Hex Socket, M8 x 20

$

$

Not available

28

-----

* WASHER, Lock, M8

$

$

Not available

29

Briggs & Stratton 205247GS

HANDLE

$9.99

$

Usually ships in 2-12 days

0

30

-----

* BOLT, M6 x 25

$

$

Not available

31

-----

* WASHER, M6

$

$

Not available

32

Briggs & Stratton 205248GS

CRADLE

$378.99

$

Usually ships in 2-12 days

0

33

Briggs & Stratton 205249GS

MOUNT, Vibration

$17.99

$

In Stock, only 4 left!

0

34

-----

* BOLT, M8 x 40

$

$

Not available

35

-----

* NUT, Flange, M8

$

$

Not available

36

-----

* BOLT, M8 x 20

$

$

Not available

--

-----

** ENGINE

$

$

Not available

--

Briggs & Stratton 315390GS

MANUAL, Operator

Note: (Not Illustrated)

$13.99

$

Usually ships in 2-12 days

0

--

Briggs & Stratton 203522GS

DECAL, Fuel Tank

Note: (Not Illustrated)

$17.99

$

Usually ships in 2-12 days

0

--

Briggs & Stratton 204540GS

DECAL, Warning

Note: (Not Illustrated)

$

$

Currently unavailable
