1000 - Weed Eater String Trimmer, Electric (Original) CARBURETOR & FUEL TANK Parts Diagram

String Trimmer, Electric

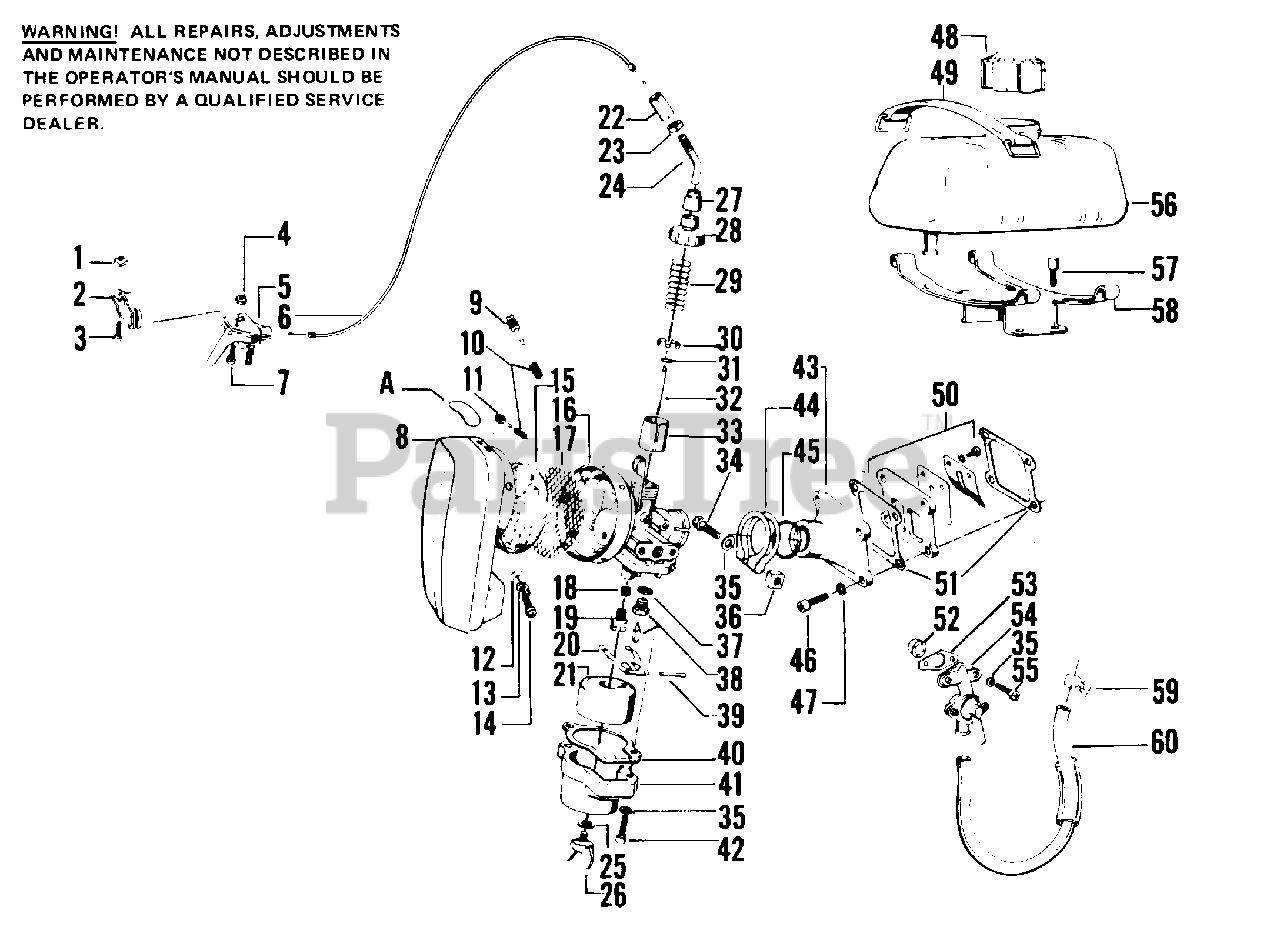

CARBURETOR & FUEL TANK Parts Diagram

  • Title

1

Poulan 530091345

Nut - Throttle Control Clamp

$

$

Not available

2

Poulan 530092881

Clamp - Throttle Control

$

$

Not available

3

Poulan 530091332

Bolt - Throttle Control Clamp

$

$

Not available

4

Poulan 530092408

Wing Nut - Throttle Control

$

$

Not available

5

Poulan 530092407

Throttle Control

$

$

Not available

6

Poulan 530092882

Throttle Cable

$

$

Not available

7

Poulan 530091331

Screw Throttle Control

$

$

Not available

8

Poulan 530092478

Silencer Assembly

$

$

Not available

9

Poulan 530092536

Screw - Air Bleed

$

$

Not available

10

Poulan 530092535

Spring

$

$

Not available

11

Poulan 530092534

Screw - Throttle Stop

$

$

Not available

12

Poulan 530092546

Flat Washer

$

$

Not available

13

Poulan 530091623

Spring Washer

$

$

Not available

14

Poulan 530092489

Screw

$

$

Not available

15

Poulan 530092473

Filter

$

$

Not available

16

Poulan 530092462

Carburetor Assembly (Incl. 9, 10, 11, 22-33, 37,-42)

$

$

Not available

17

Poulan 530092474

Screen

$

$

Not available

18

Poulan 530092533

Jet - Pilot

$

$

Not available

19

Poulan 530092528

Main Jet

$

$

Not available

20

Poulan 530092487

Float Hinge

$

$

Not available

21

Poulan 530092471

Float

$

$

Not available

22

Poulan 530092479

Throttle Cable Bushing

$

$

Not available

23

Poulan 530092481

Cable Adjusting Nut

$

$

Not available

24

Poulan 530092482

Cable Adjuster

$

$

Not available

25

Poulan 530092526

Fiber Washer

$

$

Not available

26

Poulan 530092527

Drain Screw

$13.99

$

Usually ships in 3-10 days

0

27

Poulan 530092483

Rubber Grommet

$

$

Not available

28

Poulan 530092486

Cap

$

$

Not available

29

Poulan 530092485

Throttle Spring

$

$

Not available

30

Poulan 530092465

Spring Seat

$

$

Not available

31

Poulan 530092466

E-Ring

$

$

Not available

32

Poulan 530092463

Needle Jet

$

$

Not available

33

Poulan 530092464

Piston Valve

$

$

Not available

34

Poulan 530092475

Bolt

$

$

Not available

35

Poulan 530089063

Washer

$

$

Not available

36

Poulan 530092477

Square Nut

$

$

Not available

37

Poulan 530092467

Washer

$

$

Not available

38

Poulan 530092948

Needle Valve Assembly

$

$

Not available

39

Poulan 530092488

Float Hinge Pin

$

$

Not available

40

Poulan 530092469

Gasket

$7.49

$

Usually ships in 3-10 days

0

41

Poulan 530092525

Float Chamber

$

$

Not available

42

Poulan 530092484

Screw

$

$

Not available

43

Poulan 530092501

Carburetor Bracket

$

$

Not available

44

Poulan 530092476

Clamp

$

$

Not available

45

Poulan 530092537

"O" Ring

$

$

Not available

46

Poulan 530092511

Bolt

$

$

Not available

47

Poulan 530089072

Lock Washer

$

$

Not available

48

Poulan 530092448

Fuel Tank Cap Assembly

$

$

Not available

49

Poulan 530092452

Tank Band

$

$

Not available

50

Poulan 530092492

Reed Valve Assembly

$

$

Not available

51

Poulan 530092502

Gasket

$

$

Not available

52

Poulan 530092524

Filter

$

$

Not available

53

Poulan 530092523

Gasket

$

$

Not available

54

Poulan 530092518

Valve - Fuelflow

$

$

Not available

55

Poulan 530092543

Screw

$

$

Not available

56

Poulan 530092451

Fuel Tank

$

$

Not available

57

Poulan 530092453

Bolt

$

$

Not available

58

Poulan 530092449

Fuel Tank Bracket Assembly

$

$

Not available

59

Poulan 530092521

CLAMP 10805-01 Z

$

$

Not available

Poulan 110092521

GASKET

$2.49

$

In Stock, only 1 left!

0

60

Poulan 530092519

Fuel Pipe Assembly

$

$

Not available

A

Choke Decal

$

$

Not available
