1000Z (5901000) - Ferris 1000Z Series 48" Zero-Turn Mower, 21hp Kohler (SN: 2898 & Below) 48", 52" & 61" Mower Deck - Rear Mount Bars - S/N: 2899 and above Parts Diagram

1000Z Series 48" Zero-Turn Mower, 21hp Kohler

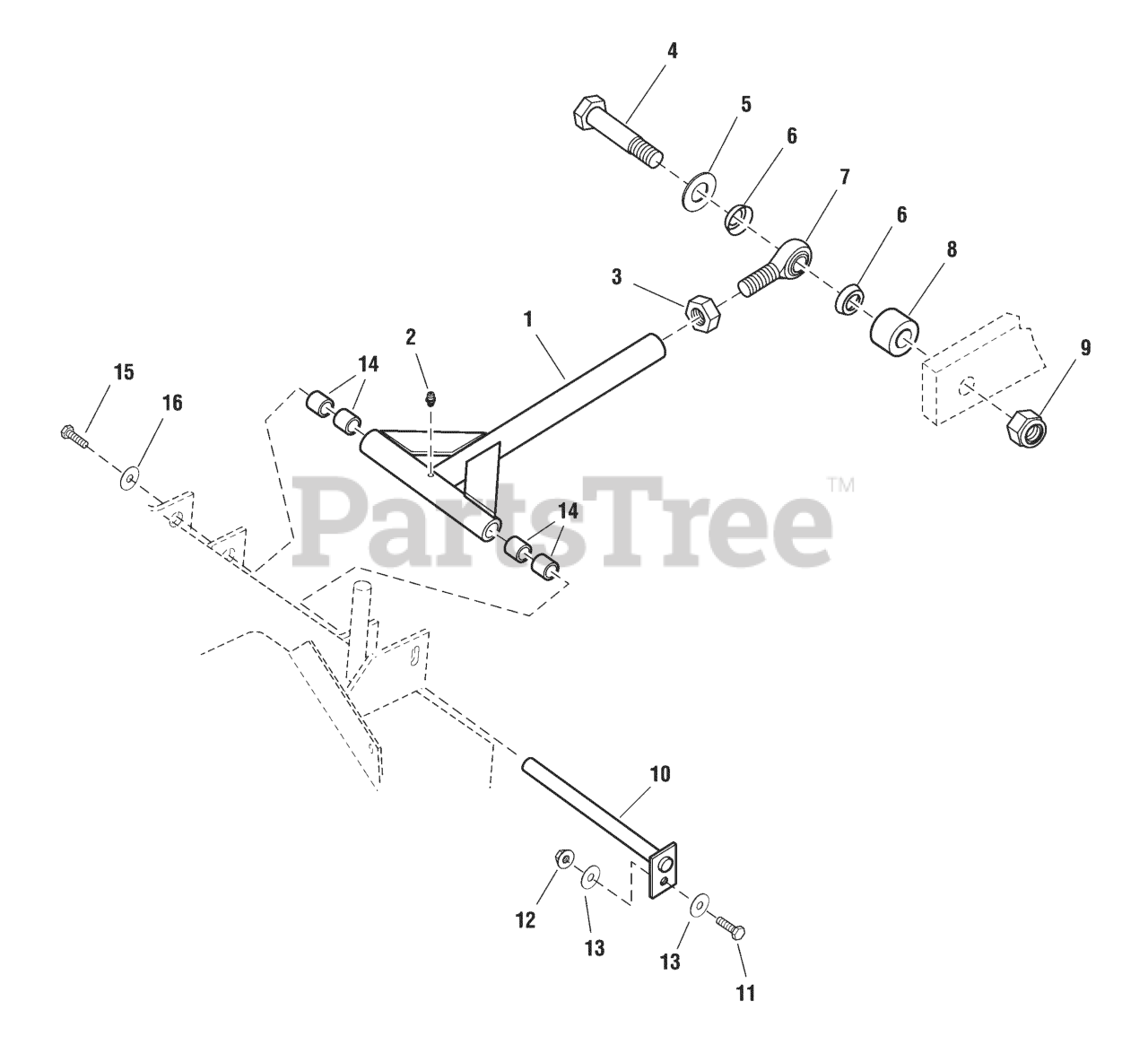

48", 52" & 61" Mower Deck - Rear Mount Bars - S/N: 2899 and above Parts Diagram

  • Title

1

Ferris 5045009B

ASSM, DECK PUSHER BAR

Note: (Includes Ref No. 14)

$133.99

$

In Stock, only 2 left!

0

2

Ferris 5020095

GREASE FITTING
(Superseded to 5020095SM)

$3.99

$

Usually ships in 2-12 days

0

3

Ferris 5025093

NUT, 3/4-16 Hex Jam
(Superseded to 5025093SM)

$4.49

$

Usually ships in 2-12 days

0

4

Ferris 5025265X32

BOLT, 3/4-16 x 4
(Superseded to 5025265X32SM)

$4.99

$

Usually ships in 2-12 days

0

5

Ferris 5025160

WASHER, 3/4 SAE
(Superseded to 5025160SM)

$3.99

$

In Stock, only 2 left!

0

6

Ferris 5022111

ROD END SEAL
(Superseded to 5022111SM)

$15.99

$

In Stock, only 4 left!

0

7

Ferris 5022039

BALL JOINT, 3/4-16 Male
(Superseded to 5022039SM)

$37.99

$

Usually ships in 2-12 days

0

8

Ferris 5046093

SPACER, .75 x 1.50 x 1.00
(Superseded to 5046093SM)

$10.99

$

Usually ships in 2-12 days

0

9

Ferris 5025284

NUT, 3/4-16 Hex Nylon Lock
(Superseded to 5025284SM)

$3.49

$

In Stock, only 1 left!

0

10

Ferris 5045037A

NLA - WELD, DECK MOUNT SHAFT - BLK
(Superseded to 5045037AA)

$39.99

$

In Stock, only 2 left!

0

11

Ferris 5025013X10

BOLT, 3/8-16 X 1-1/4" GD5 CZ
(Superseded to 5025013X10SM)

$3.99

$

In Stock, only 3 left!

0

12

Ferris 5025096

NUT, 3/8-16 HEX NYLON LOCK
(Superseded to 5025096SM)

$3.49

$

In Stock, Qty 10

0

13

Ferris 5025156

WASHER, 3/8 SAE
(Superseded to 5025156FS)

$3.49

$

Usually ships in 2-12 days

0

14

Ferris 5023344

BUSHING, .75 X 1.00 X 1.00, PLASTIC
(Superseded to 5023344SM)

Note: (Qty. (4) per pusher bar)

$9.49

$

Usually ships in 2-12 days

0

15

Ferris 5025013X8

BOLT, 3/8-16 X 1" GD5 CZ
(Superseded to 5025013X8SM)

$3.99

$

In Stock, only 4 left!

0

16

Ferris 5100548

WASHER, .390 X 1.50 X .109 YZ
(Superseded to 5100548SM)

$4.49

$

In Stock, only 1 left!

0
