1000Z (5901000) - Ferris 1000Z Series 48" Zero-Turn Mower, 21hp Kohler (SN: 2898 & Below) Floor Pan & Brake Cover Group - S/N: 2898 and below Parts Diagram

1000Z Series 48" Zero-Turn Mower, 21hp Kohler

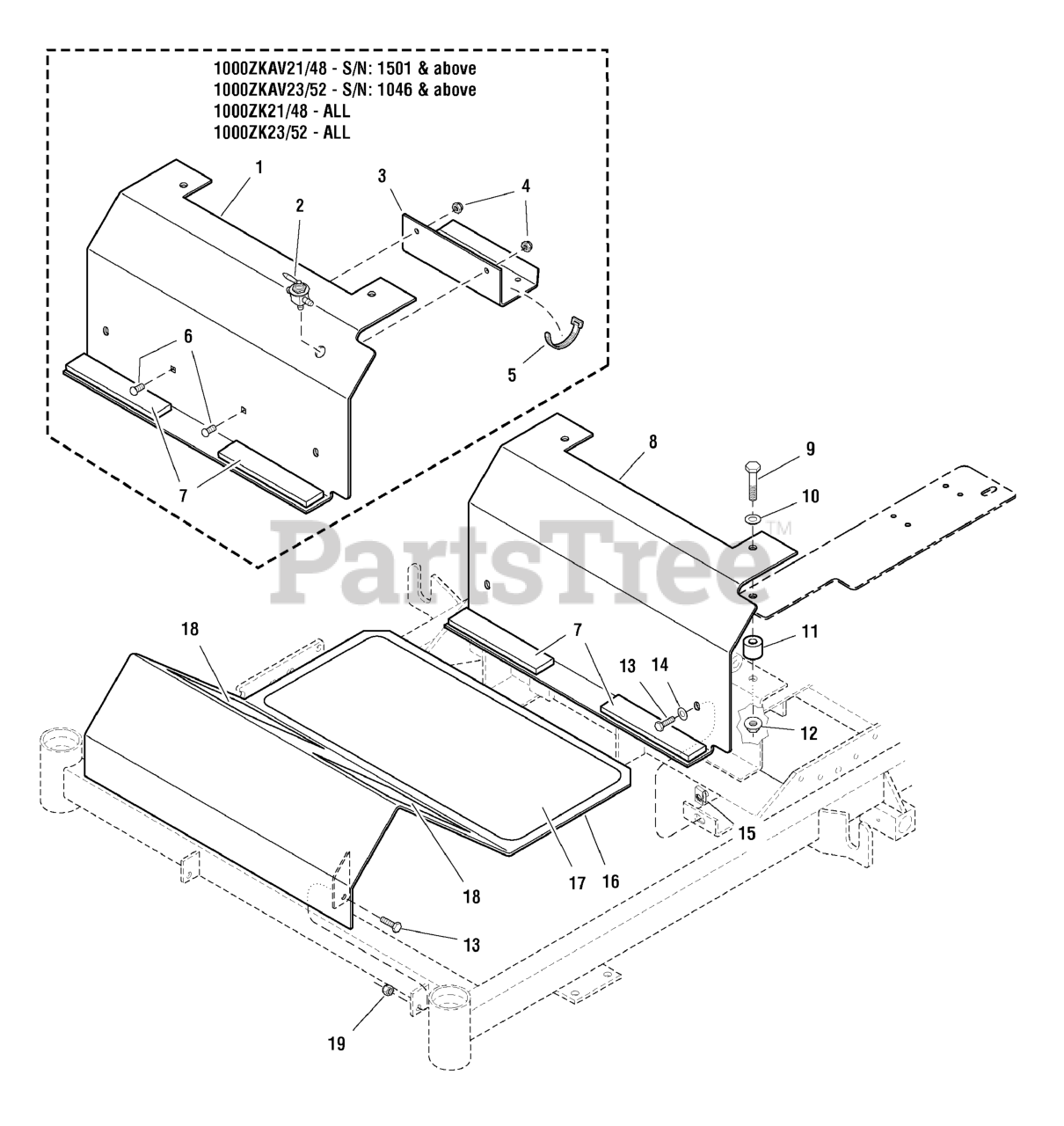

Floor Pan & Brake Cover Group - S/N: 2898 and below Parts Diagram

  • Title

19

Ferris 5021102

SPRING, COMPRESSION
(Superseded to 5021102SM)

$7.49

$

Usually ships in 2-12 days

0

20

HHCS, 1/4-20 X 0.625, GR5, ZINC/CLEAR

$

$

Not available

21

Ferris 5025154

WASHER, 1/4 SAE
(Superseded to 84007033)

$4.49

$

Usually ships in 2-12 days

0

22

Ferris 5403486B

BRACKET, SWITCH MOUNT - RED
(Superseded to 5403486BFS)

$12.99

$

Usually ships in 2-12 days

0

23

Ferris 5025126

NUT, 1/4-20 HEX SERR. FLANGE
(Superseded to 5025126FS)

$4.49

$

Usually ships in 2-12 days

0

24

Ferris 5403180B

PLATE, NEUTRAL LOCK - RED
(Superseded to 5403180BFS)

$22.99

$

Usually ships in 2-12 days

0

25

Ferris 5100940

DAMPENER, CONTROL,#(P6709/P3610)
(Superseded to 5100940SM)

$55.99

$

In Stock, only 2 left!

0

26

Ferris 5100941

BALL STUD, 5/16 X .50,# PC-477-2)
(Superseded to 5100941SM)

$4.49

$

Usually ships in 2-12 days

0

27

Ferris 5021499

BEARING, FLANGE
(Superseded to 5021499SM)

$55.99

$

In Stock, only 2 left!

0

28

Ferris 5047004A

MOUNT, CONTROL ARM - BLK

Note: (9.0" Total Length, 4 Adjustment Holes)

$

$

Currently unavailable

29

Ferris 5101381

ROD, HYDRO CONTROL, OUTFRONT
(Superseded to 5101381YP)

$14.99

$

Usually ships in 2-12 days

0

30

Ferris 5025096

NUT, 3/8-16 HEX NYLON LOCK
(Superseded to 5025096SM)

$3.49

$

In Stock, Qty 10

0

31

Ferris 5025011X8

BOLT, 5/16-18 X 1 GD5 YZ
(Superseded to 5025011X8FS)

$3.49

$

Usually ships in 2-12 days

0

32

Ferris 5025170

WASHER, 5/16 LOCK CZ
(Superseded to 5025170SM)

$3.99

$

Usually ships in 2-12 days

0

33

Ferris 5025327

BOLT, 3/8-16 X 1-1/4 SHCS
(Superseded to 5025327SM)

$3.99

$

Usually ships in 2-12 days

0

34

Ferris 5025013X14

BOLT, 3/8-16 X 1-3/4" GD5 CZ
(Superseded to 5025013X14SM)

$3.99

$

In Stock, Qty 5

0

35

Ferris 5025127

NUT, 5/16-18 HEX SERRATED FLANGE (SMALL)
(Superseded to 5025127SM)

$3.49

$

In Stock, Qty 9

0

36

Ferris 5025394

NUT, 3/8-16 HEX NYLOCK FLANGE
(Superseded to 5025394SM)

$4.49

$

In Stock, Qty 20+

0

37

Ferris 5025055X16

BOLT, 5/16-18 X 2 GD5 TFL
(Superseded to 5025055X16SM)

$3.99

$

Usually ships in 2-12 days

0
