1000Z (5901000) - Ferris 1000Z Series 48" Zero-Turn Mower, 21hp Kohler (SN: 2898 & Below) Hydro Tank Mount Group - S/N: 2898 and below Parts Diagram

1000Z Series 48" Zero-Turn Mower, 21hp Kohler

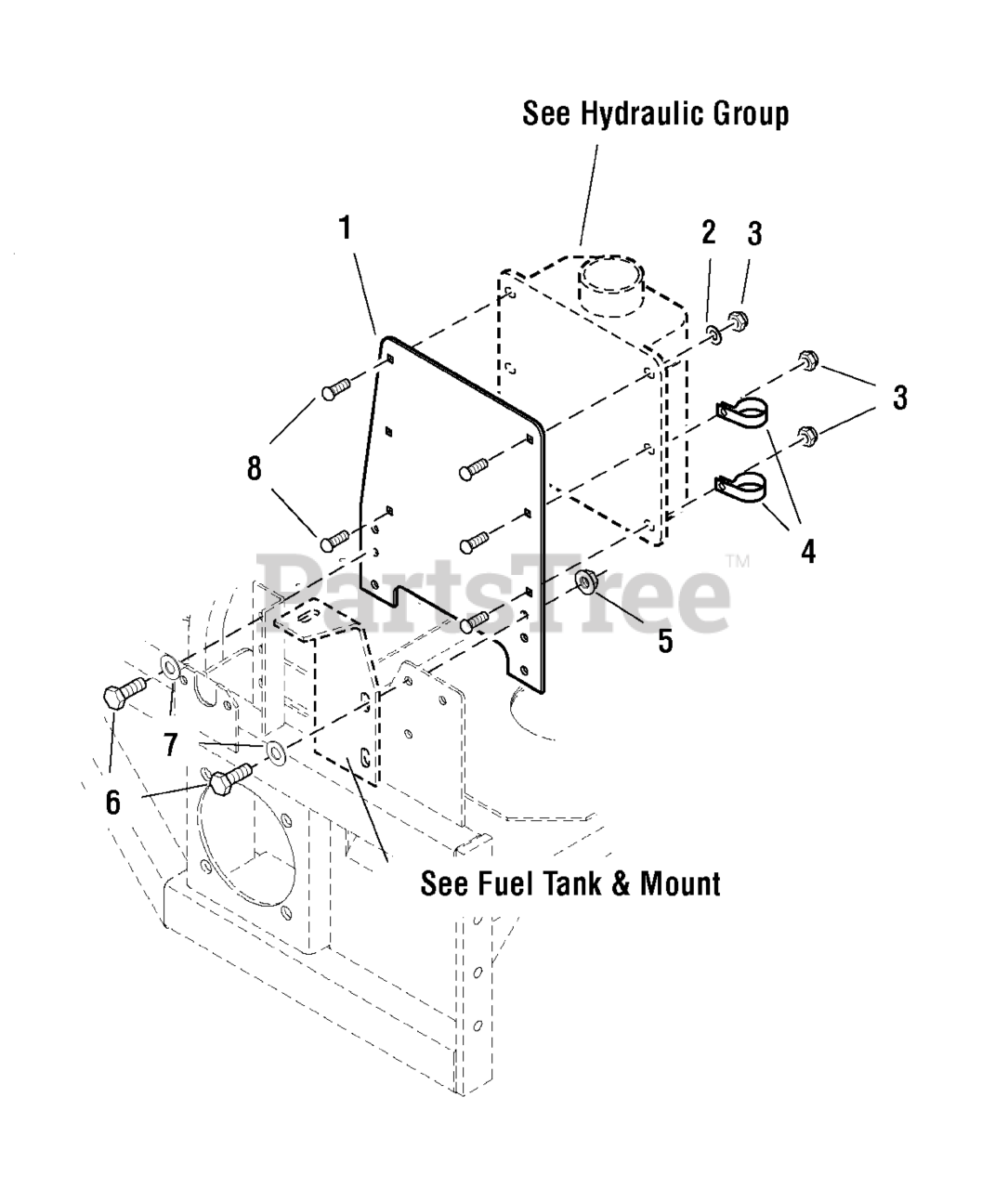

Hydro Tank Mount Group - S/N: 2898 and below Parts Diagram

  • Title

1

Ferris 5048351B

PLATE, Tank Mount
(Superseded to 5048351BFS)

Note: (Refer to Note: *)

$24.99

$

Usually ships in 2-12 days

0

2

Ferris 5025154

WASHER, 1/4 SAE
(Superseded to 84007033)

$4.49

$

Usually ships in 2-12 days

0

3

Ferris 5025095

NUT, 1/4-20 HEX NYLON LOCK
(Superseded to 5025095SM)

$3.49

$

In Stock, Qty 11

0

4

Ferris 5021500

CLAMP, Vinyl
(Superseded to 5021500FS)

$4.49

$

Usually ships in 2-12 days

0

5

Ferris 5025127

NUT, 5/16-18 HEX SERRATED FLANGE (SMALL)
(Superseded to 5025127SM)

$3.49

$

In Stock, Qty 9

0

6

Ferris 5025011X8

BOLT, 5/16-18 X 1 GD5 YZ
(Superseded to 5025011X8FS)

$3.49

$

Usually ships in 2-12 days

0

7

Ferris 5025155

WASHER, 5/16" SAE

$

$

Currently unavailable

8

Ferris 80003518

BOLT,1/4-20X0.750,GR5,STD NECK,SQ,ZC/CL
(Superseded to 703575)

$3.99

$

In Stock, only 3 left!

0
