1000Z (5901003) - Ferris 1000Z Series 61" Zero-Turn Mower, 27hp Kohler (SN: 2898 & Below) Tire & Wheel Group Parts Diagram

1000Z Series 61" Zero-Turn Mower, 27hp Kohler

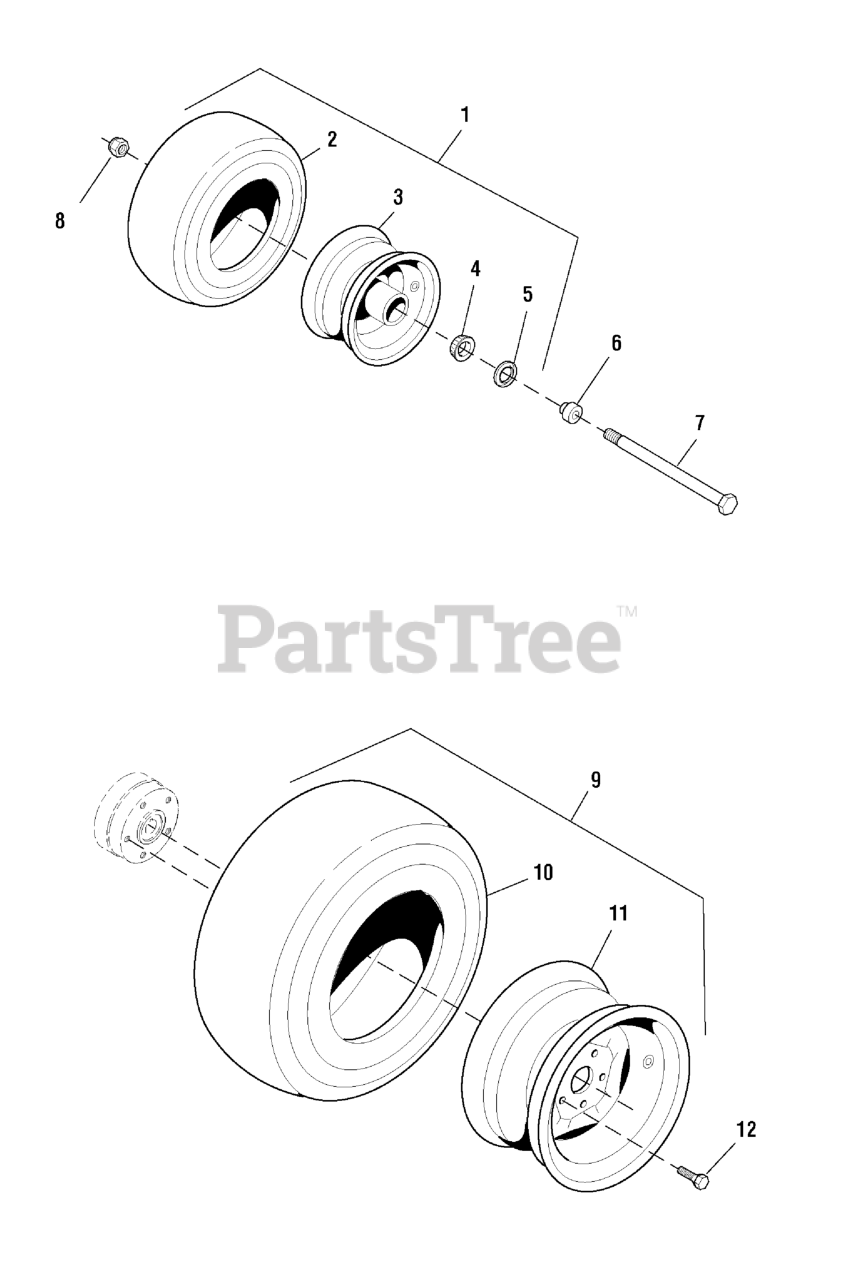

Tire & Wheel Group Parts Diagram

  • Title

1

Ferris 5023136

TIRE ASSM, 13 X 6.5 - 6, PNE / TB
(Superseded to 5023136YP)

Note: (Includes Ref No. 2 - 5)

$198.99

$

Usually ships in 2-12 days

0

2

Ferris 5022577

TIRE, RUBBER ONLY

$

$

Currently unavailable

3

Ferris 5023136X1

WHEEL ASSEMBLY, for 13 x 6.5 x 6 Tires, Complete
(Superseded to 5023136X1YP)

Note: (Includes Ref No. 4 & 5)

$195.99

$

In Stock, only 1 left!

0

4

Ferris 5022631SX2

BEARING, Tapered Roller
(Superseded to 5022631SX2SM)

Note: (2 per tire)

$12.99

$

In Stock, only 1 left!

0

5

Ferris 5022631SX3

SEAL, GREASE
(Superseded to 5022631SX3SM)

Note: (2 per tire)

$9.99

$

In Stock, only 1 left!

0

6

Ferris 5047103

ADAPTER, CASTER AXLE, CZ
(Superseded to 5047103SM)

Note: (2 per tire)

$10.99

$

In Stock, only 1 left!

0

7

Ferris 5025017X72

BOLT, 1/2-13 x 9
(Superseded to 5025017X72YP)

$11.99

$

Usually ships in 2-12 days

0

8

Ferris 5025056

NUT, 1/2-13 HEX NYLON LOCK
(Superseded to 5025056FS)

$4.49

$

In Stock, only 2 left!

0

9

Ferris 5023245

WHEEL & TIRE ASSEMBLY, 23 x 10.5 x 12, Complete

Note: (Includes Ref No. 10 & 11)

$227.99

$

Usually ships in 2-12 days

0

10

Ferris 5023243X1

TIRE, Rear, 23 x 10.5 x 12

$

$

Currently unavailable

11

Ferris 5023245X1

WHEEL ASSEMBLY, for 23 x 10.5 x 12 Tires

$

$

Currently unavailable

12

Ferris 5022215

WHEEL LUG, 1/2 x 1-5/8
(Superseded to 5022215SM)

$9.99

$

In Stock, only 1 left!

0
