1000Z (5901003) - Ferris 1000Z Series 61" Zero-Turn Mower, 27hp Kohler (SN: 2899 & Above) Deck Lift Group - 61" Model Parts Diagram

1000Z Series 61" Zero-Turn Mower, 27hp Kohler

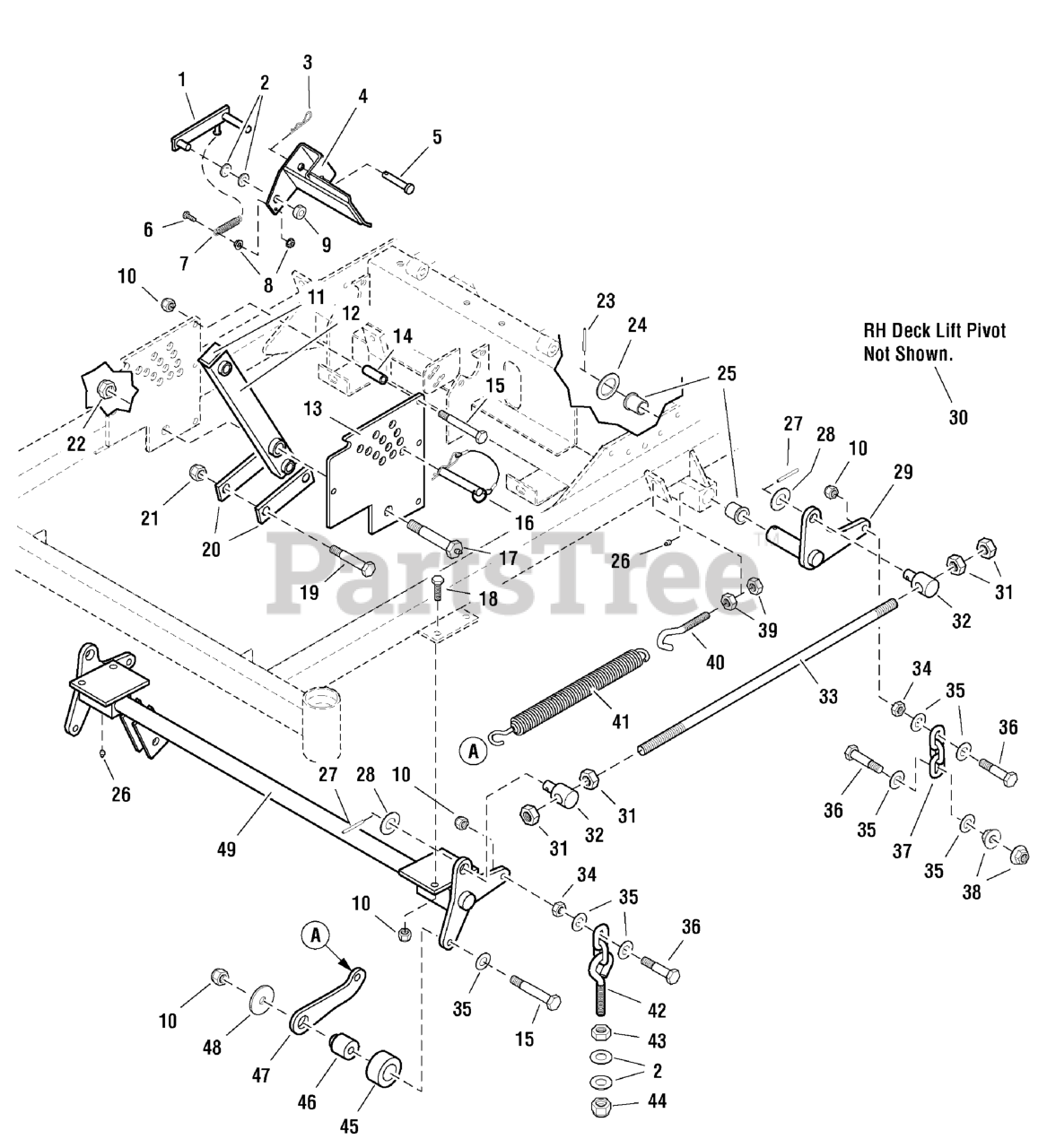

Deck Lift Group - 61" Model Parts Diagram

  • Title

1

Ferris 5061232B

DECK LIFT LOCK

$32.99

$

In Stock, only 2 left!

0

2

Ferris 5025158

WASHER, 1/2 SAE
(Superseded to 5025158SM)

$3.99

$

In Stock, Qty 13

0

3

Ferris 5025210

HAIRPIN CLIP
(Superseded to 5025210YP)

$3.99

$

In Stock, only 1 left!

0

4

Ferris 5045058B

WELD, DECK LIFT PEDAL

$98.99

$

Usually ships in 2-12 days

0

5

Ferris 5022044

PIN, Clevis, 1/2 x 2-1/2
(Superseded to 5022044SM)

$4.49

$

In Stock, only 1 left!

0

6

Ferris 5025010X6

BOLT, 1/4-20 x 3/4
(Superseded to 5025010X6SM)

$3.99

$

In Stock, Qty 13

0

7

Ferris 5020639

SPRING, Extension
(Superseded to 5020639SM)

$31.99

$

Usually ships in 2-12 days

0

8

Ferris 5025126

NUT, 1/4-20 HEX SERR. FLANGE
(Superseded to 5025126FS)

$4.49

$

Usually ships in 2-12 days

0

9

Ferris 5023241

COLLAR, Split, 1/2
(Superseded to 5023241SM)

$16.99

$

Usually ships in 2-12 days

0

10

Ferris 5025096

NUT, 3/8-16 HEX NYLON LOCK
(Superseded to 5025096SM)

$3.49

$

In Stock, Qty 10

0

11

Ferris 5022097

CAP

$2.99

$

Usually ships in 2-12 days

0

12

Ferris 5044987B

ARM, Deck Lift Pivot

$46.99

$

Usually ships in 2-12 days

0

13

Ferris 5047043B

DECK HEIGHT PLATE

$

$

Currently unavailable

14

Ferris 5044992

SPACER, .38 x .50 x 1.56
(Superseded to 5044992SM)

$5.99

$

In Stock, only 2 left!

0

15

Ferris 5025013X22

BOLT, 3/8-16 X 2-3/4" GD5 CZ
(Superseded to 5025013X22SM)

$4.49

$

In Stock, Qty 6

0

16

Ferris 5023082

PIN, 1/2 x 3-1/2 w/ Lanyard
(Superseded to 5023082SM)

$22.99

$

Usually ships in 2-12 days

0

17

Ferris 5044993

LIFT PIVOT BOLT

$32.99

$

Usually ships in 2-12 days

0

18

Ferris 5025013X10

BOLT, 3/8-16 X 1-1/4" GD5 CZ
(Superseded to 5025013X10SM)

$3.99

$

In Stock, only 3 left!

0

19

Ferris 5025018X24

BOLT, 1/2-20 x 3
(Superseded to 5025018X24SM)

$4.99

$

Usually ships in 2-12 days

0

20

Ferris 5047105B

LINK, Deck Lift

$6.49

$

Usually ships in 2-12 days

0

21

Ferris 5025098

NUT, Hex, Nylon Lock, 1/2-20
(Superseded to 5025098SM)

$5.99

$

Usually ships in 2-12 days

0

22

Ferris 5025282

NUT, 5/8-11 Hex Jam Nylon Lock
(Superseded to 5025282FS)

$5.99

$

Usually ships in 2-12 days

0

23

Ferris 5025516

PIN, Roll, 3/16 x 1-1/2

$

$

Not available

24

Ferris 5021253

SHIM

$10.99

$

Usually ships in 2-12 days

0

25

Ferris 5023343

BUSHING, Flange
(Superseded to 5023343SM)

$6.49

$

In Stock, only 3 left!

0

26

Ferris 5020095

GREASE FITTING
(Superseded to 5020095SM)

$3.99

$

Usually ships in 2-12 days

0

27

Ferris 5022366

PIN, Spring, 3/16 x 1-1/4
(Superseded to 5022366SM)

$3.49

$

Usually ships in 2-12 days

0

28

Ferris 5025281

WASHER, 5/8" SAE
(Superseded to 5025281SM)

$3.99

$

In Stock, only 3 left!

0

29

Ferris 5047182B

DECK LIFT PIVOT-LH

$85.99

$

Usually ships in 2-12 days

0

30

Ferris 5047181B

DECK LIFT PIVOT-RH

Note: (Not Shown)

$85.99

$

Usually ships in 2-12 days

0

31

Ferris 5025040

NUT, 5/8-11 Hex
(Superseded to 5025040SM)

$3.49

$

In Stock, only 1 left!

0

32

Ferris 5045447

SPRING ROD PIVOT
(Superseded to 5045447SM)

$25.99

$

Usually ships in 2-12 days

0

33

Ferris 5061304

DECK ADJUSTMENT ROD
(Superseded to 5061304SM)

$17.99

$

Usually ships in 2-12 days

0

34

Ferris 5025084

NUT, 3/8-16 HEX JAM
(Superseded to 5025084SM)

$3.49

$

Usually ships in 2-12 days

0

35

Ferris 5025156

WASHER, 3/8 SAE
(Superseded to 5025156FS)

$3.49

$

Usually ships in 2-12 days

0

36

Ferris 5025013X14

BOLT, 3/8-16 X 1-3/4" GD5 CZ
(Superseded to 5025013X14SM)

$3.99

$

In Stock, Qty 5

0

37

Ferris 5050878X3

CHAIN, 3 LINKS
(Superseded to 5050878X3SM)

$8.49

$

In Stock, only 2 left!

0

38

Ferris 5025128

NUT, 3/8-16 Hex Serrated Flange
(Superseded to 5025128SM)

$3.49

$

Usually ships in 2-12 days

0

39

Ferris 5025034

NUT, 3/8-16 Hex
(Superseded to 5025034SM)

$2.99

$

Usually ships in 2-12 days

0

40

Ferris 5025321

SCREW HOOK, 3/8-16 x 4-1/4
(Superseded to 5025321SM)

$16.99

$

Usually ships in 2-12 days

0

41

Ferris 5023355

DECK LIFT SPRING
(Superseded to 5023355SM)

$49.99

$

In Stock, only 1 left!

0

42

Ferris 5104309

HANGER, FRONT DECK-2LINK, 5.5" EB
(Superseded to 5104309YP)

$18.99

$

In Stock, only 2 left!

0

43

Ferris 5025038

NUT, 1/2-13 Hex
(Superseded to 703340)

$7.99

$

Usually ships in 2-12 days

0

44

Ferris 5025056

NUT, 1/2-13 HEX NYLON LOCK
(Superseded to 5025056FS)

$4.49

$

In Stock, only 2 left!

0

45

Ferris 5061371

DECK STOP

$

$

Currently unavailable

46

Ferris 5061370

DECK PIVOT BUSHING

$

$

Currently unavailable

47

Ferris 5061224B

SPRING LINK
(Superseded to 5061224BFS)

$17.99

$

Usually ships in 2-12 days

0

48

Ferris 5025326

WASHER, 3/8 x 2
(Superseded to 5025326SM)

$4.49

$

Usually ships in 2-12 days

0

49

Ferris 5061375B

DECK LIFT SHAFT & MOUNT ASSEMBLY

$

$

Currently unavailable
