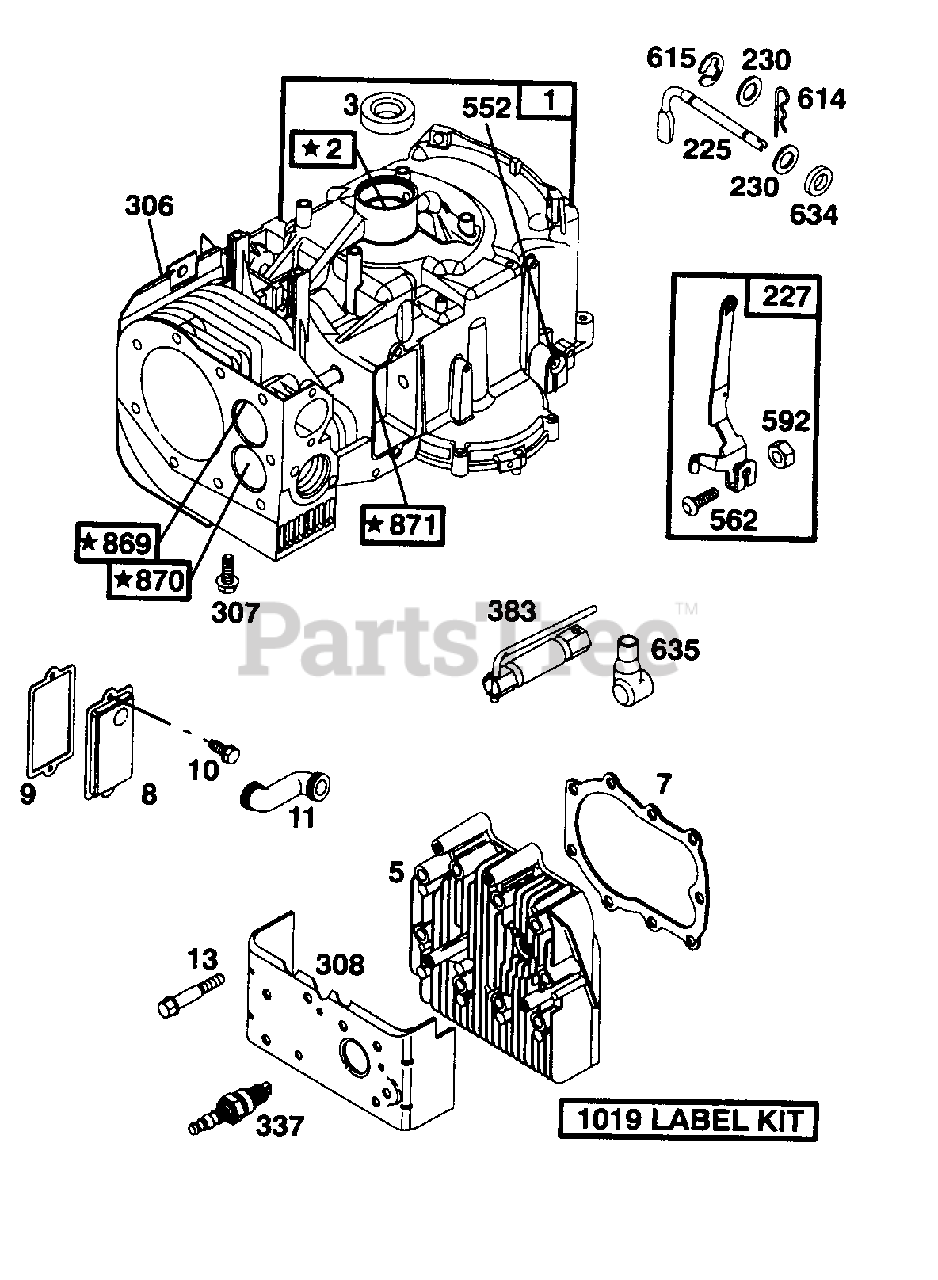

1030 (133B582B100) - Cub Cadet Rear-Engine Riding Mower Engine (1993) B&S 10.5 HP Short Block Ass'y Parts Diagram

Rear-Engine Riding Mower Engine

B&S 10.5 HP Short Block Ass'y Parts Diagram

  • Title

Cub Cadet BS-396610

Short Block

$439.99

$

Usually ships in 2-12 days

0

1

Cub Cadet BS-495729

Cylinder Assembly

$321.99

$

Usually ships in 2-12 days

0

2

Cub Cadet BS-399265

Bearing--Cylinder
(Superseded to BS-797673)

$18.99

$

In Stock, only 3 left!

0

3

Cub Cadet BS-391086

Seal--Oil
(Superseded to BS-391086S)

$6.49

$

In Stock, Qty 20+

0

5

Cub Cadet BS-212914

Head--Cylinder

$

$

Not available

7

Cub Cadet BS-271866

Gasket--Cylinder Head
(Superseded to BS-271866S)

$9.49

$

In Stock, Qty 20+

0

8

Cub Cadet BS-391406

Breather Assembly
(Superseded to BS-495735)

$63.99

$

In Stock, only 1 left!

0

9

Cub Cadet BS-27803

Gasket--Valve Cover
(Superseded to BS-27803S)

$4.49

$

In Stock, Qty 20+

0

10

Cub Cadet BS-94621

Screw--Sem
(Superseded to BS-691666)

$3.99

$

In Stock, Qty 5

0

11

Cub Cadet BS-280100

Tube Breather
(Superseded to BS-692253)

$9.99

$

In Stock, Qty 8

0

13

Cub Cadet BS-93723

Screw Cylinder Head

$

$

Not available

225

Cub Cadet BS-231058

Crank--Governor
(Superseded to BS-692012)

$13.99

$

In Stock, only 4 left!

0

227

Cub Cadet BS-493935

Lever Assy.--Governor

$

$

Not available

230

Cub Cadet BS-94742

Washer--Gov. Crank
(Superseded to BS-691691)

$3.99

$

In Stock, Qty 5

0

306

Cub Cadet BS-224542

Shield--Cylinder

$

$

Currently unavailable

307

Cub Cadet BS-93949

Screw--Cylinder Shield Mounting Sem

$

$

Not available

308

Cub Cadet BS-222725

Cover--Cylinder Head

$

$

Not available

337

Cub Cadet 759-3338

Plug--Spark (Resistor Type)

$3.49

$

In Stock, Qty 20+

0

383

Cub Cadet BS-89838

Wrench--Spark Plug
(Superseded to BS-89838S)

$6.49

$

In Stock, Qty 5

0

552

UNKNOWN

$

$

Not available

?555

Cub Cadet BS-231597

Bushing--Gov. Crank

$

$

Not available

562

Cub Cadet BS-92613

Bolt--Governor Lever

$

$

Not available

592

Cub Cadet BS-231082

Nut--Hex

$

$

Not available

614

Cub Cadet BS-93306

Cotter--Hair Pin

$

$

Not available

615

Cub Cadet BS-93307

Retainer--E-Ring

$5.99

$

In Stock, only 4 left!

0

634

Cub Cadet BS-491323

Seal--Governor
(Superseded to BS-692407)

$7.99

$

In Stock, Qty 11

0

635

Cub Cadet BS-66538

Elbow--Spark Plug
(Superseded to BS-66538S)

$3.99

$

In Stock, Qty 15

0

869

Cub Cadet BS-261463

Seat--Intake Valve (Standard)
(Superseded to BS-691802)

$17.99

$

Usually ships in 2-12 days

0

870

Cub Cadet BS-213316

Seat--Exhaust Valve (Standard)
(Superseded to BS-691844)

$18.99

$

In Stock, only 1 left!

0

871

Cub Cadet BS-261961

Guide--Exhaust Valve

$14.99

$

Usually ships in 2-12 days

0

Cub Cadet BS-231218

Guide--Intake Valve

$14.99

$

In Stock, only 2 left!

0

1019

Cub Cadet BS-491254

Label Kit

$27.99

$

Usually ships in 2-12 days

0

Cub Cadet BS-493263

Gasket Set

$

$

Not available
