10357 - Lawn-Boy Silver Series Walk-Behind Mower (SN: 240000001 - 240999999) (2004) ELECTRICAL ASSEMBLY Parts Diagram

Silver Series Walk-Behind Mower

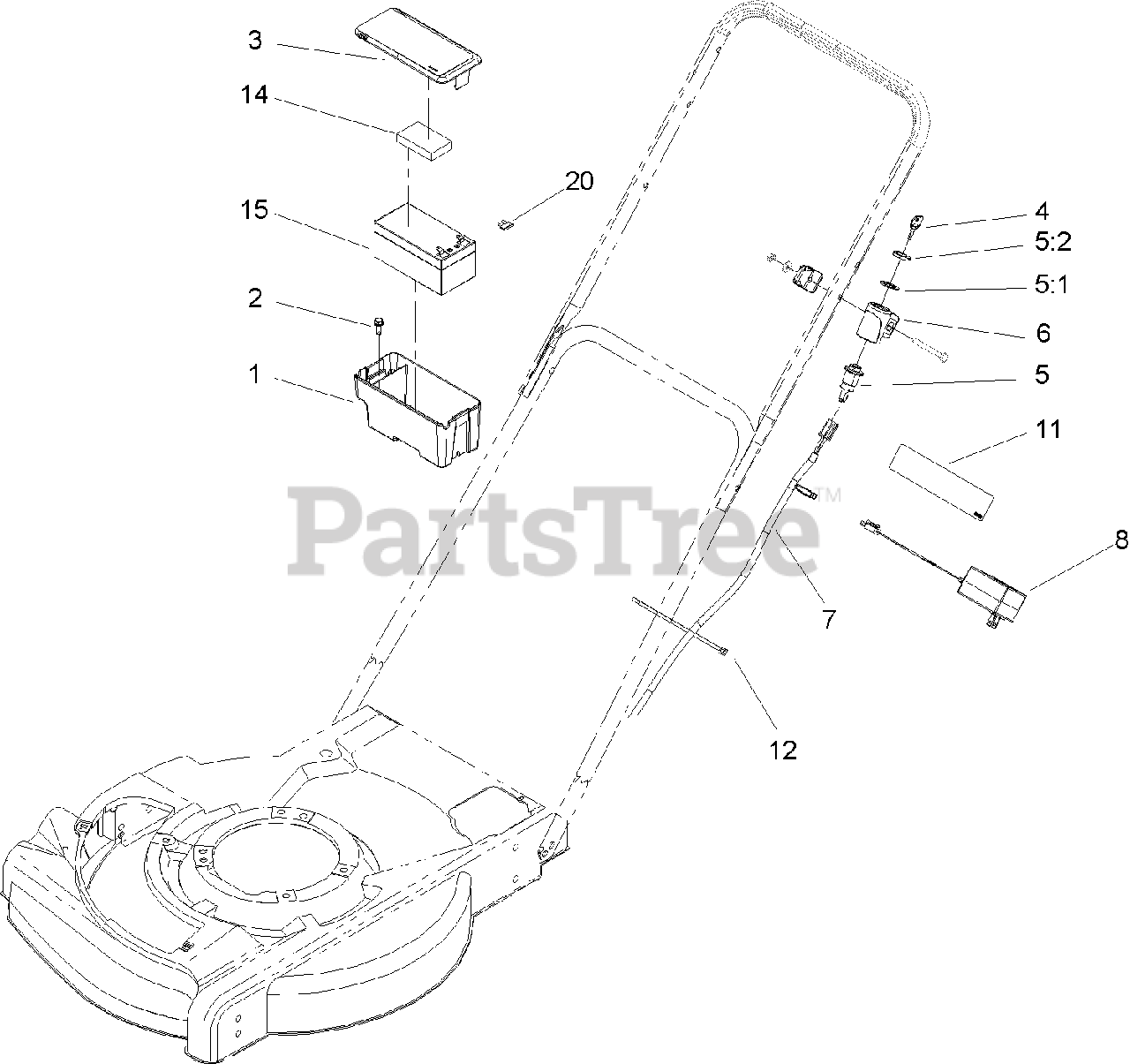

ELECTRICAL ASSEMBLY Parts Diagram

  • Title

1

Lawn-Boy 106-3996

Box-Battery
(Superseded to 108-4844)

$23.99

$

Usually ships in 3-6 days

0

2

Lawn-Boy 104-7649

SCREW-TEK
(Superseded to 105-0618)

$0.99

$

In Stock, Qty 12

0

3

Lawn-Boy 106-3997

Cover-Battery
(Superseded to 108-4844)

Note: For Serial Range 240000001 through 240000625

$23.99

$

Usually ships in 3-6 days

0

3

Lawn-Boy 107-3758

COVER-BATTERY
(Superseded to 108-4844)

Note: For Serial Range 240000626 and up

$23.99

$

Usually ships in 3-6 days

0

4

Lawn-Boy 98-4486

KEY-IGNITION

$2.99

$

Usually ships in 3-6 days

0

5

Lawn-Boy 46-5780

SWITCH-STARTER

$29.99

$

In Stock, Qty 14

0

5:1

Lawn-Boy 3254-5

WASHER-TOOTH

$1.49

$

In Stock, Qty 11

0

5:2

Lawn-Boy 218-461

NUT-HH

$3.99

$

In Stock, Qty 17

0

6

Lawn-Boy 104-8692

Mount-Switch
(Superseded to 108-9760)

$5.99

$

In Stock, Qty 10

0

7

Lawn-Boy 106-8359

HARNESS-WIRE

$

$

Not available

8

Lawn-Boy 104-7401

CHARGER-12 VOLT
(Superseded to 136-9126)

Note: Not illustrated

$39.99

$

In Stock, Qty 12

0

11

Lawn-Boy 104-7953

DECAL-HARNESS

Note: Not illustrated

$8.99

$

Usually ships in 3-6 days

0

12

Lawn-Boy 614249

STRAP-TIE

$1.49

$

In Stock, Qty 20+

0

14

Lawn-Boy 106-3994

Foam-Battery

Note: For Serial Range 240000001 through 240000625

$1.99

$

In Stock, only 2 left!

0

14

Lawn-Boy 107-3774

FOAM-BATTERY, TOP

Note: For Serial Range 240000626 and up

$4.99

$

In Stock, only 4 left!

0

15

Lawn-Boy 106-8397

BATTERY-12 VOLT

$79.99

$

In Stock, Qty 12

0

20

Lawn-Boy 99-6124

FUSE-40 AMP

$4.99

$

In Stock, Qty 12

0
