10360 - Lawn-Boy Silver Series Walk-Behind Mower (SN: 210000001 - 210999999) (2001) HOUSING, HANDLE BRACKET AND WHEEL ASSEMBLY Parts Diagram

Silver Series Walk-Behind Mower

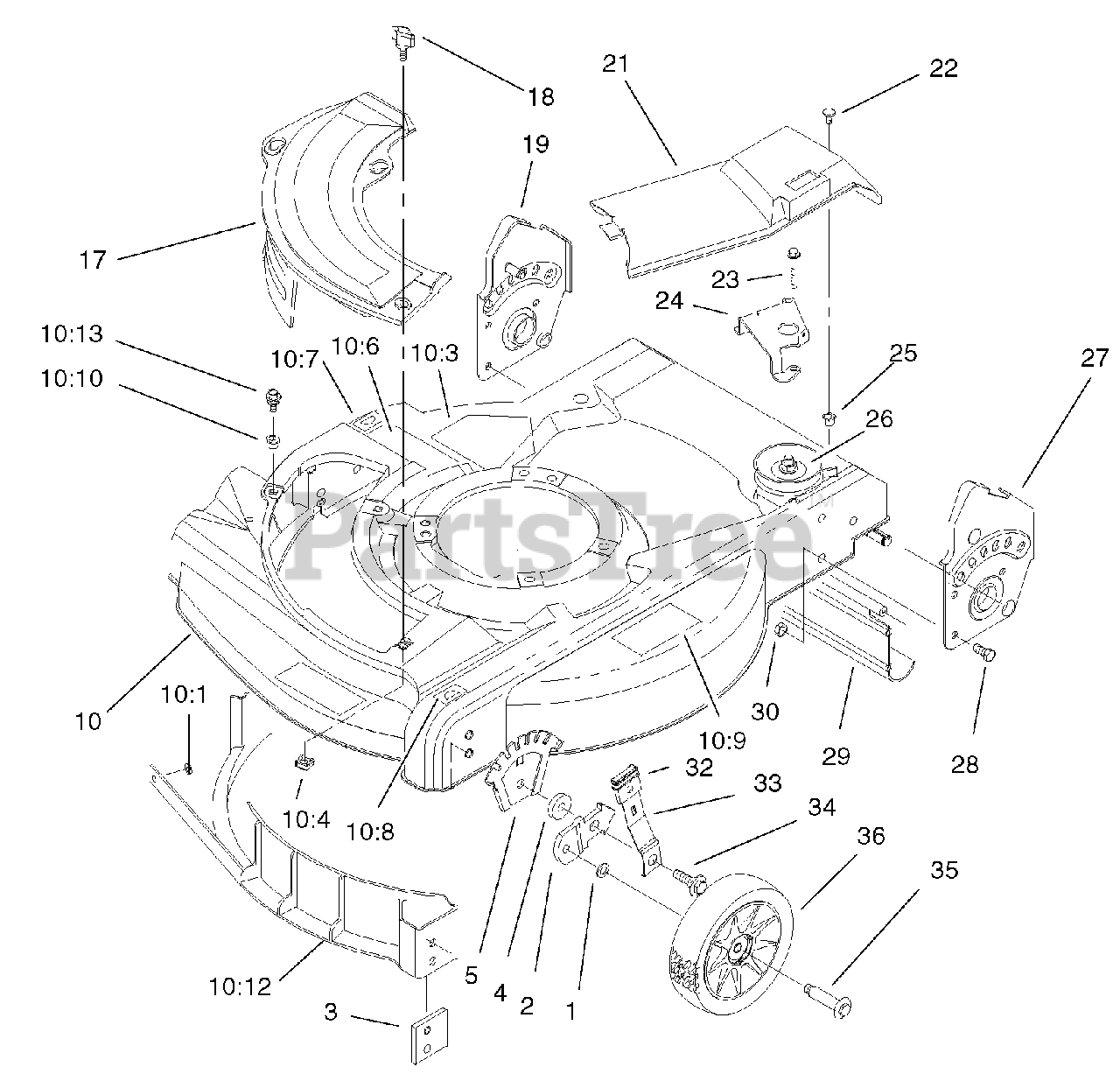

HOUSING, HANDLE BRACKET AND WHEEL ASSEMBLY Parts Diagram

  • Title

1

Lawn-Boy 40-1940

Washer

$2.99

$

In Stock, Qty 20+

0

2

Lawn-Boy 95-7403-03

Bracket-Wheel Height Adjustment

$

$

Not available

3

Lawn-Boy 92-7731

Plate-Baffle

$8.99

$

Usually ships in 3-6 days

0

4

Lawn-Boy 92-4890

Washer-Wheel

$8.99

$

Usually ships in 3-6 days

0

5

Lawn-Boy 92-4881-03

Plate-Height Adjustment

$25.99

$

Usually ships in 3-6 days

0

10

Lawn-Boy 98-4477

Deck ASM

$293.99

$

Usually ships in 3-6 days

0

10:1

Lawn-Boy 3269-26

Washer-Flat

$1.49

$

Usually ships in 3-6 days

0

10:3

Lawn-Boy 43-8480

Decal-Danger

$6.49

$

In Stock, Qty 8

0

10:4

Lawn-Boy 613765

Nut-Cage

$8.49

$

In Stock, Qty 11

0

10:6

Lawn-Boy 99-6018

Decal-Warning

$2.49

$

Usually ships in 3-6 days

0

10:7

Lawn-Boy 92-2914

Decal-HOC, RH

$

$

Not available

10:8

Lawn-Boy 92-2915

Decal-HOC, LH

$5.49

$

Usually ships in 3-6 days

0

10:9

Lawn-Boy 93-7250

Decal-Warning

$14.99

$

In Stock, only 2 left!

0

10:10

Lawn-Boy 94-1610

Grommet-Plastic

$0.99

$

In Stock, Qty 20+

0

10:12

Lawn-Boy 92-7719

Insert-Housing

$

$

Currently unavailable

10:13

Lawn-Boy 614677

Screw-Sems

$3.99

$

In Stock, Qty 20+

0

17

Lawn-Boy 92-8630

Plate-Mulch

$

$

Not available

18

Lawn-Boy 98-8332

Knob

$5.49

$

In Stock, Qty 13

0

19

Lawn-Boy 92-7723

Handle Bracket ASM-RH
(Superseded to 105-8602)

$45.99

$

In Stock, only 1 left!

0

21

Lawn-Boy 95-7068

Cover-Drive

$25.99

$

In Stock, only 1 left!

0

22

Lawn-Boy 92-9665

Screw

$1.99

$

In Stock, Qty 11

0

23

Lawn-Boy 65-5221

Screw-HWHTF

$1.99

$

Usually ships in 3-6 days

0

24

Lawn-Boy 92-7728-03

Guide-Transmission

$7.99

$

In Stock, only 1 left!

0

25

Lawn-Boy 605120

Grommet

$3.99

$

In Stock, Qty 16

0

26

Lawn-Boy 104-7671

Gear Case ASM

$

$

Not available

27

Lawn-Boy 92-7724

Handle Bracket ASM-LH
(Superseded to 105-8604)

$47.99

$

Usually ships in 3-6 days

0

28

Lawn-Boy 322-3

Screw-HH

$0.99

$

In Stock, Qty 20+

0

29

Lawn-Boy 92-8647

Shield-Trailing

$35.99

$

In Stock, Qty 9

0

30

Lawn-Boy 3296-29

Nut-Lock

$2.49

$

In Stock, Qty 20+

0

32

Lawn-Boy 92-1008

Knob-Lever, Height Adjustment

$12.99

$

In Stock, only 3 left!

0

33

Lawn-Boy 614687

Arm-Front Spring

$21.99

$

In Stock, only 3 left!

0

34

Lawn-Boy 614672

Bolt-Shoulder

$2.99

$

In Stock, Qty 9

0

35

Lawn-Boy 92-1099

Bolt-Shoulder

$7.49

$

In Stock, Qty 10

0

36

Lawn-Boy 684776

Wheel & Tire ASM

$33.99

$

In Stock, Qty 20+

0

Lawn-Boy 95-7052

Plate-Chute Opening

Note: Not illustrated

$30.99

$

In Stock, only 1 left!

0
