105-9361 - Toro Exhaust Kit for 100-Series Z Master EXHAUST ASSEMBLY Parts Diagram

Exhaust Kit for 100-Series Z Master

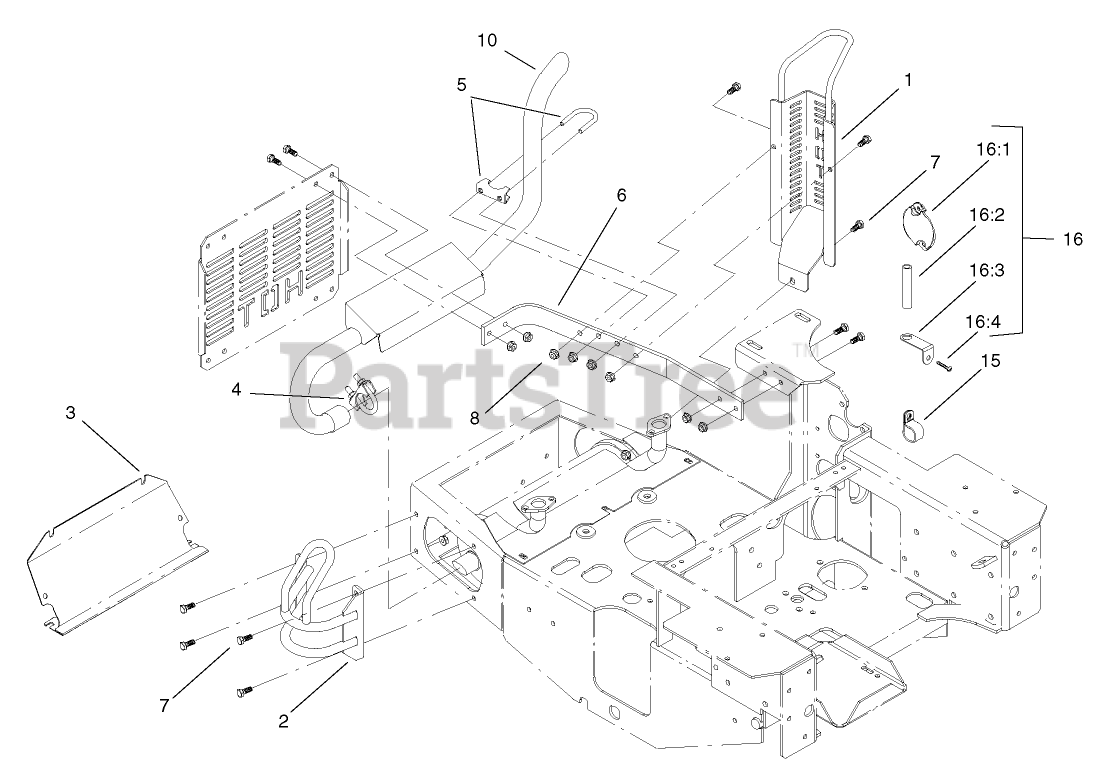

EXHAUST ASSEMBLY Parts Diagram

  • Title

1

Toro 103-2566-03

LH Exhaust Guard ASM

$163.99

$

Usually ships in 3-6 days

0

2

Toro 103-2564-03

RH Exhaust Guard ASM

$163.99

$

Usually ships in 3-6 days

0

3

Toro 103-2560-03

Shield-Heat

$156.99

$

Usually ships in 3-6 days

0

4

Toro 103-2630

CLAMP

$7.99

$

Usually ships in 3-6 days

0

5

Toro 103-2631

CLAMP

$6.49

$

Usually ships in 3-6 days

0

6

Toro 103-2751-03

Strap,Eng Guard LH Exhaust

$

$

Not available

7

Toro 322-3

SCREW-HH

$0.99

$

In Stock, Qty 20+

0

8

Toro 32128-20

NUT-HF

$1.49

$

In Stock, Qty 20+

0

10

Toro 103-2599

TAILPIPE

$160.99

$

In Stock, only 1 left!

0

14

Toro 103-2644

DECAL-EXHAUST

Note: Not illustrated

$2.99

$

In Stock, only 2 left!

0

15

Toro 1-643312

CLIP-LOOM

$6.49

$

Usually ships in 3-6 days

0

16

Shield-Heat, Fuel Pump

Note: Not serviced separately

$

$

Not available

16:1

Shield-Heat, Fuel Pump

Note: Not serviced separately

$

$

Not available

16:2

Tube-Vent

Note: Not serviced separately

$

$

Not available

16:3

Bracket

Note: Not serviced separately

$

$

Not available
