10528 - Lawn-Boy GoldPro Series Walk-Behind Mower (SN: 200000001 - 200999999) (2000) ENGINE-OVRM105-21038F Parts Diagram

GoldPro Series Walk-Behind Mower

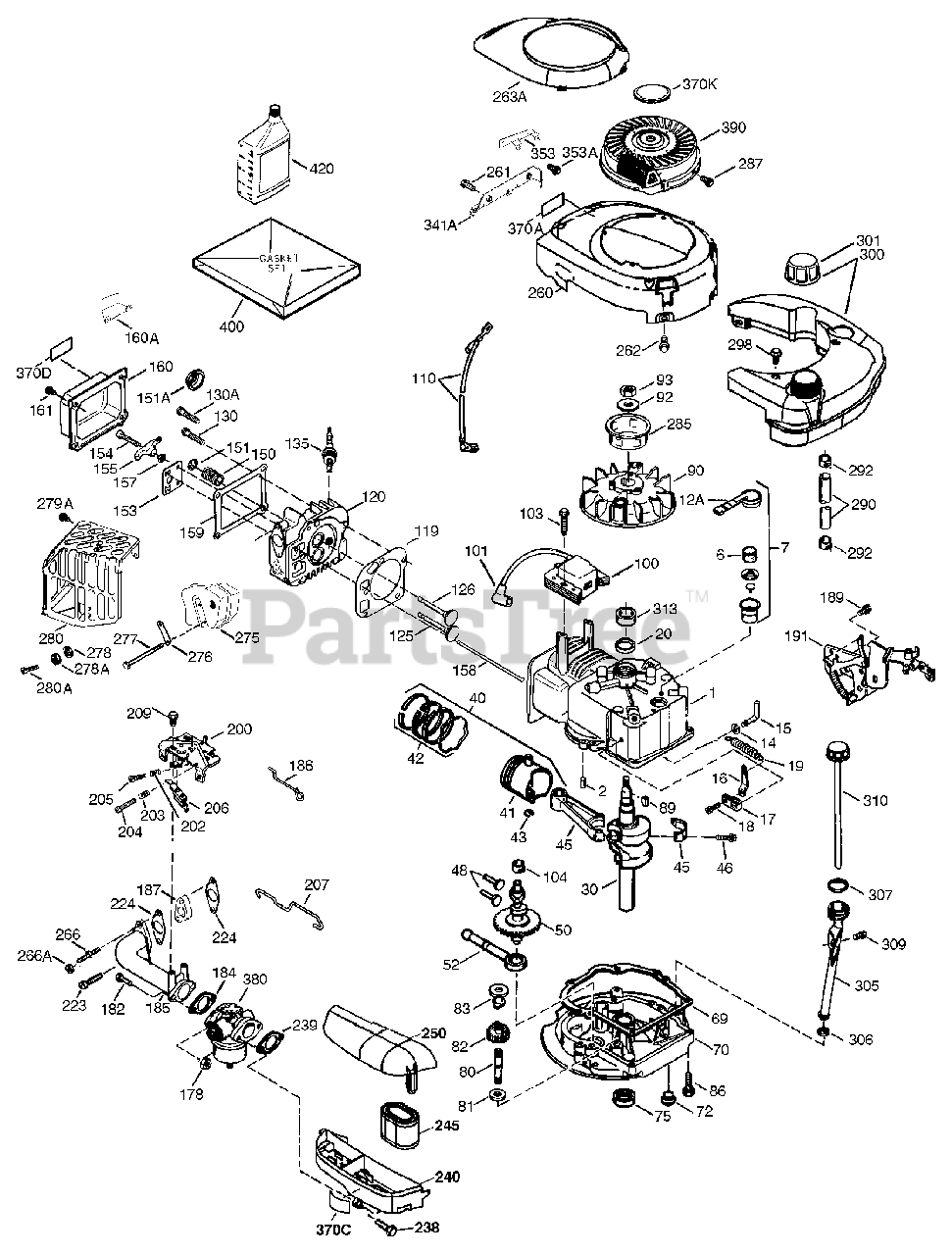

ENGINE-OVRM105-21038F Parts Diagram

  • Title

1

Lawn-Boy 36835A

Cylinder (Incl. 2 & 20)

Note: Obtain parts from local Tecumseh dealer

$

$

Currently unavailable

2

Lawn-Boy 26727

Dowel Pin

Note: Obtain parts from local Tecumseh dealer

$

$

Currently unavailable

6

Lawn-Boy 33734

Breather Element

Note: Obtain parts from local Tecumseh dealer

$

$

Currently unavailable

7

Lawn-Boy 36557

Breather Body ASM (Incl. 6 & 12A)

Note: Obtain parts from local Tecumseh dealer

$

$

Currently unavailable

12A

Lawn-Boy 36558

Breather Cover & Tube

Note: Obtain parts from local Tecumseh dealer

$

$

Currently unavailable

14

Lawn-Boy 28277

Washer

Note: Obtain parts from local Tecumseh dealer

$

$

Currently unavailable

15

Lawn-Boy 30589

Governor Rod (Incl. 14)

Note: Obtain parts from local Tecumseh dealer

$

$

Currently unavailable

16

Lawn-Boy 34839A

Governor Lever

Note: Obtain parts from local Tecumseh dealer

$

$

Currently unavailable

17

Lawn-Boy 31335

Governor Lever Clamp

Note: Obtain parts from local Tecumseh dealer

$

$

Currently unavailable

18

Lawn-Boy 651018

Screw, Torx T-15

Note: Obtain parts from local Tecumseh dealer

$

$

Currently unavailable

19

Lawn-Boy 36796

Extension Spring
(Superseded to 704882)

Note: Obtain parts from local Tecumseh dealer

$

$

Not available

20

Lawn-Boy 32600

Oil Seal

Note: Obtain parts from local Tecumseh dealer

$

$

Currently unavailable

30

Lawn-Boy 37510

Crankshaft

Note: Obtain parts from local Tecumseh dealer

$

$

Currently unavailable

40

Lawn-Boy 35544A

Piston, Pin & Ring Set (Std.)

Note: Obtain parts from local Tecumseh dealer

$

$

Currently unavailable

40

Lawn-Boy 35545A

Piston, Pin & Ring Set (.010" OS)

Note: Obtain parts from local Tecumseh dealer

$

$

Currently unavailable

40

Lawn-Boy 35546

Piston, Pin & Ring Set (.020" OS)

Note: Obtain parts from local Tecumseh dealer

$

$

Not available

41

Lawn-Boy 35541

Piston & Pin ASM (Std.)

Note: Obtain parts from local Tecumseh dealer

$

$

Currently unavailable

41

Lawn-Boy 35542

Piston & Pin ASM (.010" OS)(Incl. 43)

Note: Obtain parts from local Tecumseh dealer

$

$

Currently unavailable

41

Lawn-Boy 35543

Piston & Pin ASM (.020" OS)(Incl. 43)
(Superseded to 704767)

Note: Obtain parts from local Tecumseh dealer

$

$

Not available

42

Lawn-Boy 35547A

Ring Set (Std.)

Note: Obtain parts from local Tecumseh dealer

$

$

Currently unavailable

42

Lawn-Boy 35548A

Ring Set (.010" OS)

Note: Obtain parts from local Tecumseh dealer

$

$

Currently unavailable

42

Lawn-Boy 35549

Ring Set (.020" OS)

Note: Obtain parts from local Tecumseh dealer

$

$

Currently unavailable

43

Lawn-Boy 20381

Piston Pin Retaining Ring

Note: Obtain parts from local Tecumseh dealer

$

$

Currently unavailable

45

Lawn-Boy 32875A

Connecting Rod ASM (Incl. 46)

Note: Obtain parts from local Tecumseh dealer

$

$

Currently unavailable

46

Lawn-Boy 32610A

Connecting Rod Bolt

Note: Obtain parts from local Tecumseh dealer

$

$

Currently unavailable

48

Lawn-Boy 35616

Valve Lifter

Note: Obtain parts from local Tecumseh dealer

$

$

Currently unavailable

50

Lawn-Boy 37473

Camshaft

Note: Obtain parts from local Tecumseh dealer

$

$

Currently unavailable

52

Lawn-Boy 29914

Oil Pump ASM

Note: Obtain parts from local Tecumseh dealer

$

$

Currently unavailable

69

Lawn-Boy 35261

Mounting Flange Gasket

Note: Obtain parts from local Tecumseh dealer

$

$

Currently unavailable

70

Lawn-Boy 34311E

Mounting Flange (Incl. 72 thru 83)

Note: Obtain parts from local Tecumseh dealer

$

$

Currently unavailable

72

Lawn-Boy 36083

Oil Drain Plug

Note: Obtain parts from local Tecumseh dealer

$

$

Currently unavailable

75

Lawn-Boy 27897

Oil Seal

Note: Obtain parts from local Tecumseh dealer

$

$

Currently unavailable

80

Lawn-Boy 30574A

Governor Shaft

Note: Obtain parts from local Tecumseh dealer

$

$

Currently unavailable

81

Lawn-Boy 30590A

Washer

Note: Obtain parts from local Tecumseh dealer

$

$

Currently unavailable

82

Lawn-Boy 30591

Governor Gear ASM (Incl. 81)

Note: Obtain parts from local Tecumseh dealer

$

$

Currently unavailable

83

Lawn-Boy 30588A

Governor Spool

Note: Obtain parts from local Tecumseh dealer

$

$

Currently unavailable

86

Lawn-Boy 650488

Screw

Note: Obtain parts from local Tecumseh dealer

$

$

Currently unavailable

89

Lawn-Boy 611004

Flywheel Key

Note: Obtain parts from local Tecumseh dealer

$

$

Not available

90

Lawn-Boy 611112

Flywheel
(Superseded to 611113)

Note: Obtain parts from local Tecumseh dealer

$

$

Not available

92

Lawn-Boy 650815

Belleville Washer

Note: Obtain parts from local Tecumseh dealer

$

$

Currently unavailable

93

Lawn-Boy 650816

Flywheel Nut

Note: Obtain parts from local Tecumseh dealer

$

$

Currently unavailable

100

Lawn-Boy 34443B

Solid State Ignition

Note: Obtain parts from local Tecumseh dealer

$

$

Currently unavailable

101

Lawn-Boy 610118

Spark Plug Cover

Note: Obtain parts from local Tecumseh dealer

$

$

Currently unavailable

103

Lawn-Boy 651007

Screw, Torx T-15

Note: Obtain parts from local Tecumseh dealer

$

$

Currently unavailable

104

Lawn-Boy 37480

Cam Bushing

Note: Obtain parts from local Tecumseh dealer

$

$

Currently unavailable

110

Lawn-Boy 37047

Ground Wire

Note: Obtain parts from local Tecumseh dealer

$

$

Currently unavailable

119

Lawn-Boy 36738

Cylinder Head Gasket

Note: Obtain parts from local Tecumseh dealer

$

$

Currently unavailable

120

Lawn-Boy 37474

Cylinder Head

Note: Obtain parts from local Tecumseh dealer

$

$

Currently unavailable

125

Lawn-Boy 36471

Exhaust Valve (Std.)(Incl. 151)

Note: Obtain parts from local Tecumseh dealer

$

$

Not available

125

Lawn-Boy 36472

Exhaust Valve (1/32
(Superseded to 742719)

Note: Obtain parts from local Tecumseh dealer

$

$

Not available

126

Lawn-Boy 29314C

Intake Valve (Std.)(Incl. 151)

Note: Obtain parts from local Tecumseh dealer

$

$

Currently unavailable

130

Lawn-Boy 650912

Screw

Note: Obtain parts from local Tecumseh dealer

$

$

Currently unavailable

130A

Lawn-Boy 650999

Screw

Note: Obtain parts from local Tecumseh dealer

$

$

Currently unavailable

135

Lawn-Boy 34645

Resistor Spark Plug (RN4C)

Note: Obtain parts from local Tecumseh dealer

$

$

Currently unavailable

150

Lawn-Boy 31672

Valve Spring

Note: Obtain parts from local Tecumseh dealer

$

$

Currently unavailable

151

Lawn-Boy 31673

Valve Spring Cap
(Superseded to 742357)

Note: Obtain parts from local Tecumseh dealer

$

$

Not available

151A

Lawn-Boy 40016A

Intake Valve Seal

Note: Obtain parts from local Tecumseh dealer

$

$

Currently unavailable

153

Lawn-Boy 36649

Push Rod Guide
(Superseded to 742572)

Note: Obtain parts from local Tecumseh dealer

$

$

Not available

154

Lawn-Boy 650913

Rocker Arm Stud

Note: Obtain parts from local Tecumseh dealer

$

$

Currently unavailable

155

Lawn-Boy 35624A

Rocker Arm

Note: Obtain parts from local Tecumseh dealer

$

$

Currently unavailable

157

Lawn-Boy 650914

Lock Nut

Note: Obtain parts from local Tecumseh dealer

$

$

Currently unavailable

158

Lawn-Boy 36629

Push Rod

Note: Obtain parts from local Tecumseh dealer

$

$

Currently unavailable

159

Lawn-Boy 35626

Rocker Arm Cover

Note: Obtain parts from local Tecumseh dealer

$

$

Currently unavailable

160A

Lawn-Boy 37512

Heat Shield

Note: Obtain parts from local Tecumseh dealer

$

$

Currently unavailable

161

Lawn-Boy 30063

Screw, Torx T-30

Note: Obtain parts from local Tecumseh dealer

$

$

Currently unavailable

178

Lawn-Boy 29752

Nut & Lock Washer

Note: Obtain parts from local Tecumseh dealer

$

$

Currently unavailable

182

Lawn-Boy 30088A

Screw

Note: Obtain parts from local Tecumseh dealer

$

$

Currently unavailable

184

Lawn-Boy 26756

Carburetor To Intake Pipe Gasket

Note: Obtain parts from local Tecumseh dealer

$

$

Currently unavailable

185

Lawn-Boy 36579

Intake Pipe

Note: Obtain parts from local Tecumseh dealer

$

$

Currently unavailable

186

Lawn-Boy 36255

Governor Link

Note: Obtain parts from local Tecumseh dealer

$

$

Currently unavailable

187

Lawn-Boy 37203

Spacer

Note: Obtain parts from local Tecumseh dealer

$

$

Currently unavailable

189

Lawn-Boy 650839

Screw

Note: Obtain parts from local Tecumseh dealer

$

$

Currently unavailable

191

Lawn-Boy 36559A

S.E. Brake Bracket

Note: Obtain parts from local Tecumseh dealer

$

$

Currently unavailable

200

Lawn-Boy 37134

Control Bracket (Incl.

Note: Obtain parts from local Tecumseh dealer

$

$

Currently unavailable

202

Lawn-Boy 36482

Compression Spring

Note: Obtain parts from local Tecumseh dealer

$

$

Currently unavailable

203

Lawn-Boy 31342

Compression Spring

Note: Obtain parts from local Tecumseh dealer

$

$

Currently unavailable

204

Lawn-Boy 651029

Screw, Torx T-10

Note: Obtain parts from local Tecumseh dealer

$

$

Currently unavailable

205

Lawn-Boy 651019

Screw, Torx T-10

Note: Obtain parts from local Tecumseh dealer

$

$

Currently unavailable

206

Lawn-Boy 610973

Terminal

Note: Obtain parts from local Tecumseh dealer

$

$

Currently unavailable

207

Lawn-Boy 36200B

Throttle Link

Note: Obtain parts from local Tecumseh dealer

$

$

Currently unavailable

209

Lawn-Boy 30200

Screw

Note: Obtain parts from local Tecumseh dealer

$

$

Currently unavailable

223

Lawn-Boy 651044

Screw

Note: Obtain parts from local Tecumseh dealer

$

$

Currently unavailable

224

Lawn-Boy 36581

Intake Pipe Gasket

Note: Obtain parts from local Tecumseh dealer

$

$

Currently unavailable

238

Lawn-Boy 650806

Screw

Note: Obtain parts from local Tecumseh dealer

$

$

Currently unavailable

239

Lawn-Boy 34338

Air Cleaner Gasket

Note: Obtain parts from local Tecumseh dealer

$

$

Currently unavailable

240

Lawn-Boy 36743

Air Cleaner Body
(Superseded to 704866)

Note: Obtain parts from local Tecumseh dealer

$

$

Not available

245

Lawn-Boy 36745

Air Cleaner Filter
(Superseded to 700815)

Note: Obtain parts from local Tecumseh dealer

$5.49

$

Usually ships in 3-6 days

0

250

Lawn-Boy 36744

Air Cleaner Cover
(Superseded to 704867)

Note: Obtain parts from local Tecumseh dealer

$

$

Not available

260

Lawn-Boy 37513

Blower Housing

Note: Obtain parts from local Tecumseh dealer

$

$

Currently unavailable

261

Lawn-Boy 650853

Screw, Torx T-30

Note: Obtain parts from local Tecumseh dealer

$

$

Currently unavailable

262

Lawn-Boy 650831

Screw

Note: Obtain parts from local Tecumseh dealer

$

$

Currently unavailable

263A

Lawn-Boy 36758

Starter Grill

Note: Obtain parts from local Tecumseh dealer

$

$

Currently unavailable

266

Lawn-Boy 651040

Screw

Note: Obtain parts from local Tecumseh dealer

$

$

Currently unavailable

266A

Lawn-Boy 650852

Lockwasher

Note: Obtain parts from local Tecumseh dealer

$

$

Currently unavailable

275

Lawn-Boy 37275A

Muffler (Incl. 276 & 277)

Note: Obtain parts from local Tecumseh dealer

$

$

Currently unavailable

276

Lawn-Boy 36949

Locking Plate

Note: Obtain parts from local Tecumseh dealer

$

$

Currently unavailable

277

Lawn-Boy 651039

Screw

Note: Obtain parts from local Tecumseh dealer

$

$

Currently unavailable

278

Lawn-Boy 37209

Spacer

Note: Obtain parts from local Tecumseh dealer

$

$

Currently unavailable

278A

Lawn-Boy 30773

Bushing Control Lever

Note: Obtain parts from local Tecumseh dealer

$

$

Currently unavailable

279A

Lawn-Boy 30063

Screw, Torx

Note: Obtain parts from local Tecumseh dealer

$

$

Currently unavailable

280

Lawn-Boy 37515

Heat Shield-Muffler

Note: Obtain parts from local Tecumseh dealer

$

$

Currently unavailable

280A

Lawn-Boy 590568

Screw

Note: Obtain parts from local Tecumseh dealer

$

$

Currently unavailable

285

Lawn-Boy 35000A

Starter Cup

Note: Obtain parts from local Tecumseh dealer

$

$

Currently unavailable

287

Lawn-Boy 650926

Screw

Note: Obtain parts from local Tecumseh dealer

$

$

Currently unavailable

290

Lawn-Boy 34357

Fuel Line

Note: Obtain parts from local Tecumseh dealer

$

$

Currently unavailable

292

Lawn-Boy 26460

Fuel Line Clamp

Note: Obtain parts from local Tecumseh dealer

$

$

Currently unavailable

298

Lawn-Boy 28763

Screw

Note: Obtain parts from local Tecumseh dealer

$

$

Currently unavailable

300

Lawn-Boy 36757

Fuel Tank (Incl. 292 & 301)

Note: Obtain parts from local Tecumseh dealer

$

$

Currently unavailable

301

Lawn-Boy 36246

Fuel Cap

Note: Obtain parts from local Tecumseh dealer

$

$

Currently unavailable

305

Lawn-Boy 35577

Oil Fill Tube
(Superseded to 742451)

Note: Obtain parts from local Tecumseh dealer

$281.99

$

Usually ships in 3-6 days

0

306

Lawn-Boy 36996

"O"-Ring

Note: Obtain parts from local Tecumseh dealer

$

$

Currently unavailable

307

Lawn-Boy 35499

"O"-Ring

Note: Obtain parts from local Tecumseh dealer

$

$

Currently unavailable

309

Lawn-Boy 650562

Screw

Note: Obtain parts from local Tecumseh dealer

$

$

Currently unavailable

310

Lawn-Boy 35578

Dipstick
(Superseded to 742452)

Note: Obtain parts from local Tecumseh dealer

$

$

Not available

313

Lawn-Boy 34080

Spacer

Note: Obtain parts from local Tecumseh dealer

$

$

Currently unavailable

341A

Lawn-Boy 37511

Offset Bracket

Note: Obtain parts from local Tecumseh dealer

$

$

Currently unavailable

353

Lawn-Boy 37514

Bracket Spacer

Note: Obtain parts from local Tecumseh dealer

$

$

Currently unavailable

353A

Lawn-Boy 650477

Screw

Note: Obtain parts from local Tecumseh dealer

$

$

Currently unavailable

370A

Lawn-Boy 36261

Lubrication Decal

Note: Obtain parts from local Tecumseh dealer

$

$

Currently unavailable

370C

Lawn-Boy 37318

Primer Decal (3X)

Note: Obtain parts from local Tecumseh dealer

$

$

Not available

370D

Lawn-Boy 35977

Caution Decal

Note: Obtain parts from local Tecumseh dealer

$

$

Currently unavailable

370K

Lawn-Boy 36695

Starter Decal
(Superseded to 704857)

Note: Obtain parts from local Tecumseh dealer

$

$

Not available

380

Lawn-Boy 640281

Carburetor (Incl. 184)

Note: Obtain parts from local Tecumseh dealer

$

$

Currently unavailable

390

Lawn-Boy 590737

Rewind Starter

Note: Obtain parts from local Tecumseh dealer

$

$

Currently unavailable

400

Lawn-Boy 36806B

Gasket Set

Note: Obtain parts from local Tecumseh dealer

$

$

Currently unavailable

420

Lawn-Boy 730225A

SAE30 4-Cycle Engine Oil (Quart)

Note: Obtain parts from local Tecumseh dealer

$

$

Currently unavailable
