10551 - Lawn-Boy GoldPro Series Walk-Behind Mower (SN: 210000001 - 210999999) (2001) GEARCASE AND WHEEL ASSEMBLY Parts Diagram

GoldPro Series Walk-Behind Mower

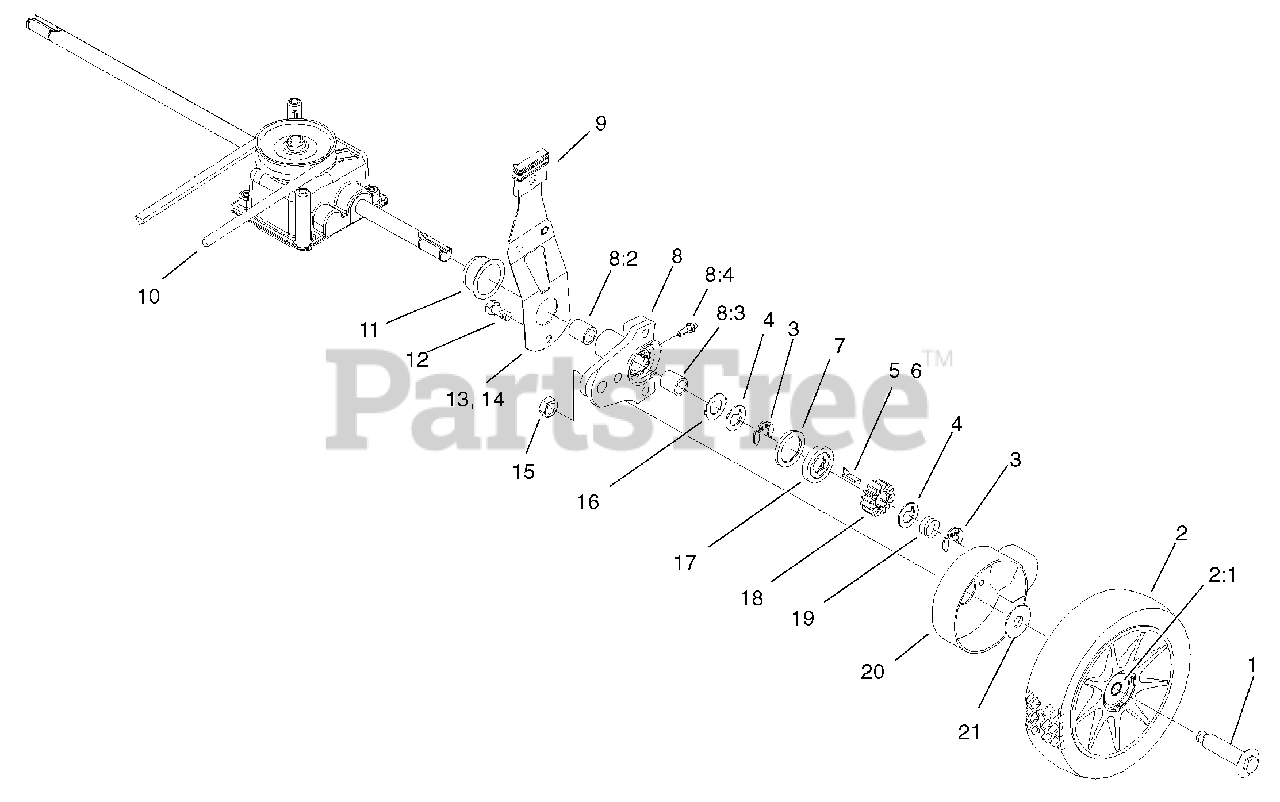

GEARCASE AND WHEEL ASSEMBLY Parts Diagram

  • Title

1

Lawn-Boy 92-1057

Bolt-Shoulder

$3.99

$

In Stock, Qty 12

0

2

Lawn-Boy 92-1042

Wheel & Tire ASM

$49.99

$

In Stock, Qty 13

0

2:1

Lawn-Boy 27-6250

Bushing

$2.99

$

In Stock, Qty 20+

0

3

Lawn-Boy 65-2720

Ring-Klip

$1.49

$

In Stock, Qty 20+

0

4

Lawn-Boy 65-4740

Washer-Thrust, Keyed

$2.49

$

In Stock, Qty 20+

0

5

Lawn-Boy 66-6050

Key-Rocking, LH
(Superseded to 139-6644)

$7.49

$

In Stock, Qty 20+

0

6

Lawn-Boy 66-6040

Key-Rocking, RH
(Superseded to 139-6643)

$7.49

$

In Stock, Qty 20+

0

7

Lawn-Boy 65-4710

Ring-Friction

$2.99

$

In Stock, Qty 20+

0

8

Lawn-Boy 92-7746

Rear Height Adjustment Arm ASM

$43.99

$

In Stock, only 4 left!

0

8:2

Lawn-Boy 70-9760

Bushing

$4.99

$

In Stock, Qty 17

0

8:3

Lawn-Boy 47-2900

Bushing

$6.49

$

In Stock, Qty 11

0

8:4

Lawn-Boy 302-56

Fitting-Zerk

$5.49

$

In Stock, Qty 8

0

9

Lawn-Boy 92-1008

Knob-Lever, Height Adjustment

$12.99

$

In Stock, only 2 left!

0

10

Lawn-Boy 62-3900

V-Belt

$22.99

$

In Stock, only 4 left!

0

11

Lawn-Boy 92-6535

Ring-Isolator

$7.49

$

In Stock, Qty 7

0

12

Lawn-Boy 32144-85

Screw-HH

$1.99

$

In Stock, Qty 20+

0

13

Lawn-Boy 92-6540

LH Rear Spring Arm ASM

$20.99

$

Usually ships in 3-6 days

0

14

Lawn-Boy 92-6539

RH Rear Spring Arm ASM

$20.99

$

Usually ships in 3-6 days

0

15

Lawn-Boy 603773

Nut

$2.99

$

In Stock, Qty 18

0

16

Lawn-Boy 65-4730

Washer-Arm, Pivot

$2.49

$

In Stock, Qty 20+

0

17

Lawn-Boy 65-4760

Washer-Clutch

$1.49

$

In Stock, Qty 20+

0

18

Lawn-Boy 65-4750

Gear-Pinion

$11.99

$

In Stock, Qty 20+

0

19

Lawn-Boy 65-4720

Spring-Compression

$1.49

$

In Stock, Qty 20+

0

20

Lawn-Boy 94-1609

Cover-Wheel

$8.99

$

In Stock, Qty 7

0

21

Lawn-Boy 614426

Washer-Stepped

$3.49

$

In Stock, Qty 20+

0
