10694 - Lawn-Boy Insight Gold Walk-Behind Mower (SN: 270000001 - 270999999) (2007) UPPER HANDLE ASSEMBLY Parts Diagram

Insight Gold Walk-Behind Mower

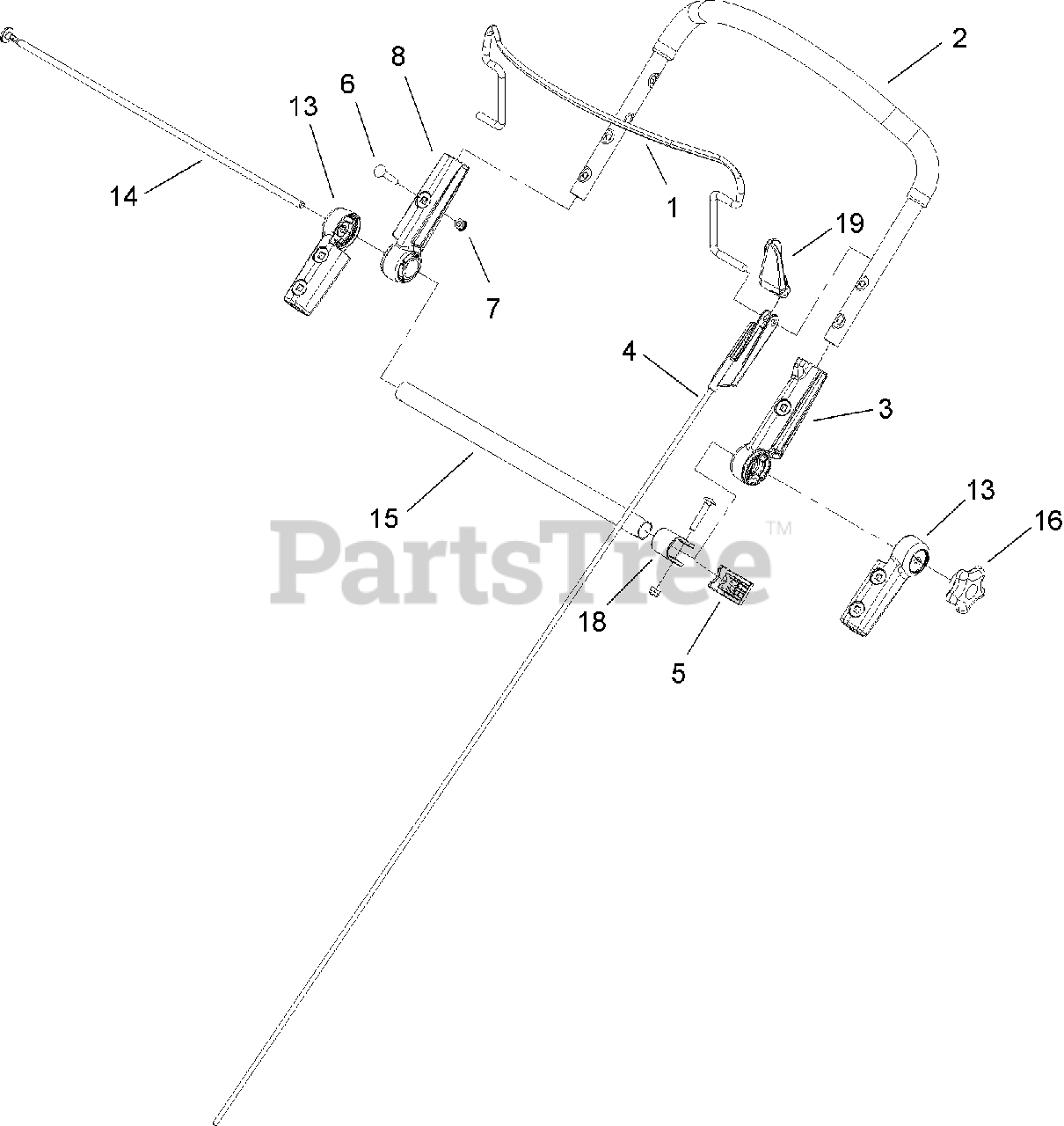

UPPER HANDLE ASSEMBLY Parts Diagram

  • Title

1

Lawn-Boy 112-1538-03

BAIL-BRAKE

$20.99

$

Usually ships in 3-6 days

0

2

Lawn-Boy 110-1752

HANDLE ASM

$

$

Not available

3

Lawn-Boy 110-1769

MOUNT-HANDLE, LH

$

$

Not available

4

Lawn-Boy 107-3903

CABLE-BRAKE

$48.99

$

In Stock, Qty 5

0

5

Lawn-Boy 108-1046

SUPPORT-GUIDE, CABLE

$6.49

$

In Stock, Qty 13

0

6

Lawn-Boy 108-0988

SCREW-CARR

$0.99

$

In Stock, Qty 10

0

7

Lawn-Boy 3296-73

NUT-LOCK, NI

$5.49

$

In Stock, Qty 20+

0

8

Lawn-Boy 110-1770

MOUNT-HANDLE, RH

$16.99

$

In Stock, only 1 left!

0

13

Lawn-Boy 107-3865

MOUNT-HANDLE, LOWER

$12.99

$

In Stock, only 2 left!

0

14

Lawn-Boy 107-3871

ROD-THREADED

$18.99

$

In Stock, only 2 left!

0

15

Lawn-Boy 107-3867-03

TUBE-CROSS

$24.99

$

Usually ships in 3-6 days

0

16

Lawn-Boy 107-3937

KNOB

$2.99

$

In Stock, only 4 left!

0

18

Lawn-Boy 108-1045

SUPPORT-CABLE

$6.49

$

In Stock, Qty 8

0

19

Lawn-Boy 112-8764

STOP-PIVOT

$4.99

$

In Stock, Qty 7

0
