10696 C - Lawn-Boy Insight Gold Walk-Behind Mower (SN: 250000001 - 250999999) (2005) ELECTRICAL START ASSEMBLY Parts Diagram

Insight Gold Walk-Behind Mower

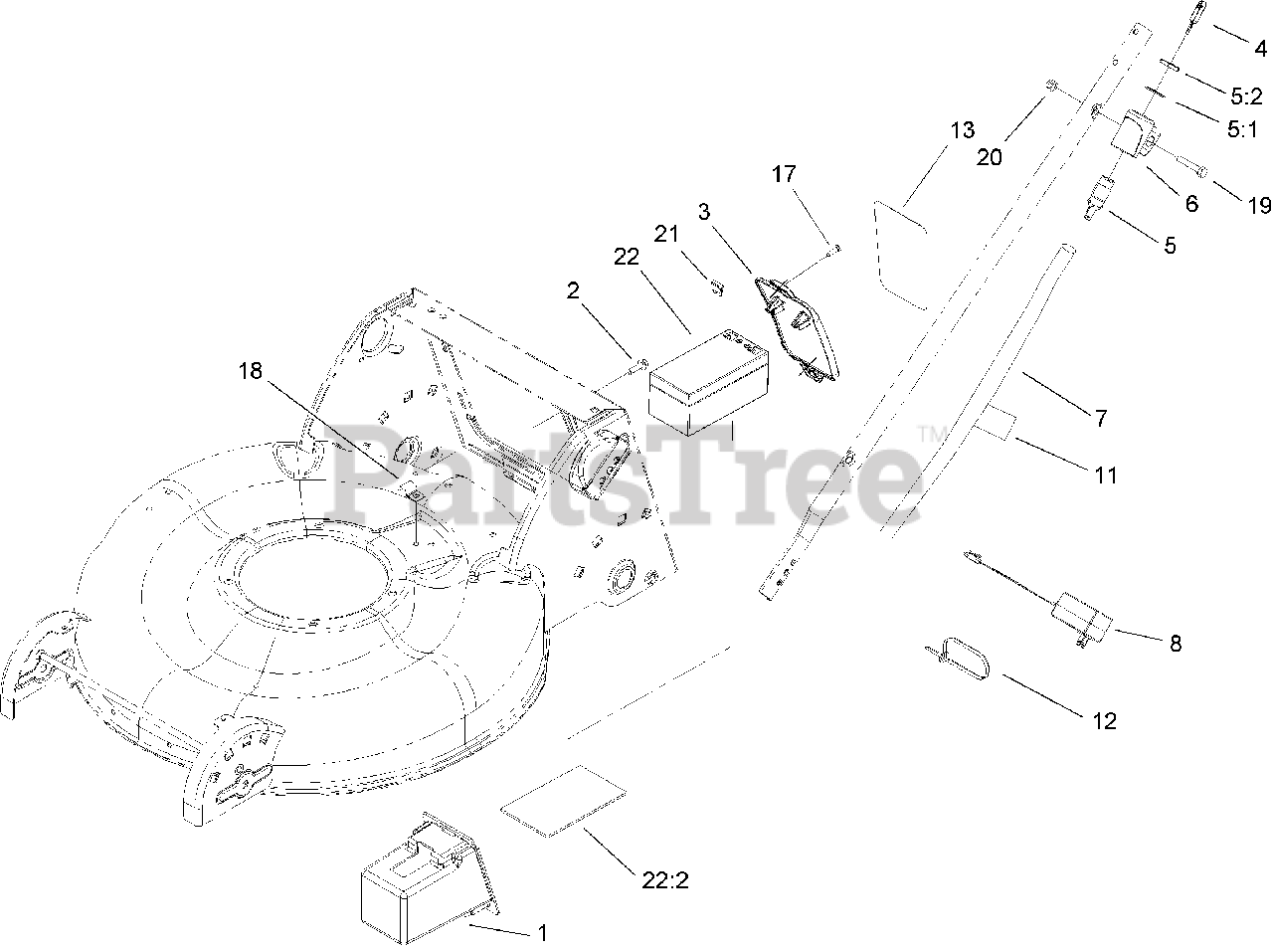

ELECTRICAL START ASSEMBLY Parts Diagram

  • Title

1

Lawn-Boy 107-3932

BOX-BATTERY

$18.99

$

Usually ships in 3-6 days

0

2

Lawn-Boy 46-8091

SCREW-HWH

$3.99

$

In Stock, Qty 20+

0

3

Lawn-Boy 108-0981

COVER-BATTERY

$12.99

$

Usually ships in 3-6 days

0

4

Lawn-Boy 700918

KEY

$6.49

$

In Stock, Qty 20+

0

5

Lawn-Boy 46-5780

SWITCH-STARTER

$29.99

$

In Stock, Qty 14

0

5:1

Lawn-Boy 3254-5

WASHER-TOOTH

$1.49

$

In Stock, Qty 11

0

5:2

Lawn-Boy 218-461

NUT-HH

$3.99

$

In Stock, Qty 17

0

6

Lawn-Boy 104-8692

Mount-Switch
(Superseded to 108-9760)

$5.99

$

In Stock, Qty 10

0

7

Lawn-Boy 108-0982

HARNESS-WIRE

$123.99

$

Usually ships in 3-6 days

0

8

Lawn-Boy 104-7401

CHARGER-12 VOLT
(Superseded to 136-9126)

$39.99

$

In Stock, Qty 12

0

11

Lawn-Boy 104-7953

DECAL-HARNESS

$8.99

$

Usually ships in 3-6 days

0

12

Lawn-Boy 614249

STRAP-TIE

$1.49

$

In Stock, Qty 20+

0

13

Lawn-Boy 108-0992

DECAL-INSTRUCTION, BATTERY

$6.49

$

Usually ships in 3-6 days

0

17

Lawn-Boy 32144-111

SCREW-PPH

$0.99

$

In Stock, Qty 20+

0

18

Lawn-Boy 2412-90

CLIP-HALF

$3.99

$

Usually ships in 3-6 days

0

19

Lawn-Boy 321-51

SCREW-HH

$1.49

$

In Stock, only 3 left!

0

20

Lawn-Boy 3296-73

NUT-LOCK, NI

$5.49

$

In Stock, Qty 20+

0

21

Lawn-Boy 99-6124

FUSE-40 AMP

$4.99

$

In Stock, Qty 12

0

22

Lawn-Boy 108-9358

BATTERY

$114.99

$

In Stock, only 4 left!

0

22:2

Lawn-Boy 108-0987

FOAM-BATTERY

$1.99

$

In Stock, only 4 left!

0
