10765 - Lawn-Boy Insight Platinum Walk-Behind Mower (SN: 290000001 - 290999999) (2009) BLADE AND ENGINE ASSEMBLY Parts Diagram

Insight Platinum Walk-Behind Mower

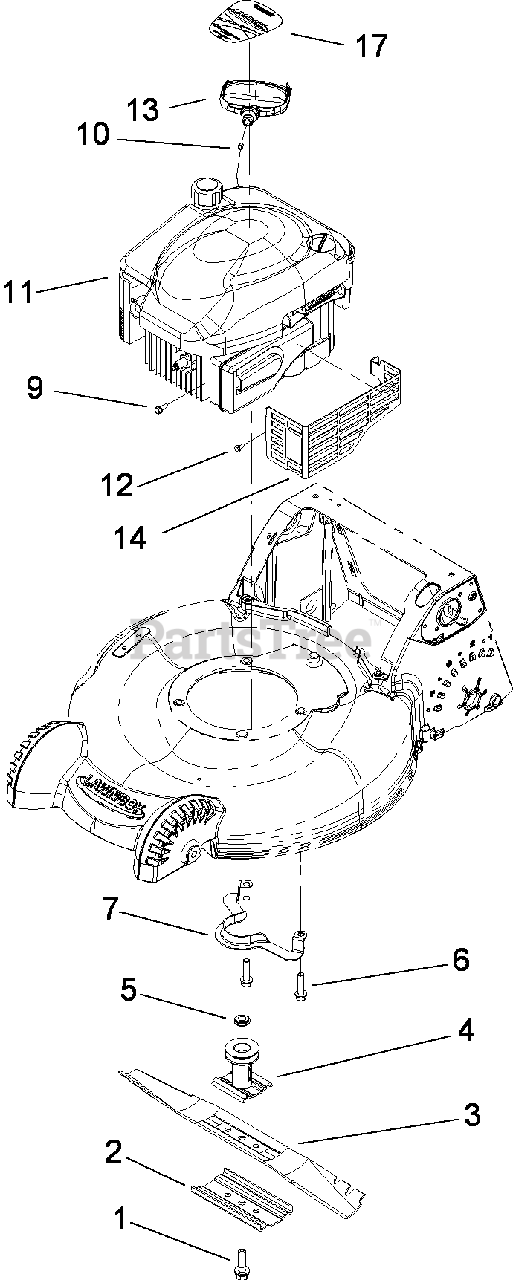

BLADE AND ENGINE ASSEMBLY Parts Diagram

  • Title

1

Lawn-Boy 105-8579

BOLT-BLADE
(Superseded to 125-2466)

$3.49

$

In Stock, Qty 20+

0

2

Lawn-Boy 108-3766-03

SUPPORT-BLADE

$10.99

$

In Stock, Qty 20+

0

3

Lawn-Boy 108-0954-03

BLADE-21 INCH
(Superseded to 133-8182-03)

$25.99

$

In Stock, Qty 11

0

4

Lawn-Boy 106-3987

BLADE DRIVER ASM

$30.99

$

In Stock, Qty 20+

0

5

Lawn-Boy 106-3999

Spacer-Driver

$3.49

$

In Stock, Qty 20+

0

6

Lawn-Boy 32144-102

SCREW-HWH

$3.49

$

Usually ships in 3-6 days

0

7

Lawn-Boy 108-8110-03

GUIDE-BELT

$15.99

$

In Stock, only 2 left!

0

9

Lawn-Boy 32144-85

SCREW-HWH

$1.99

$

In Stock, Qty 20+

0

10

Lawn-Boy 2210-316

STOP-ROPE

$7.99

$

Usually ships in 3-6 days

0

11

ENGINE-BRIGGS AND STRATTON, 126T02-0181-B1

Note: Not serviced separately Obtain parts from www.briggsandstratton.com

$

$

Not available

12

Lawn-Boy 32144-1

SCREW-TAPTITE

$3.49

$

In Stock, Qty 18

0

13

Lawn-Boy 110-1778

HANDLE-RECOIL

$27.99

$

In Stock, Qty 8

0

14

Lawn-Boy 104-7577-03

SHIELD-MUFFLER

$25.99

$

Usually ships in 3-6 days

0

17

Lawn-Boy 114-2830

DECAL-ENGINE

$

$

Not available
