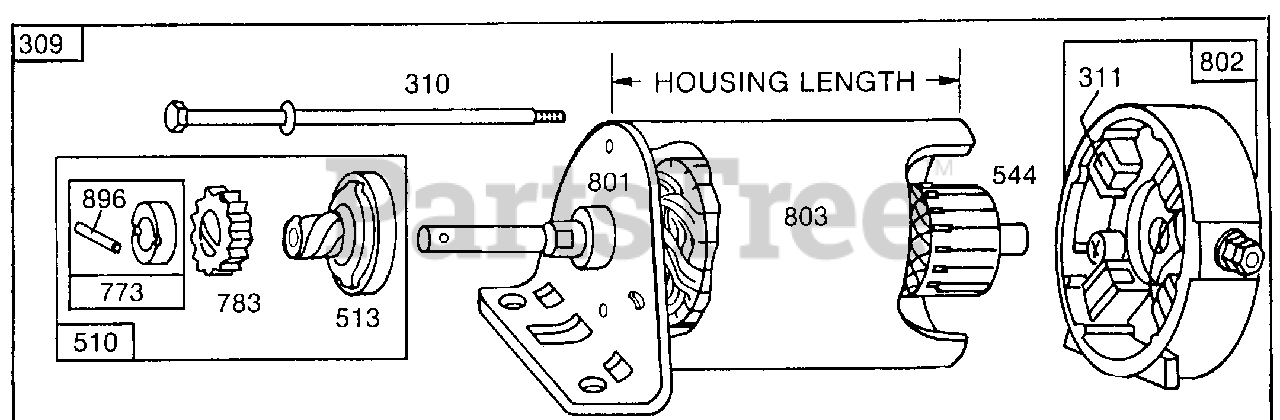

1106 (137-519-100) - Cub Cadet Rear-Engine Riding Mower Engine (1987) IC B&S 11.0 HP-253707-0247-01 Part 2 Parts Diagram

Rear-Engine Riding Mower Engine

IC B&S 11.0 HP-253707-0247-01 Part 2 Parts Diagram

  • Title

309

Cub Cadet BS-394805

Motor and Drive Ass'y.-Starting (12 Volt)
(Superseded to BS-497595)

$110.99

$

In Stock, only 4 left!

0

310

Cub Cadet BS-94003

Thru Bolt Assembly

$

$

Currently unavailable

311

Cub Cadet BS-395538

Brush Assembly

$24.99

$

Usually ships in 2-12 days

0

510

Cub Cadet BS-490421

Drive Assembly
(Superseded to BS-696540)

Note: (Incl. Ref. Nos. 513, 783, 876 & 896)

$29.99

$

In Stock, only 1 left!

0

513

Cub Cadet BS-398003

Clutch Assembly
(Superseded to BS-692024)

$21.99

$

Usually ships in 2-12 days

0

544

Cub Cadet BS-390837

Armature Assembly

$159.99

$

In Stock, only 1 left!

0

773

UNKNOWN

$

$

Not available

783

Cub Cadet BS-280104

Gear
(Superseded to BS-695708)

$6.99

$

In Stock, Qty 20+

0

801

Cub Cadet BS-394857

End Cap Assembly Drive

$56.99

$

Usually ships in 2-12 days

0

802

Cub Cadet BS-395537

End Cap Assembly Commutator (Incl. Brush Set)

$54.99

$

In Stock, only 1 left!

0

803

Cub Cadet BS-393825

Housing Assembly

$

$

Not available

896

Cub Cadet BS-94288

Roll Pin
(Superseded to BS-691641)

$4.99

$

In Stock, only 1 left!

0
