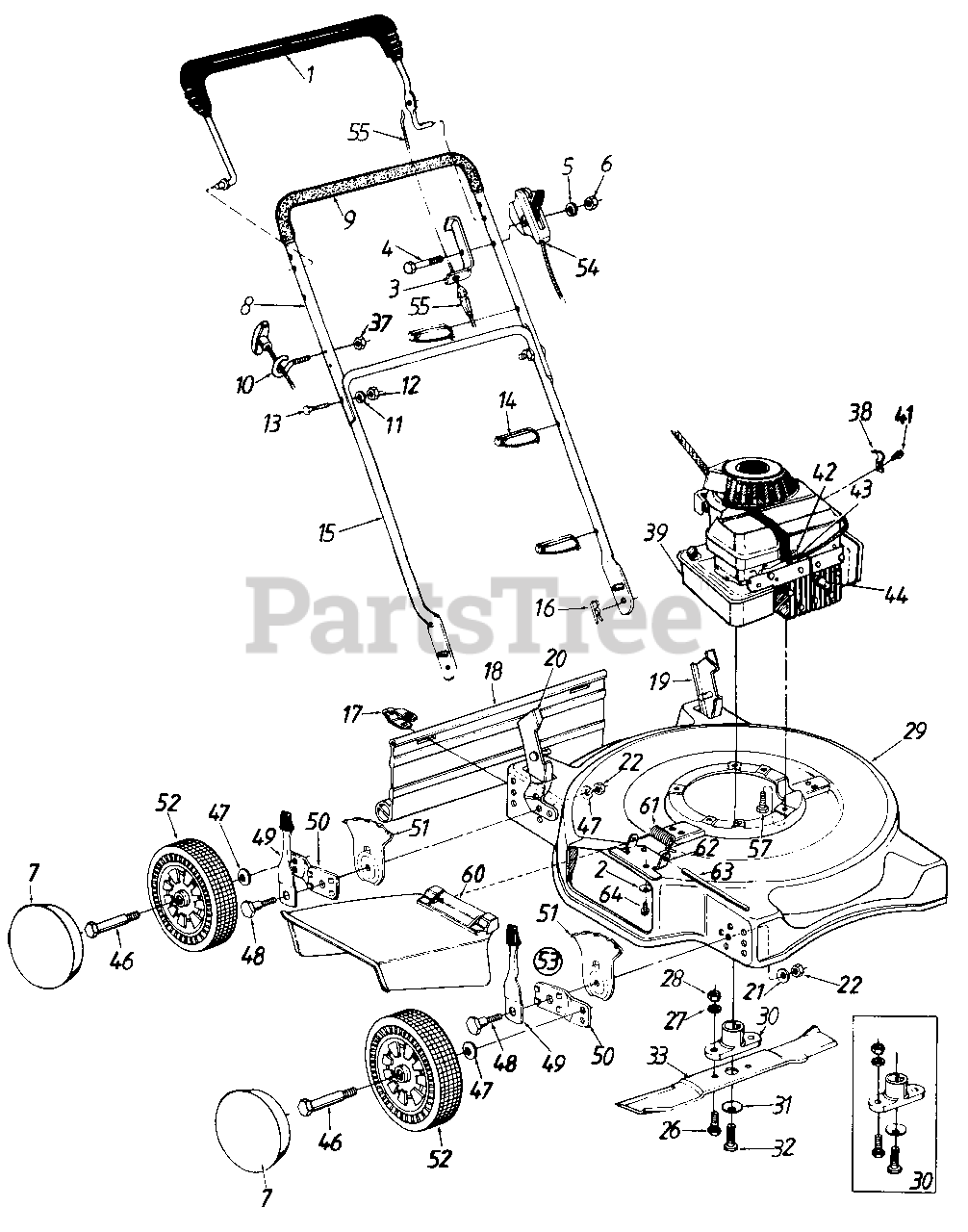

111-072R190 - White Outdoor 20" Walk-Behind Mower (1991) Mower Assembly Parts Diagram

20" Walk-Behind Mower

Mower Assembly Parts Diagram

  • Title

1

White Outdoor 731-1135

Control Handle Ass'y.
(Superseded to 747-0748)

$

$

Not available

2

White Outdoor 736-0270

Bell-Wash. 1/4" I.D.

$3.99

$

In Stock, Qty 9

0

3

White Outdoor 17174

Cable Brkt.

$

$

Not available

4

White Outdoor 710-1216

Hex Bolt 1/4-20 x 1.875" Lg.

$

$

Not available

5

White Outdoor 736-0175

Spr. Wash. 1/4" I.D.
(Superseded to 936-0175)

$3.99

$

In Stock, only 3 left!

0

6

White Outdoor 712-0287

Hex Nut 1/4-20 Thd.
(Superseded to 912-0287)

$4.99

$

In Stock, only 3 left!

0

7

White Outdoor 731-0981A

Hub Cap
(Superseded to 731-0981C)

$10.99

$

In Stock, Qty 6

0

8

White Outdoor 749-0756A

Upper Handle

$

$

Not available

9

White Outdoor 720-0226

Foam Grip
(Superseded to 720-0295)

$33.99

$

Usually ships in 3-6 days

0

10

White Outdoor 747-1205

Rope Guide
(Superseded to 710-1205)

$3.99

$

In Stock, Qty 13

0

11

White Outdoor 736-0119

L-Wash. 5/16" I.D.
(Superseded to 936-0119)

$4.99

$

In Stock, Qty 20+

0

12

White Outdoor 712-0267

Hex Nut 5/16-18 Thd.
(Superseded to 912-3010)

$

$

Not available

13

White Outdoor 710-0671

Curved Carriage Bolt 5/16-18 x 1.38" Lg.

$

$

Not available

14

White Outdoor 726-0240

Cable Tie
(Superseded to 725-0157)

$3.99

$

In Stock, only 4 left!

0

15

White Outdoor 749-0372B

Lower Handle
(Superseded to 749-0928A)

$33.99

$

In Stock, Qty 8

0

16

White Outdoor 714-0104

Hairpin Cotter

$4.49

$

In Stock, Qty 20+

0

17

White Outdoor 17098

Hinge Clip
(Superseded to 17098P)

$

$

Not available

18

White Outdoor 731-0872

Rear Flap
(Superseded to 731-0872B)

$39.99

$

In Stock, Qty 6

0

19

White Outdoor 17189

Handle Bracket Ass'y.-L.H.
(Superseded to 17189B-0637)

$

$

Not available

20

White Outdoor 17188

Handle Bracket Ass'y.-R.H.
(Superseded to 17188B-0637)

$

$

Not available

21

White Outdoor 736-0356

Bell-Wash. .39" I.D. x 1.38"
(Superseded to 936-0356)

$

$

Not available

22

White Outdoor 712-0798

Hex Nut 3/8-16 Thd.

$4.49

$

In Stock, only 2 left!

0

26

White Outdoor 710-1055

Hex Bolt 3/8-24 x 1" Lg.

$4.99

$

Usually ships in 3-6 days

0

27

White Outdoor 736-0169

L-Wash. 3/8" I.D.

$3.99

$

In Stock, Qty 20+

0

28

White Outdoor 712-0241

Hex Nut 3/8-24 Thd.

$4.49

$

In Stock, Qty 20+

0

29

White Outdoor 17036

20" Deck Ass'y.

Variations

White Outdoor 17036-0480

No Longer Available DECK ASSEMBLY-20IN - BRILLIANT GREEN (0480)

$

$

Not available

White Outdoor 17036-0483

DECK ASSEMBLY-20IN - CHARCOAL GRAY (0483)

$

$

Not available

White Outdoor 17036-0498

No Longer Available DECK ASSEMBLY-20IN - OLD CUB YELLOW (0498)

$

$

Not available

White Outdoor 17036-0629

DECK ASSEMBLY-20IN - SILVER FLAKE (0629)

$

$

Not available

White Outdoor 17036-0638

No Longer Available DECK ASSEMBLY-20IN - MTD/TROY-BILT RED (0638)

$

$

Not available

White Outdoor 17036-0662

No Longer Available DECK ASSEMBLY-20IN - OYSTER GRAY (0662)

$

$

Not available

$

$

30

White Outdoor 753-0484

Blade Adapter Kit

$23.99

$

In Stock, only 1 left!

0

31

White Outdoor 736-0452

Bell-Wash..39" I.D.

$4.99

$

In Stock, Qty 15

0

32

White Outdoor 710-1044

Hex Bolt 3/8-24 x 1.5" Lg.

$3.99

$

In Stock, Qty 20+

0

33

White Outdoor 742-0520

20" Blade
(Superseded to 942-0620)

$

$

Not available

37

White Outdoor 712-0324

Hex L-Nut 1/4-20 Thd.

$3.99

$

In Stock, Qty 20+

0

38

White Outdoor 12894A

Cable Clamp

$

$

Not available

39

Engine

$

$

Not available

41

White Outdoor 710-0429

Hex B-Tap Scr. #10 x .38"
(Superseded to 910-0429)

$3.99

$

Usually ships in 3-6 days

0

42

White Outdoor 751-0369

Cable Clamp

$

$

Not available

43

White Outdoor 710-0227

Hex AB-Tap Scr. #8 x .38"

$4.49

$

In Stock, Qty 20+

0

44

White Outdoor 735-0639

Spark Plug Boot

$

$

Not available

46

Axle Bolt

$

$

Not available

47

White Outdoor 736-0105

Bell-Wash. .400" I.D. x .88"

$4.49

$

In Stock, Qty 20+

0

48

White Outdoor 738-0507B

Shld. Bolt .50" Dia. x .357"

$4.49

$

In Stock, Qty 20+

0

49

White Outdoor 14832

Spring Lever Ass'y. w/Knob
(Superseded to 94832)

$10.99

$

In Stock, Qty 8

0

50

White Outdoor 15262B

Pivot Bar

Variations

White Outdoor 15262B-0637

PIVOT BAR - POWDER BLACK (0637)

$14.99

$

Usually ships in 3-6 days

0

$14.99

$

Usually ships in 3-6 days

0

51

White Outdoor 15261A

Height Adj. Plate
(Superseded to 787-01290A)

$12.99

$

In Stock, only 2 left!

0

52

White Outdoor 734-1513B

Wheel Ass'y. Comp.
(Superseded to 753-08093)

$45.99

$

In Stock, Qty 10

0

53

White Outdoor 14578

Height Adj. Ass'y. Comp.- 0 R.F. & L.R.
(Superseded to 753-06761)

$65.99

$

In Stock, Qty 7

0

White Outdoor 14579

Height Adj. Ass'y. Comp.- 0 L.F. & R.R.
(Superseded to 753-06761)

$65.99

$

In Stock, Qty 7

0

54

White Outdoor 746-0801

Throttle Control Ass'y. Comp.- 0 51 .6211
(Superseded to 946-0802A)

$60.99

$

In Stock, only 1 left!

0

55

White Outdoor 746-0553

Control Cable-36"
(Superseded to 946-0553)

$24.99

$

In Stock, only 1 left!

0

57

White Outdoor 710-0654A

Hex L-Wash. Hd. Scr. 3/8-16 x 1.0" Lg.

$4.49

$

In Stock, only 4 left!

0

60

White Outdoor 731-1034

Chute Deflector Ass'y.
(Superseded to 931-1034B)

$72.99

$

In Stock, Qty 12

0

61

White Outdoor 732-0593

Torsion Spring
(Superseded to 932-0593)

$4.99

$

In Stock, only 4 left!

0

62

White Outdoor 17032

Adapter Plate
(Superseded to 17032A)

$10.99

$

In Stock, only 3 left!

0

63

White Outdoor 747-0710

Hinge Pin
(Superseded to 747-0710A)

$4.49

$

In Stock, Qty 20+

0

64

White Outdoor 710-0599

Hex Self-Tap Scr. 1/4-20 x .5" Lg.

$4.49

$

In Stock, Qty 20+

0
