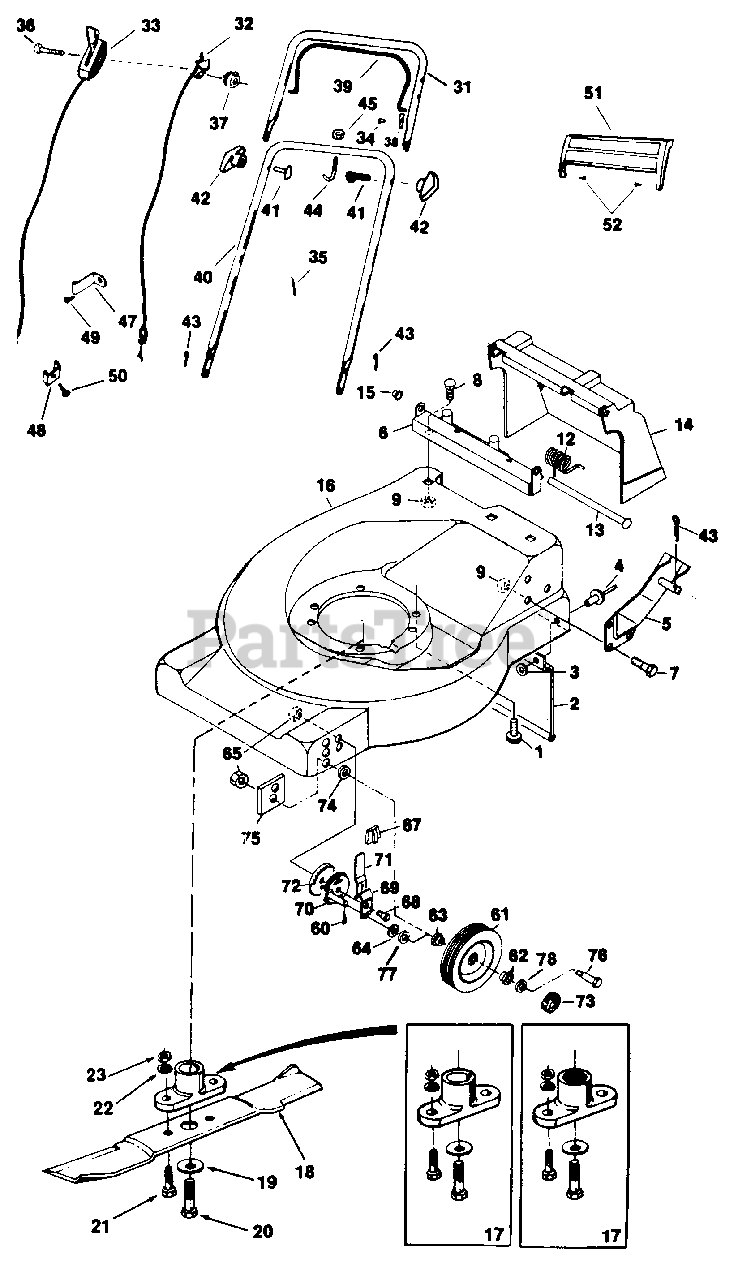

111-710R000 - MTD Walk-Behind Mower (1991) Parts Parts Diagram

Walk-Behind Mower

Parts Parts Diagram

  • Title

1

MTD 706-10605016

Engine Mounting Bolt

Note: (Special)

$

$

Currently unavailable

2

MTD 706-10795

Trail Shield

$

$

Not available

3

MTD 706-10099-01-05

Fl-Wash. 3/16" I.D.

$

$

Currently unavailable

4

MTD 706-10676

Blind Rivet
(Superseded to 928-0180)

$

$

Not available

5

MTD 706-13053-00-91

Handle Bracket Ass'y.

$

$

Not available

6

MTD 706-14093-00-91

Mount Bracket - Grass Catcher

$

$

Currently unavailable

7

MTD 706-10058-10

Hex Bolt 5/16-18 x 5/8" Lg.
(Superseded to 710-3038)

$4.99

$

In Stock, only 3 left!

0

8

MTD 706-10611-12

Carriage Bolt 5/16-18 x 3/4" Lg.
(Superseded to 710-0451)

$4.49

$

In Stock, Qty 20+

0

9

MTD 706-10003-02

Hex Keps Nut 5/16-18 Thd.

$

$

Not available

12

MTD 706-10238

Spring - Rear Door

$

$

Not available

13

MTD 706-14092-00-05

Hinge Pin - Rear Door

$

$

Currently unavailable

14

MTD 706-14091-00-90

Rear Door

$

$

Not available

15

MTD 706-10120

Retainer
(Superseded to 726-0135)

$6.99

$

In Stock, only 1 left!

0

16

MTD 706-11058-01-10

21" Steel Deck Ass'y.

$

$

Currently unavailable

17

MTD 753-0484

Blade Adapter Kit

Note: (For Keyed Shaft)

$23.99

$

In Stock, only 1 left!

0

MTD 753-0485

Blade Adapter Kit

Note: (For Splined Shaft)

$46.99

$

Usually ships in 3-6 days

0

18

MTD 742-0306A

21" Blade
(Superseded to 942-0621)

$29.99

$

In Stock, only 1 left!

0

19

MTD 736-0452

Bell-Wash. .39" I.D. x 1.14" O.D. (Keyed)

$4.99

$

In Stock, Qty 7

0

MTD 736-0453

Bell-Wash. .47" I.D. x 1.4" O. D .
(Superseded to 936-0453)

Note: (Spli ned)

$3.49

$

Usually ships in 3-6 days

0

20

MTD 710-1044

Hex Bolt 3/8-24 x 1 1/2" (Keyed)

$3.99

$

In Stock, Qty 10

0

MTD 710-0757

Hex Bolt 7/16-20 x 1 1/2 (Splined)

$9.99

$

In Stock, only 1 left!

0

21

MTD 710-1055

Hex Bolt 3/8-24 x 1" Lg.

$4.99

$

Usually ships in 3-6 days

0

22

MTD 736-0169

L-Wash. 3/8" I.D.

$3.99

$

In Stock, Qty 20+

0

23

MTD 712-0241

Hex Nut 3/8-24 Thd.

$4.49

$

In Stock, Qty 13

0

31

MTD 706-10753-00-90

Upper Handle

$

$

Not available

MTD 706-11038-07

Upper Handle w/Foam Grip

$

$

Not available

32

MTD 706-10979-04

Brake Cable

Note: (Std. B&S Engines)

$

$

Currently unavailable

MTD 706-14269-04

Brake Cable

Note: (B&S Quantum)

$

$

Not available

MTD 706-14269

Brake Cable

Note: (Tecumseh w/ Throttle)

$

$

Currently unavailable

MTD 706-14269-04

Brake Cable

Note: (Tecumseh w/ out Throttle)

$

$

Not available

33

MTD 746-0743

Throttle Control

Note: (Std. B&S Engines)

$

$

Not available

MTD 746-0820

Throttle Control
(Superseded to 946-0821A)

Note: (B&S Quantum)

$44.99

$

Usually ships in 3-6 days

0

MTD 746-0751

Throttle Control
(Superseded to 946-0821A)

Note: (Tecumseh Engines)

$44.99

$

Usually ships in 3-6 days

0

34

MTD 706-10604-08

Tapping Screw #10-32 x 1/2" Lg.

$

$

Not available

35

MTD 706-10748

Plastic Tie

$

$

Not available

36

MTD 710-0501

Hex Bolt 1/4-20 x 2" Lg.

$7.49

$

Usually ships in 3-6 days

0

MTD 710-0106

Hex Bolt 1/4-20 x 1 1/4 Lg.

Note: (Fixed Spd. Tec. Only)

$3.99

$

In Stock, only 2 left!

0

MTD 710-0641

Hex Bolt 1/4-20 x 2-1/4"

Note: (B&S Quantum Only)

$4.49

$

In Stock, only 2 left!

0

37

MTD 712-0324

Hex L-Nut 1/4-20 Thd.

$3.99

$

In Stock, Qty 17

0

38

MTD 706-10153-00-09

R.H. Bail Stop Bracket

$

$

Not available

MTD 706-10699-00-09

L.H. Bail Stop Bracket

$

$

Not available

39

MTD 706-10716-00-91

Engine Control Lever

$

$

Not available

40

MTD 706-10749-00-90

Lower Handle

$

$

Not available

41

MTD 706-10072-32

Saddle Bolt 5/16-18 x 2" Lg.
(Superseded to 710-1174)

$7.49

$

In Stock, Qty 20+

0

42

MTD 706-10488

Knob - Handle
(Superseded to 720-04072A)

$6.99

$

In Stock, Qty 20+

0

43

MTD 706-10021-12

Cotter Pin 1/8" x 3/4" Lg.
(Superseded to 914-0474)

$

$

Not available

44

MTD 706-10616

Rope Guide J-Bolt

$

$

Not available

45

MTD 706-10003-01

Hex Keps Nut 1/4-20 Thd.
(Superseded to 712-0271)

$4.49

$

In Stock, Qty 10

0

47

MTD 706-10787-00-05

Guide Bracket - Cable

$

$

Not available

48

MTD 751-0369

Clamp-Throttle Cable

Note: (Std. B&S)

$

$

Not available

MTD 706-13913

Clamp-Casing
(Superseded to BS-690798)

Note: (B&S Quantum Only)

$5.49

$

In Stock, only 1 left!

0

49

MTD 706-10606-10

Tapping Screw #10 x 5/8" Lg.

$

$

Currently unavailable

50

MTD 710-1093

Hex Screw #10 x 5/8" Lg.

Note: (Std. B&S)

$

$

Currently unavailable

MTD 706-14697-01

Screw-Casing Clamp

Note: (B&S Quantum Only)

$

$

Currently unavailable

51

MTD 706-10321-01-90

Trim Panel

Note: (Optional)

$

$

Currently unavailable

52

MTD 706-10604-08

Tapping Screw #10-32 x 1/2"

$

$

Not available

60

MTD 706-10021-12

Cotter Pin 1/8 x 3/4" Lg.
(Superseded to 914-0474)

$

$

Not available

61

MTD 734-1697

8 Marlex Wheel

Note: (Gray Dia. Thd.)

$

$

Not available

MTD 706-13799-01

8" Marlex Wheel
(Superseded to 734-04585)

Note: (Rib Thd.)

$20.99

$

In Stock, only 1 left!

0

MTD 706-14633-01

8" Steel Wheel w/Nylon Brgs.

$

$

Currently unavailable

62

MTD 706-10653

Nylon Outer Bearing

Note: (For Steel Wheels Only)

$

$

Not available

MTD 706-10645

Ball Bearing
(Superseded to 941-0484)

Note: (For Steel Wheels Only)

$7.49

$

In Stock, only 1 left!

0

63

MTD 706-10652

Nylon Inner Bearing

Note: (For Steel Wheels Only)

$

$

Not available

MTD 706-10645

Ball Bearing
(Superseded to 941-0484)

Note: (For Steel Wheels Only)

$7.49

$

In Stock, only 1 left!

0

64

MTD 736-0192

Flat Washer 1/2" I.D.

$4.49

$

In Stock, Qty 8

0

65

MTD 706-10639

Hex L-Nut 3/8-16 Thd.
(Superseded to 912-0431)

$4.99

$

In Stock, Qty 20+

0

MTD 706-10127-02

Adjuster Ass'y.

Note: (R.F. & L.R.)

$

$

Not available

MTD 706-10128-02

AdjusterAss'y.

Note: (L.F. & R.R.)

$

$

Not available

67

MTD 706-10709-00-90

Adjuster Knob

$

$

Not available

68

MTD 706-10655

Shoulder Bolt

$

$

Not available

69

MTD 706-10160

Sprinq - Adjuster

$

$

Currently unavailable

70

MTD 706-10968-01-05

Disc & Pin Ass'y. - Adjuster

$

$

Not available

71

MTD 706-10710-00-05

Lever - Adjuster

$

$

Not available

72

MTD 706-10731-00-05

Inner Plate - Adjuster

$

$

Not available

73

MTD 706-10741-00-90

Hub Cap

Note: (For Steel Wheels)

$

$

Not available

MTD 706-10740

Hub Cap

Note: (For Std. Marlex Wheels)

$

$

Not available

MTD 706-13892

Hub Cap

Note: (For Gray Marlex Wheels)

$

$

Not available

74

MTD 706-10776

Spacer

Note: (For Rear Bolt on Wheels ONLY)

$

$

Not available

MTD 706-15829

Washer
(Superseded to 936-0101)

Note: (For Front Bolt on Wheels ONLY)

$4.99

$

Usually ships in 3-6 days

0

75

MTD 706-14221-00-05

Support Plate

Note: (For Bolt on Wheels ONLY)

$

$

Currently unavailable

76

MTD 706-10118-01

Wheel Bolt

$

$

Not available

77

MTD 750-0796

Spacer- Plastic

$

$

Not available

78

MTD 706-11101-01

Washer- Hub Cap
(Superseded to 936-0456)

Note: (For Steel Wheels ONLY)

$4.99

$

In Stock, Qty 9

0
