1130 ST (954223081-B) - Husqvarna 30" Snow Blower (2004-03) CONTROL PANEL & DISCHARGE CHUTE Parts Diagram

30" Snow Blower

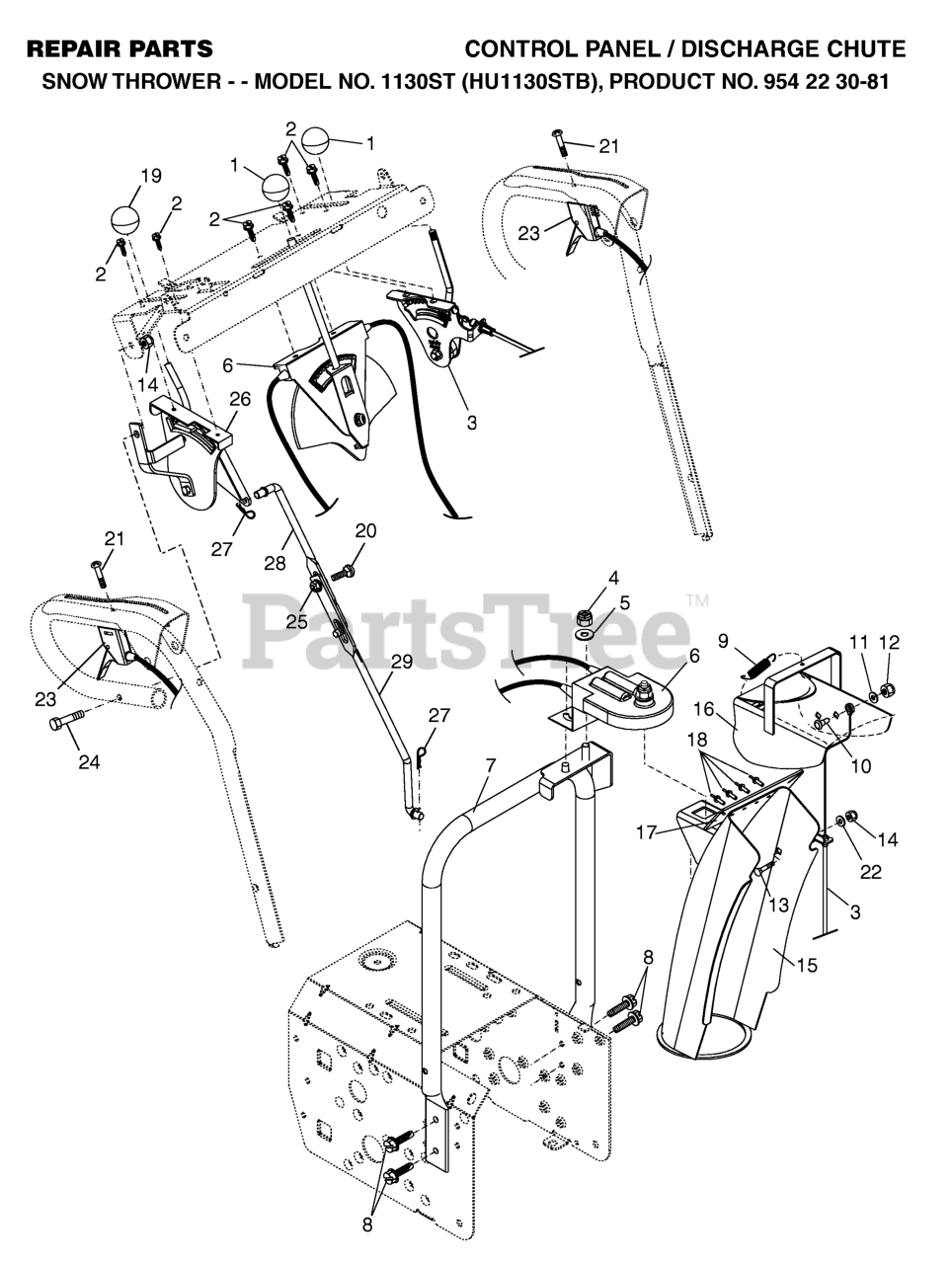

CONTROL PANEL & DISCHARGE CHUTE Parts Diagram

  • Title

11

Husqvarna 532053847

WASHER
(Superseded to 819091214)

$

$

Not available

29

Husqvarna 532187716

ROD, LOWER SPEED CONTROL.SNOW

$

$

Not available

25

Husqvarna 532155377

NUT.FLANGE.5/16

$6.49

$

Usually ships in 3-10 days

0

8

Husqvarna 532150078

SELF-TAPPING SCREW 5/16-18X3/4
(Superseded to 874780512)

$3.99

$

In Stock, Qty 20+

0

21

Husqvarna 874041024

SCREW

$4.99

$

Usually ships in 3-10 days

0

27

Husqvarna 532169675

SPRING RETAINER

$7.49

$

In Stock, only 4 left!

0

26

Husqvarna 532179257

LEVER ASSEMBLY, SPEED CONTROL
(Superseded to 532429667)

$

$

Not available

1

Husqvarna 532183334

KNOB, LEVER
(Superseded to 532414280)

$7.49

$

In Stock, only 1 left!

0

12

Husqvarna 873800400

LOCKNUT.NYLOC.1/4-20
(Superseded to 595086601)

$3.99

$

Usually ships in 3-10 days

0

19

Husqvarna 532183333

RP KNOB, SPEED CONTROL LEVER
(Superseded to 532414281)

$12.99

$

In Stock, only 1 left!

0

9

Husqvarna 532184505

SPRING.DEFLECTOR.REM.CHUTE

$7.49

$

In Stock, Qty 20+

0

10

Husqvarna 532179829

BOLT, SHOULDER

$6.49

$

In Stock, Qty 11

0

3

Husqvarna 532178674

CONTROL ASSY, DEFLECTOR
(Superseded to 587030801)

$80.99

$

In Stock, Qty 6

0

16

Husqvarna 532184113

DEFLECTOR.WELDMENT.PNT.ORANGE
(Superseded to 588077802)

$120.99

$

Usually ships in 3-10 days

0

20

Husqvarna 872270506

BOLT
(Superseded to 872110506)

$7.49

$

In Stock, Qty 20+

0

4

Husqvarna 873800600

NUT
(Superseded to 873680600)

$3.99

$

Usually ships in 3-10 days

0

24

Husqvarna 874780528

SCREW

$7.49

$

In Stock, only 4 left!

0

28

Husqvarna 532180445

ROD, UPPER SPEED CONTROL

$27.99

$

In Stock, Qty 5

0

14

Husqvarna 873800500

NUT.71038.31-18.HEX.NYLOCK

$3.99

$

Usually ships in 3-10 days

0

13

Husqvarna 872250505

BOLT
(Superseded to 872140505)

$3.99

$

In Stock, Qty 20+

0

7

Husqvarna 532184089

SUPPORT CHUTE ROTATER
(Superseded to 532443617)

$

$

Not available

2

Husqvarna 817501010

SCREW #10-24 X 5/8

$

$

Not available

23

Husqvarna 532187691

CONTROL ASSY, POWER STEERING
(Superseded to 532421249)

$44.99

$

In Stock, only 1 left!

0

15

Husqvarna 532184112

CHUTE ASSY
(Superseded to 532444041)

$78.99

$

Usually ships in 3-10 days

0

18

Husqvarna 532128415

RIVET BLIND

$4.99

$

Usually ships in 3-10 days

0

17

Husqvarna 532179145

SEAL, DEFLECTOR
(Superseded to 532420325)

$7.49

$

Usually ships in 3-10 days

0

5

Husqvarna 819131316

WASHER
(Superseded to 596565301)

$3.99

$

In Stock, Qty 20+

0

22

Husqvarna 532155415

WASHER.20X8.5

$4.99

$

In Stock, only 2 left!

0

6

Husqvarna 532178659

CONTROL ASSY, CHUTE ROTATER
(Superseded to 532428272)

$182.99

$

In Stock, only 1 left!

0
