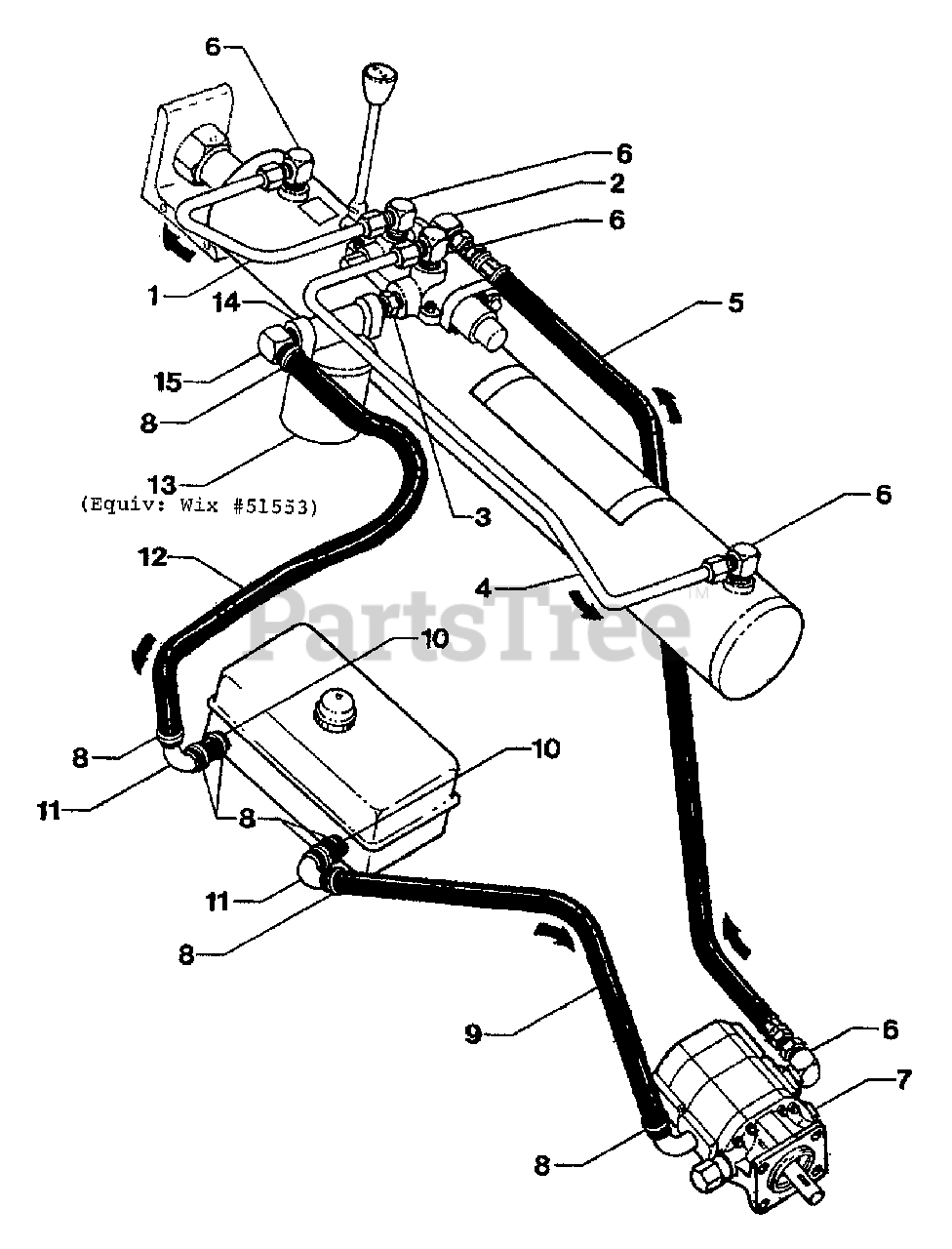

11377 - Troy-Bilt PTO Log Splitter HYDRAULIC SYSTEM Parts Diagram

PTO Log Splitter

HYDRAULIC SYSTEM Parts Diagram

  • Title

1

Troy-Bilt GW-L-73293

TUBE-SHORT (CYLINDER)

$

$

Currently unavailable

2

Troy-Bilt GW-L-92905

ELBOW-90-3/4NPTF X 3/4-16

$

$

Currently unavailable

3

MTD GW-L-92911

NIPPLE 3/4-14 NPTF

$

$

Not available

4

MTD GW-L-73294

TUBE-LONG (CYLINDER)

$

$

Not available

5

Troy-Bilt GW-L-73896

ASSM-HOSE HIGH PRESSURE

$

$

Currently unavailable

6

MTD GW-L-92903

ELBOW-MALE .5NPTF X .75

$

$

Not available

7

Troy-Bilt GW-L-69101

KIT-PUMP ASSM LOGSPLITTER

$

$

Currently unavailable

8

Troy-Bilt GW-L-73118

CLAMP-HOSE

$

$

Currently unavailable

9

MTD GW-L-73300

HOSE-SUCTION 5/8"X1"X28"

$

$

Not available

10

Troy-Bilt GW-L-73298

CONNECTOR-HOSE

$

$

Currently unavailable

11

Troy-Bilt GW-L-73288

ELBOW-TUBE .625 OD.

$

$

Currently unavailable

12

MTD GW-L-73091

HOSE-SUCTION 5/8"X1"X18"

$

$

Not available

13

Troy-Bilt GW-L-69071

FILTER-OIL CANISTER

$

$

Currently unavailable

14

Troy-Bilt GW-L-69070

FILTER-OIL T-TOP

$

$

Currently unavailable

15

MTD GW-L-92901

ELBOW 1/4-NPFT

$

$

Not available

Troy-Bilt GW-L-69050

KIT-SEAL 4" CYLINDER

$

$

Currently unavailable
