115-314-111 - Malmo Walk-Behind Mower (1985) (Ernst Home Centers) Parts02 Parts Diagram

Walk-Behind Mower

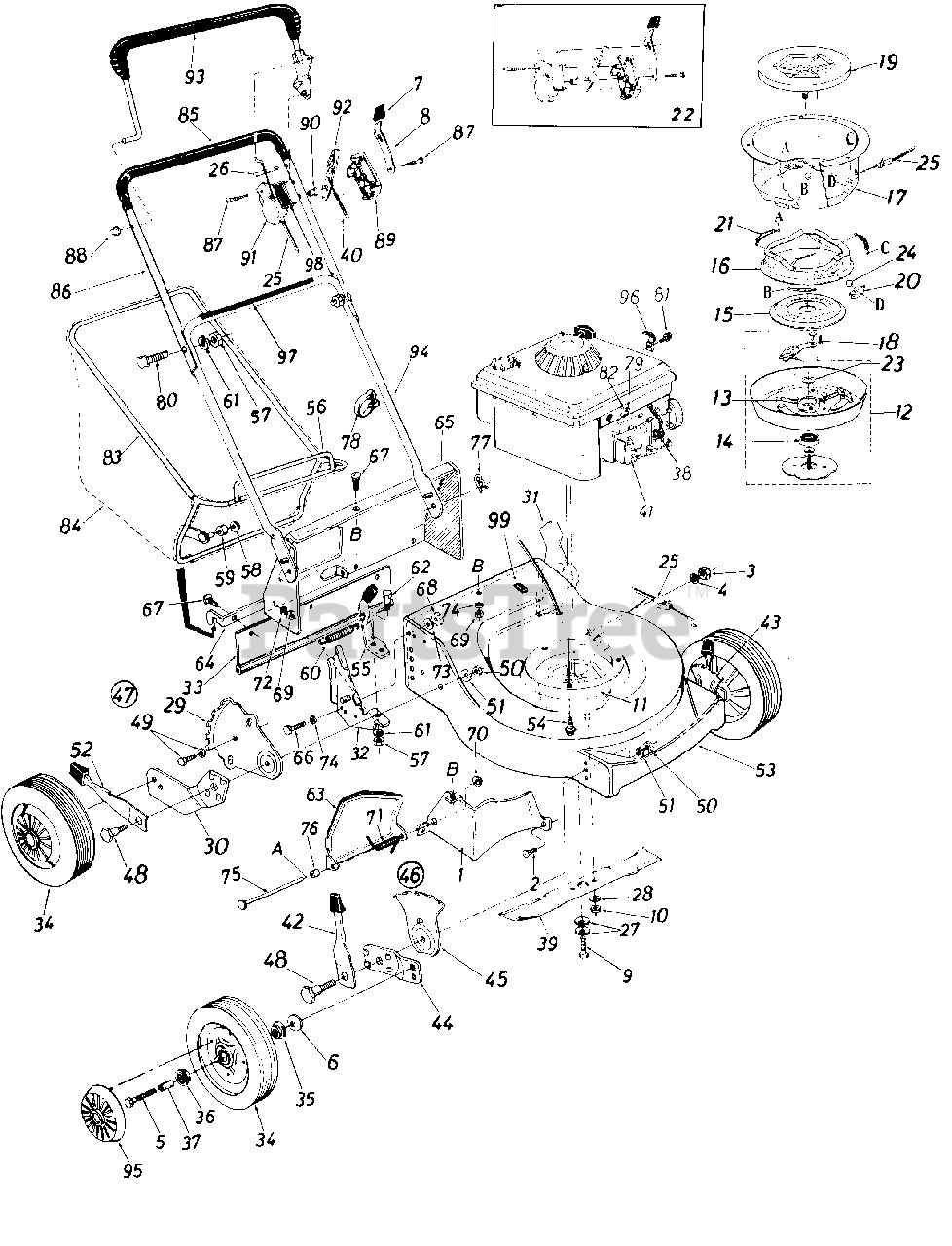

Parts02 Parts Diagram

  • Title

1

MTD 16259

Rear Baffle

$

$

Not available

2

MTD 710-0167

Carriage Bolt 1/4-20 x .50" Lg.
(Superseded to 710-05177)

$4.99

$

In Stock, Qty 20+

0

3

MTD 712-0287

Hex Nut 1/4-20 Thd.*
(Superseded to 912-0287)

$4.99

$

Usually ships in 3-6 days

0

4

MTD 736-0329

L-Wash. 1/4" I.D.
(Superseded to 936-0329)

$4.49

$

In Stock, Qty 11

0

5

Axle Bolt

$

$

Not available

MTD 734-0843

Smooth

$

$

Not available

MTD 734-0845

Smooth

$

$

Not available

MTD 734-0894

Waffle Tread

$

$

Not available

MTD 734-0645

Waffle Tread

$

$

Not available

MTD 734-0661

Twinline Tread

$

$

Not available

MTD 734-0643

Twinline Tread

$

$

Not available

MTD 741-0262

Plastic Bearing

$8.49

$

Usually ships in 3-6 days

0

MTD 741-0267

3/8" Ball Bearing

$

$

Not available

MTD 741-0484

1/2" Ball Bearing
(Superseded to 941-0484)

$7.49

$

In Stock, only 1 left!

0

MTD 750-0434

Spacer Bearing

$6.99

$

Usually ships in 3-6 days

0

MTD 738-0102

Axle Bolt

$9.99

$

In Stock, Qty 10

0

MTD 710-0427

Axle Bolt
(Superseded to 710-3144)

$4.49

$

In Stock, Qty 12

0

6

MTD 736-0105

Bell-Wash. .400" I.D. x .88"

$4.49

$

In Stock, Qty 20+

0

7

MTD 720-0190

Spring Lever Knob
(Superseded to 731-13116-1)

$13.99

$

In Stock, only 1 left!

0

8

MTD 732-0401

Lockout Spring

$

$

Not available

9

MTD 710-0818

Hex Scr. 3/8-24 x 2.00" Lg. (Grade 8)

$6.99

$

Usually ships in 3-6 days

0

10

MTD 712-0328

Hex Nut 3/8-24 Thd. (Grade 8)
(Superseded to 712-0241)

$4.49

$

In Stock, Qty 13

0

11

MTD 717-0480

Blade BrakelClutch Ass'y.-Comp.

$

$

Currently unavailable

12

MTD 14300

Clutch Blade Housing Ass'y.

$

$

Not available

13

MTD 732-0396

Compression Spring

$

$

Not available

14

MTD 741-0124

Ball Brg. .669" I.D. x 1.574" O.D.
(Superseded to 941-0600)

$25.99

$

In Stock, Qty 20+

0

15

MTD 14304

Clutching Cone

$

$

Not available

16

MTD 14305

Brake Cup Cone

$

$

Currently unavailable

17

MTD 14306

Clutch Housing

$

$

Currently unavailable

18

MTD 710-0875

Hex Tap L-Scr. 1/4-20 x .75"

$3.99

$

In Stock, only 2 left!

0

19

MTD 719-0256

Fan Adapter

$

$

Not available

20

MTD 731-0520

Ball Block

$

$

Not available

21

MTD 732-0397

Extension Spring

$

$

Not available

22

MTD 753-0361

Control Housing Comp.

$

$

Not available

23

MTD 736-0333

Fl-Wash. .690" I.D. x 1.060" O.D.

$

$

Not available

24

MTD 741-0326

Steel Ball .500" Dia.

$

$

Not available

25

MTD 746-0400

Clutch Cable-46.0"

$

$

Not available

26

MTD 731-0607

Lock Pin .314" Dia. x 1.70" Lg.

$

$

Not available

27

MTD 736-0105

Bell-Wash. .400" I.D. x .88" O.D.

$4.49

$

In Stock, Qty 20+

0

28

MTD 736-0169

L-Wash. 3/8" I.D.*

$3.99

$

In Stock, Qty 20+

0

29

MTD 14764

Rear Index Plate
(Superseded to 14764C)

$8.49

$

Usually ships in 3-6 days

0

30

MTD 14765

Rear Pivot Bar-R.H.

$19.99

$

Usually ships in 3-6 days

0

MTD 14766

Rear Pivot Bar-L.H.

$19.99

$

Usually ships in 3-6 days

0

31

MTD 12297

Handle Brkt. Ass'y.-L.H.

$

$

Not available

32

MTD 14592

Handle Brkt. Ass'y.-R.H.

$

$

Currently unavailable

33

MTD 731-0665

Rear Flap Ass'y.

$

$

Not available

34

Wheel Ass'y. Comp.-8 x 1.75

$

$

Not available

35

Bearing

$

$

Not available

36

Beari ng

$

$

Not available

37

Spacer

Note: (Used w/Ball Brgs.Only)

$

$

Not available

38

MTD 735-0639

Spark Plug Insulator

$

$

Not available

39

MTD 742-0221

21" Blade

$

$

Not available

40

MTD 746-0472

Throttle Wire-58" (Black)
(Superseded to 946-0674A)

$18.99

$

In Stock, only 1 left!

0

41

Engine

$

$

Not available

42

MTD 14832

Spring Lever wlKnob
(Superseded to 94832)

$10.99

$

In Stock, only 3 left!

0

43

MTD 14579

Front Height Adj. Ass'y.-L.H.
(Superseded to 753-06761)

$65.99

$

In Stock, Qty 7

0

44

MTD 15262

Front Pivot Bar
(Superseded to 15262B)

$14.99

$

In Stock, only 1 left!

0

45

MTD 15261

Front Index Plate
(Superseded to 787-01290A)

$12.99

$

In Stock, only 2 left!

0

46

MTD 14578

Front Height Adj. Ass'y.-L.H.
(Superseded to 753-06761)

$65.99

$

In Stock, Qty 7

0

47

MTD 16106

Rear Height Adj. Ass'y.-R.H.

$

$

Not available

MTD 16107

Rear Height Adj. Ass'y.-L.H.

$

$

Not available

48

MTD 738-0507

Shld. Bolt .500" Dia. x .375
(Superseded to 938-0507B)

$4.49

$

In Stock, only 4 left!

0

49

MTD 710-0892

Hex Wash. Hd. Tap Scr. 1/4 x.62" Lg.
(Superseded to 910-0892)

$

$

Not available

50

MTD 712-0798

Hex Nut 3/8-16 Thd.*

$4.49

$

In Stock, only 2 left!

0

51

MTD 736-0356

Bell-Wash. .391" I.D. x 1.38" O.D.
(Superseded to 936-0356)

$

$

Not available

52

MTD 732-0417

Spring Lever w/Knob
(Superseded to 732-0417A)

$

$

Not available

53

MTD 16243

21" Deck Assy.

Variations

MTD 16243-0638

No Longer Available DECK ASM - MTD/TROY-BILT RED (0638)

$

$

Not available

$

$

54

MTD 710-0654

Hex Wash. Hd. TT-Tap Scr. 3/8-16 x 1.00" Lg.
(Superseded to 710-0654A)

$4.49

$

In Stock, only 4 left!

0

55

MTD 14845

Grass Catcher Lock Lever

$

$

Not available

56

MTD 14582

Grass Catcher Lower Frame Ass'y.

Variations

MTD 14582-0637

No Longer Available FRAME-LOWE - POWDER BLACK (0637)

$

$

Not available

$

$

57

MTD 712-0267

Hex Nut 5/16-18 Thd.
(Superseded to 912-3010)

$4.49

$

In Stock, Qty 20+

0

58

MTD 726-0100

Push Nut 3/8" Rod

$4.49

$

In Stock, only 3 left!

0

59

MTD 731-0430

Plastic Roller

$

$

Not available

60

MTD 732-0357

Tension Spring
(Superseded to 932-0357A)

$4.49

$

In Stock, only 3 left!

0

61

MTD 736-0119

L-Wash. 5/16" I.D.
(Superseded to 936-0119)

$4.99

$

In Stock, Qty 17

0

62

MTD 738-0155

Shld. Bolt .437" Dia. x .162" Lg.
(Superseded to 938-0155)

$6.99

$

Usually ships in 3-6 days

0

63

MTD 13407

Chute Door

$

$

Not available

64

MTD 14012

Grass Catcher Hitch Brkt.

$

$

Not available

65

MTD 16258

Rear Discharge Deck Section

$

$

Not available

66

MTD 710-0412

Hex Bolt 1/4-28 x .75" Lg.

$5.99

$

In Stock, Qty 8

0

67

MTD 710-0703

Carr. Bolt 1/4-20 x .75" Lg.

$4.49

$

In Stock, Qty 15

0

68

MTD 712-0138

Hex Nut 1/4-28 Thd.

$6.99

$

Usually ships in 3-6 days

0

69

MTD 712-0271

Sems Nut 1/4-20 Thd.

$4.49

$

In Stock, Qty 10

0

70

MTD 726-0106

Push Nut 1/4" Rod

$3.99

$

Usually ships in 3-6 days

0

71

MTD 732-0346

Torsion Spring

$

$

Not available

72

MTD 736-0211

Fl-Wash. .285" I.D. x 1.25" O.D.

$6.99

$

In Stock, Qty 7

0

73

MTD 736-0270

Bell-Wash. 1/4" I.D. x .88" O.D.

$3.99

$

In Stock, only 3 left!

0

74

MTD 736-0329

L-Wash. 1/4" I.D.
(Superseded to 936-0329)

$4.49

$

In Stock, Qty 11

0

75

MTD 738-0386

Hinge Pin .250" Dia. x 7.88" Lg.

$

$

Not available

76

MTD 750-0218

Spacer .262" I.D. x .31" O.D.
(Superseded to 950-0218)

$

$

Not available

77

MTD 714-0104

Intern. Cot. Pin 5/16" Dia.

$4.49

$

In Stock, Qty 20+

0

78

MTD 726-0192

Cable Tie

$

$

Not available

79

MTD 710-0899

Hex Sems Scr. #10-32 x .62"
(Superseded to 710-0899A)

$6.99

$

Usually ships in 3-6 days

0

80

MTD 710-0671

Curved Carriage Bolt 5/16-18 x 1.38" Lg.

$

$

Not available

81

MTD 710-0429

Hex B-Tap Scr. #10 x .38" Lg.
(Superseded to 910-0429)

$3.99

$

Usually ships in 3-6 days

0

82

MTD 751-0333

Casing Clamp

$

$

Not available

83

MTD 749-0278

Grass Catcher Upper Frame

$

$

Not available

84

MTD 764-0171

Grass Bag (Without Flip Top)
(Superseded to 964-0171B)

$

$

Not available

MTD 764-0170

Grass Bag (With Flip Top)

$

$

Not available

85

MTD 718-0145

Grip

$

$

Currently unavailable

86

MTD 749-0436

Upper Handle (Chrome)
(Superseded to 749-0438D-0637)

$

$

Not available

MTD 749-0438

Upper Handle (Painted)
(Superseded to 749-0438D-0637)

$

$

Not available

87

MTD 710-0796

Truss Mach. HI-B Tap Scr. #12 x 1.50" Lg.

$5.49

$

In Stock, only 1 left!

0

88

MTD 726-0135

Cap Speed Nut 5/16" Rod

$6.99

$

In Stock, only 1 left!

0

89

MTD 731-0523

Control Panel Half

$

$

Not available

90

MTD 731-0524

Control Disc Pin

$

$

Not available

91

MTD 731-0526

Clutch Panel Half

$

$

Not available

92

MTD 731-0528

Throttle Control Lever
(Superseded to 931-0972)

$9.99

$

In Stock, Qty 13

0

93

MTD 731-0609

Control Handle-L.H.

$

$

Not available

94

MTD 749-0505

Lower Handle (Chrome)
(Superseded to 749-0907B)

$50.99

$

In Stock, only 1 left!

0

MTD 749-0504

Lower Handle (Painted)
(Superseded to 749-0907B)

$50.99

$

In Stock, only 1 left!

0

95

Hub Cap

$

$

Not available

96

MTD 12894

Casing Clamp

$

$

Not available

97

MTD 777-3453

Instruction Label-Handle

$

$

Currently unavailable

98

MTD 777-5166

Control Label-Throttle

$

$

Not available

99

MTD 731-0564

Plastic Plug

$

$

Not available

MTD 8314-000-5

Hardware Pack

$

$

Currently unavailable

Hub Caps

$

$

Not available

MTD 731-0124

Red

$

$

Not available

MTD 731-0254

Orange

$

$

Not available

MTD 731-0354

Black

$

$

Not available

MTD 731-0355

Gray

$

$

Not available
