11A-439R401 - Yard-Man Walk-Behind Mower (2003) General Assembly (Steel Rear Door) Parts Diagram

Walk-Behind Mower

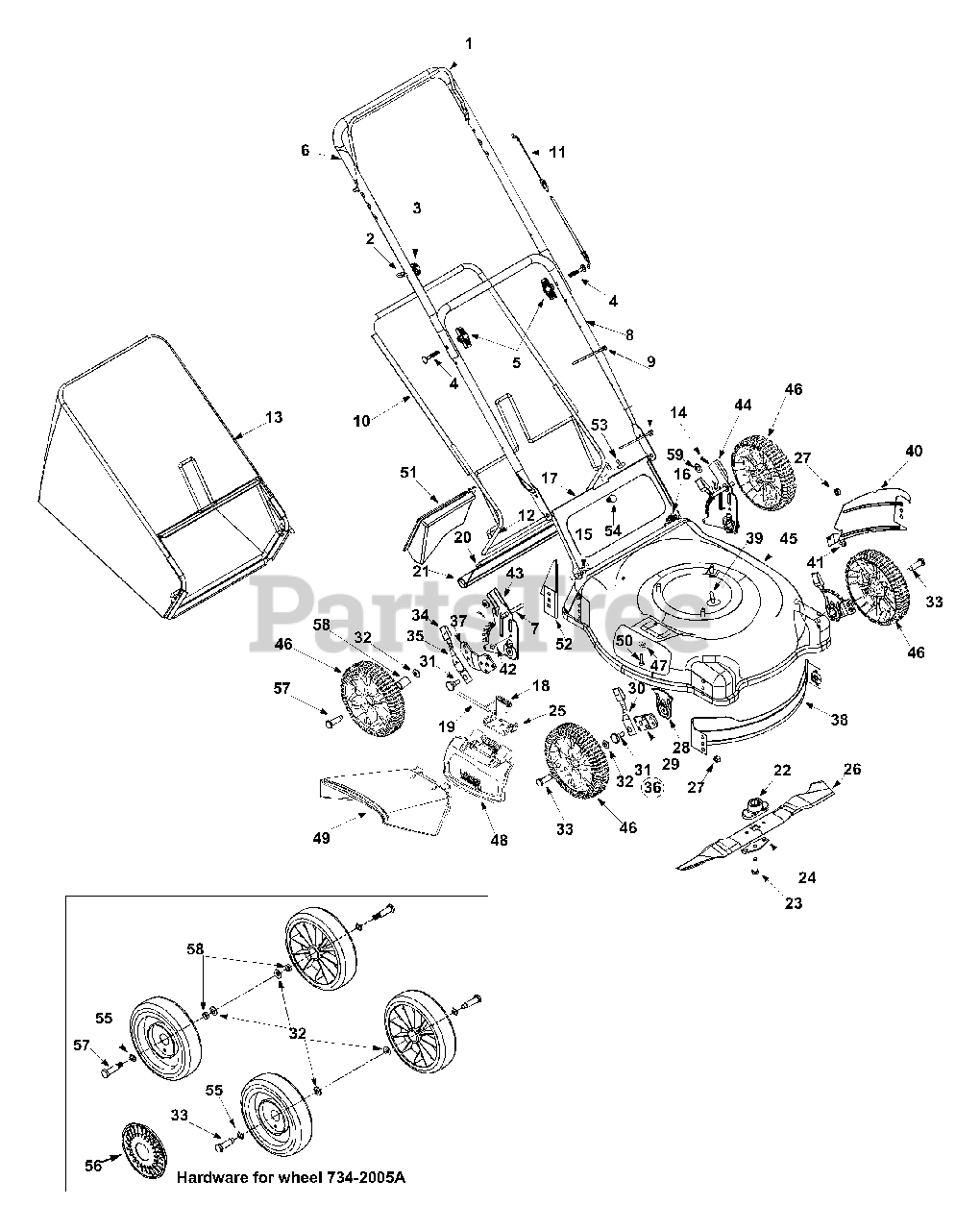

General Assembly (Steel Rear Door) Parts Diagram

  • Title
1

MTD 747-1161A

Control Handle

Variations

MTD 747-1161A-0637

Operator Bail, Black - POWDER BLACK (0637)

$13.99

$

In Stock, only 4 left!

0

$13.99

$

In Stock, only 4 left!

0

2

MTD 710-1205

Rope Guide

$3.99

$

In Stock, only 4 left!

0

3

MTD 720-0279

Handle Knob 1/4-20 Thd.

$4.49

$

In Stock, only 2 left!

0

4

MTD 710-1174

Curved Hd. Bolt 5/16-18 x 2"

$7.49

$

In Stock, Qty 20+

0

5

MTD 720-0284

Hand Knob

$6.99

$

In Stock, Qty 20+

0

6

MTD 749-1092A

Upper Handle

Variations

MTD 749-1092A-0637

Upper Handle, Black - POWDER BLACK (0637)

$48.99

$

In Stock, only 1 left!

0

MTD 749-1092A-0638

HANDLE-UPPER - MTD/TROY-BILT RED (0638)

$48.99

$

Usually ships in 3-6 days

0

$48.99

$

Usually ships in 3-6 days

0

7

MTD 710-1248

Weld Pin

$

$

Currently unavailable

8

MTD 749-0928A

Lower Handle
(Superseded to 749-0928A-0637)

Variations

MTD 749-0928A-0637

Lower Handle - POWDER BLACK (0637)

$33.99

$

In Stock, only 3 left!

0

$33.99

$

In Stock, only 3 left!

0

9

MTD 726-0240

Cable Tie
(Superseded to 725-0157)

$3.99

$

In Stock, only 2 left!

0

10

MTD 764-0310

Rear Catcher Frame
(Superseded to 764-0310A-0637)

Variations

MTD 764-0310-0637

Grass Catcher Bag Frame - POWDER BLACK (0637)

$46.99

$

Usually ships in 3-6 days

0

$46.99

$

Usually ships in 3-6 days

0

11

MTD 746-1137

Control Cable - 53"
(Superseded to 946-1137)

$21.99

$

In Stock, only 4 left!

0

12

MTD 764-0311

Front Catcher Frame
(Superseded to 764-0311-0637)

Variations

MTD 764-0311-0637

FRAME-CATCHER-FR - POWDER BLACK (0637)

$

$

Not available

$

$

13

MTD 764-0457A

Grass Bag (soft top w/logo)
(Superseded to 964-0309)

$151.99

$

Usually ships in 3-6 days

0

14

MTD 714-0104

Int. Cotter Pin 5/16" Dia.

$4.49

$

In Stock, Qty 20+

0

15

MTD 732-0678

Door Spring - R.H.

$8.49

$

Usually ships in 3-6 days

0

16

MTD 732-0677

Door Spring - L.H.
(Superseded to 932-0677)

$

$

Not available

17

MTD 782-7000

Rear Discharge Door

Variations

MTD 782-7000-0483

DOOR-REAR DISCHARG - CHARCOAL GRAY (0483)

$

$

Not available

MTD 782-7000-0637

DOOR-REAR DISCHARG - POWDER BLACK (0637)

$

$

Not available

MTD 782-7000-0638

DOOR-REAR DISCHARG - MTD/TROY-BILT RED (0638)

$

$

Not available

MTD 782-7000-0662

DOOR-REAR DISCHARG - OYSTER GRAY (0662)

$

$

Not available

MTD 782-7000-0665

DOOR-REAR DISCHARG - YARDMAN GREEN (0665)

$

$

Not available

MTD 782-7000-0674

No Longer Available DOOR-REAR - YARDMAN YELLOW (0674)

$

$

Not available

$

$

18

MTD 732-0731

Torsion Spring
(Superseded to 932-0731)

$10.99

$

Usually ships in 3-6 days

0

19

MTD 747-0710

Hinge Pin
(Superseded to 747-0710A)

$4.49

$

In Stock, only 2 left!

0

20

MTD 732-0700

Wire Rod
(Superseded to 732P0700)

$4.49

$

In Stock, only 4 left!

0

21

MTD 731-1236

Rear Flap
(Superseded to 731-04998)

$31.99

$

In Stock, Qty 6

0

22

MTD 748-0376C

Blade Adapter w/Star
(Superseded to 748-0376E)

$20.99

$

In Stock, Qty 6

0

23

MTD 710-1044

Hex Bolt 3/8-24 x 1.5" Lg.

$3.99

$

In Stock, Qty 10

0

24

MTD 736-0524A

Blade Bell Support
(Superseded to 736-0524B-1)

$5.99

$

In Stock, Qty 20+

0

25

MTD 782-7006

Mounting Bracket

Variations

MTD 782-7006-0637

BRACKET-MOUNTING H - POWDER BLACK (0637)

$32.99

$

Usually ships in 3-6 days

0

$32.99

$

Usually ships in 3-6 days

0

26

MTD 742-0741

21" Mulching Blade w/Star
(Superseded to 942-0741A)

$29.99

$

In Stock, Qty 20+

0

27

MTD 712-0431

Flange Nut 3/8-16 Thd.
(Superseded to 912-0431)

$4.99

$

In Stock, Qty 20+

0

28

MTD 15261A

Height Adj. Plate
(Superseded to 787-01290A)

$12.99

$

In Stock, only 2 left!

0

29

MTD 15262B

Pivot Bar

Variations

MTD 15262B-0637

Pivot Bar - POWDER BLACK (0637)

$14.99

$

In Stock, only 1 left!

0

$14.99

$

In Stock, only 1 left!

0

30

MTD 732-0404

Front Spring Lever
(Superseded to 94832)

$10.99

$

In Stock, only 3 left!

0

31

MTD 738-0507B

Shld. Bolt .5" Dia. x .357"

$4.49

$

In Stock, only 4 left!

0

32

MTD 736-0105

Bell Washer .38" I.D. x .88" O.D.

$4.49

$

In Stock, Qty 20+

0

33

MTD 738-0102

Front Axle Bolt

$9.99

$

In Stock, Qty 10

0

34

MTD 720-0426

Spring Lever Knob
(Superseded to 731-13116-1)

$13.99

$

In Stock, only 1 left!

0

35

MTD 732-0404

Rear Spring Lever
(Superseded to 94832)

$10.99

$

In Stock, only 3 left!

0

36

MTD 14578

Height Adj. Assy. Comp. - RH
(Superseded to 753-06761)

$65.99

$

In Stock, Qty 7

0

MTD 14579

Height Adj. Assy. Comp. - LH
(Superseded to 753-06761)

Note: Not illustrated

$65.99

$

In Stock, Qty 7

0

37

MTD 14765

Pivot Bar R.H.

$19.99

$

Usually ships in 3-6 days

0

MTD 14766

Pivot Bar L.H.

$19.99

$

Usually ships in 3-6 days

0

38

MTD 782-5002

Front Baffle
(Superseded to 782P5002B)

Variations

MTD 782-5002-0637

Front Baffle - POWDER BLACK (0637)

$

$

Not available

$

$

39

MTD 710-0654A

Hex L-Wash.Scr. 3/8-16 x 1"

$4.49

$

In Stock, only 4 left!

0

40

MTD 782-5003

Rear Baffle
(Superseded to 782-5003A)

Variations

MTD 782-5003-0637

Left Rear Baffle - POWDER BLACK (0637)

$30.99

$

Usually ships in 3-6 days

0

$30.99

$

Usually ships in 3-6 days

0

41

MTD 710-1017

Torx Mach AB-Tap Scr. 1/4 x.62"

$8.49

$

In Stock, Qty 9

0

42

MTD 710-0896

Hex Ind Wash. Scr. 1/4-14:.625

$4.49

$

In Stock, Qty 20+

0

43

MTD 682-0516A

Handle Brkt. Ass'y.-RH
(Superseded to 753-05994)

$82.99

$

Usually ships in 3-6 days

0

44

MTD 682-0515A

Handle Brkt. Ass'y.-LH
(Superseded to 753-05994)

$82.99

$

Usually ships in 3-6 days

0

45

MTD 782-0404

Deck 21"

$

$

Currently unavailable

46

MTD 734-2005A

Wheel Complete
(Superseded to 753-08093)

$45.99

$

In Stock, Qty 5

0

47

MTD 736-0270

Bell Washer 1/4" I.D.

$3.99

$

In Stock, only 3 left!

0

48

MTD 682-7000

Hinged Mulching Plug

$

$

Not available

49

MTD 731-1409

Chute Deflector: Side Discharge
(Superseded to 731-1409B)

$28.99

$

In Stock, Qty 5

0

50

MTD 710-0599

Hex Hd Self-Tp Scr. 1/4-20 x .5"

$4.49

$

In Stock, Qty 20+

0

51

MTD 782-5007A

Mulching Baffle Plug
(Superseded to 782-5007C)

$52.99

$

In Stock, only 1 left!

0

52

MTD 782-5004

Mulching Baffle - R.R.
(Superseded to 782-5004B)

Variations

MTD 782-5004-0637

Rear Baffle, RH - POWDER BLACK (0637)

$24.99

$

Usually ships in 3-6 days

0

MTD 782-5004-0638

Rear Baffle, RH - MTD/TROY-BILT RED (0638)

$24.99

$

Usually ships in 3-6 days

0

$24.99

$

Usually ships in 3-6 days

0

53

MTD 710-0192

Truss Scr. #10-24 x .38" Lg.

$3.99

$

In Stock, Qty 12

0

54

$

$

Not available

55

MTD 736-0504

Wave Washer
(Superseded to 936-0504)

$4.49

$

In Stock, Qty 10

0

56

MTD 731-1426

Hub-Cap- Rad. Spoke- Yellow
(Superseded to 731-1426B)

$8.99

$

Usually ships in 3-6 days

0

57

MTD 738-0213

Rear Axle Bolt

$7.99

$

In Stock, only 2 left!

0

58

MTD 750-0535

Spacer
(Superseded to 950-0535)

$4.49

$

In Stock, only 4 left!

0

59

MTD 736-0105

Washer

$4.49

$

In Stock, Qty 20+

0
