11A-505D790 - White Outdoor 22" Walk-Behind Mower (2005) General Assembly Parts Diagram

22" Walk-Behind Mower

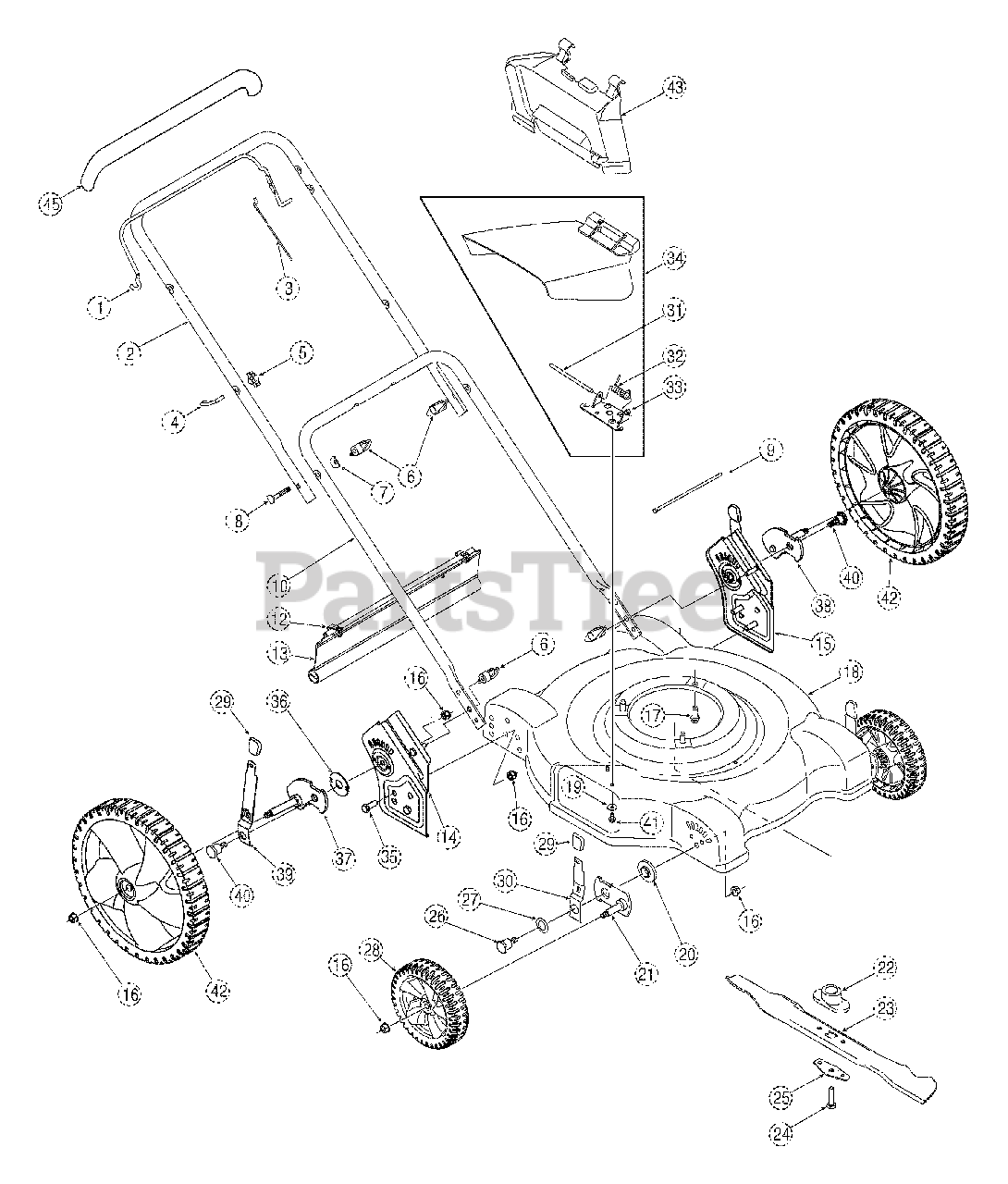

General Assembly Parts Diagram

  • Title

1

White Outdoor 747-1161A

Blade Control

Variations

White Outdoor 747-1161A-0637

Operator Bail, Black - POWDER BLACK (0637)

$12.99

$

In Stock, Qty 20+

0

$12.99

$

In Stock, Qty 20+

0

2

White Outdoor 749-1092A

Upper Handle

Variations

White Outdoor 749-1092A-0637

Upper Handle, Black - POWDER BLACK (0637)

$45.99

$

In Stock, only 4 left!

0

White Outdoor 749-1092A-0638

HANDLE-UPPER - MTD/TROY-BILT RED (0638)

$45.99

$

Usually ships in 3-6 days

0

$45.99

$

Usually ships in 3-6 days

0

3

White Outdoor 746-0946

Blade Control Cable - 48.25"
(Superseded to 946-0946)

$18.99

$

In Stock, Qty 9

0

4

White Outdoor 710-1205

Eye Bolt

$3.99

$

In Stock, Qty 15

0

5

White Outdoor 720-0279

Wing Nut

$4.49

$

In Stock, Qty 20+

0

6

White Outdoor 720-0284

Wing Nut

$6.49

$

In Stock, Qty 20+

0

7

White Outdoor 736-0451

Shoulder Washer.320 ID x.93 OD

$3.99

$

In Stock, only 2 left!

0

8

White Outdoor 710-1174

Carriage Bolt 5/16-18 x 2.0

$6.99

$

In Stock, Qty 20+

0

9

White Outdoor 725-0157

Cable Tie

$3.49

$

In Stock, only 4 left!

0

10

White Outdoor 749-04037

Lower Handle

Variations

White Outdoor 749-04037-0637

Long Lower Handle, Black - POWDER BLACK (0637)

$49.99

$

In Stock, Qty 19

0

$49.99

$

In Stock, Qty 19

0

11

White Outdoor 731-0981A

Hub Cap
(Superseded to 731-0981C)

Note: Not Shown

$9.99

$

In Stock, Qty 6

0

12

White Outdoor 17098

Hinge Clip
(Superseded to 17098P)

$

$

Not available

13

White Outdoor 731-2537

Trail Shield

$18.99

$

In Stock, only 1 left!

0

14

White Outdoor 682-3062A

Handle Bracket Assembly - RH
(Superseded to 982-3062A)

Variations

White Outdoor 682-3062A-0637

BRACKET-HANDLE RH - POWDER BLACK (0637)

$46.99

$

Usually ships in 3-6 days

0

$46.99

$

Usually ships in 3-6 days

0

15

White Outdoor 682-3063A

Handle Bracket Assembly - LH

Variations

White Outdoor 682-3063A-0637

BRACKET-HANDLE LH - POWDER BLACK (0637)

$

$

Not available

$

$

16

White Outdoor 712-0431

Lock Nut 3/8 -16
(Superseded to 912-0431)

$4.99

$

In Stock, Qty 20+

0

17

White Outdoor 710-0654A

Hex Washer Screw 3/8-16 x 1.0

$3.99

$

In Stock, only 4 left!

0

18

White Outdoor 687-02048

22" Deck Assembly

Variations

White Outdoor 687-02048-0629

DECK ASSY-22" SIDE DISCHARGE - SILVER FLAKE (0629)

$

$

Not available

White Outdoor 687-02048-0638

DECK ASSY-22" SIDE DISCHARGE - MTD/TROY-BILT RED (0638)

$

$

Not available

White Outdoor 687-02048-0665

DECK ASSY-22" SIDE DISCHARGE - YARDMAN GREEN (0665)

$

$

Not available

White Outdoor 687-02048-0691

DECK ASSY-22" SIDE DISCHARGE - BLACK JACK (0691)

$

$

Not available

White Outdoor 687-02048-0709

DECK ASSY-22" SIDE DISCHARGE - MASTERCRAFT GREEN (0709)

$

$

Not available

$140.99

$

Usually ships in 3-6 days

0

19

White Outdoor 736-0270

Bell Washer.265 x.75

$3.99

$

In Stock, Qty 13

0

20

White Outdoor 741-0751

Height Adjuster Bearing

$7.99

$

Usually ships in 3-6 days

0

21

White Outdoor 687-02094

Pivot Arm Assembly
(Superseded to 987-02094)

$27.99

$

Usually ships in 3-6 days

0

22

White Outdoor 748-0376C

Blade Adapter
(Superseded to 748-0376E)

$19.99

$

In Stock, Qty 20+

0

23

White Outdoor 742-0742A

22" Mulching Blade
(Superseded to 942-0742A)

$24.99

$

In Stock, Qty 8

0

24

White Outdoor 710-1044

Hex Cap Screw 3/8-24 x 1.5

$3.99

$

In Stock, Qty 20+

0

25

White Outdoor 736-0524B

Blade Bell Support
(Superseded to 736-0524B-1)

$5.49

$

In Stock, Qty 20+

0

26

White Outdoor 738-1172

Shoulder Screw 3/8 - 16 x .302

$5.49

$

Usually ships in 3-6 days

0

27

White Outdoor 736-0741

Bell Washer.760 ID x 1.25 OD

$4.49

$

In Stock, only 1 left!

0

28

White Outdoor 734-04158

Front Wheel Assembly 7 x 2.125
(Superseded to 734-04176A)

$43.99

$

Usually ships in 3-6 days

0

29

White Outdoor 720-0426

Height Adjuster Knob
(Superseded to 731-13116-1)

$12.99

$

In Stock, only 3 left!

0

30

White Outdoor 732-1026

Front Spring Lever

$6.49

$

In Stock, only 3 left!

0

31

White Outdoor 747-0710

Hinge Pin
(Superseded to 747-0710A)

$3.99

$

In Stock, Qty 20+

0

32

White Outdoor 732-1014

Torsion Spring
(Superseded to 732-1014C)

$7.49

$

In Stock, Qty 20+

0

33

White Outdoor 17032A

Deflector Chute Adapter

$10.99

$

In Stock, only 4 left!

0

34

White Outdoor 731-1034B

Side Discharge Chute Assembly
(Superseded to 931-1034B)

$67.99

$

In Stock, Qty 12

0

35

White Outdoor 710-0216

Hex Cap Screw 3/8-16 x .75

$3.99

$

In Stock, Qty 17

0

36

White Outdoor 741-0717

Thrust Bearing.688 ID x 1.94 OD

$

$

Not available

37

White Outdoor 687-02080

Rear Pivot Arm Assembly - RH

$

$

Not available

38

White Outdoor 687-02079

Rear Pivot Arm Assembly - LH

$16.99

$

Usually ships in 3-6 days

0

39

White Outdoor 732-0984B

Rear Spring Lever

$

$

Not available

40

White Outdoor 738-1127

Shoulder Screw 3/8 - 16 x .442
(Superseded to 738-1127B)

$6.99

$

In Stock, Qty 20+

0

41

White Outdoor 710-0599

Screw 1/4-20 x.50

$3.99

$

In Stock, Qty 20+

0

42

White Outdoor 734-04093

Rear Wheel Assembly 12 x 2.125

$63.99

$

In Stock, only 2 left!

0

43

White Outdoor 631-04045

Mulching Baffle

$18.99

$

Usually ships in 3-6 days

0

44

White Outdoor 731-05097

Engine Shroud

Note: Not Shown

$54.99

$

Usually ships in 3-6 days

0

45

White Outdoor 731-04859

Deluxe Bail Cover

$10.99

$

Usually ships in 3-6 days

0
