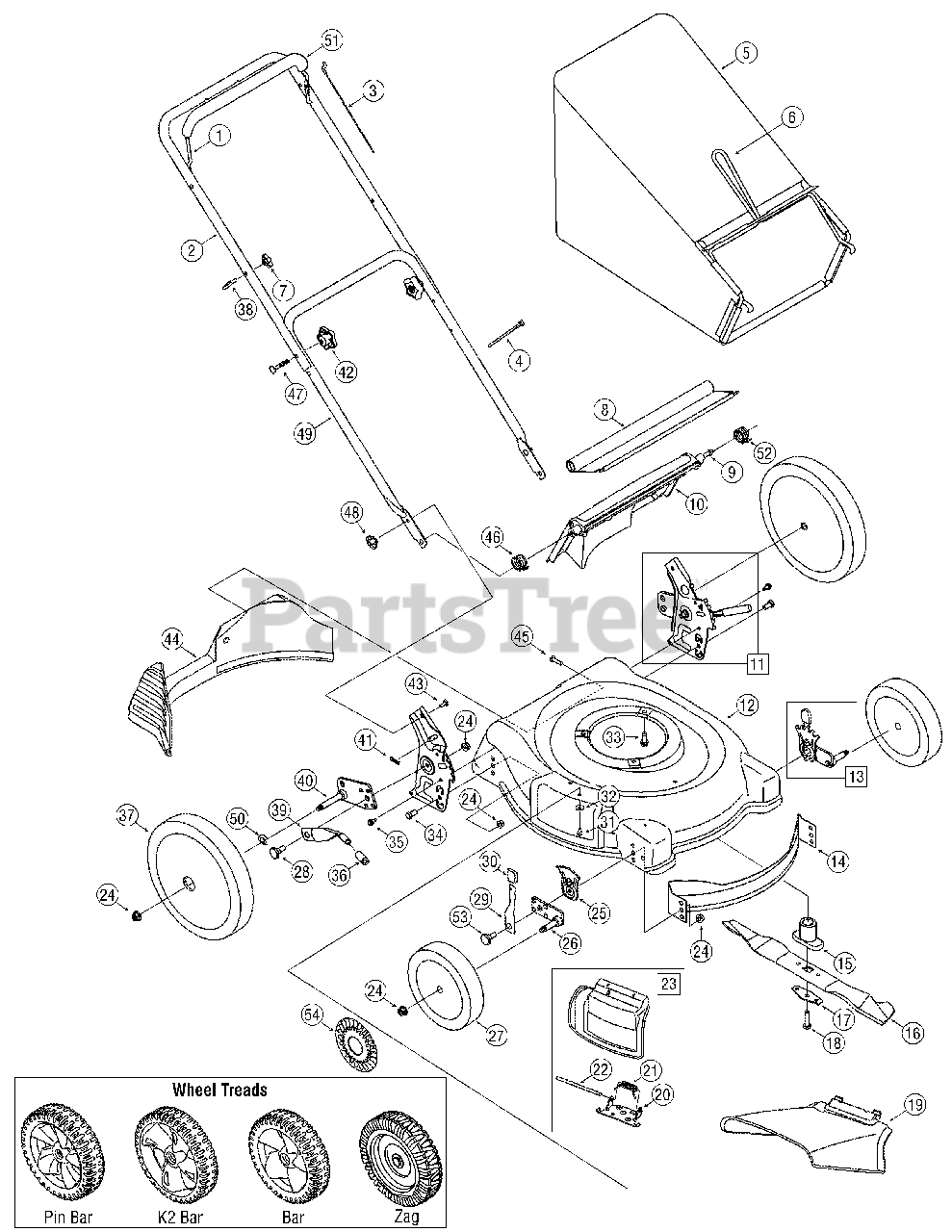

11A-546H229 - Yard Machines Walk-Behind Mower (2007) (Home Depot) General Assembly Parts Diagram

Walk-Behind Mower

General Assembly Parts Diagram

  • Title

1

MTD 747-1161A

Blade Control

Variations

MTD 747-1161A-0637

Operator Bail, Black - POWDER BLACK (0637)

$13.99

$

In Stock, only 4 left!

0

$13.99

$

In Stock, only 4 left!

0

2

MTD 749-1092A

Upper Handle

Variations

MTD 749-1092A-0637

Upper Handle, Black - POWDER BLACK (0637)

$48.99

$

In Stock, only 1 left!

0

MTD 749-1092A-0638

HANDLE-UPPER - MTD/TROY-BILT RED (0638)

$48.99

$

Usually ships in 3-6 days

0

$48.99

$

Usually ships in 3-6 days

0

3

MTD 746-1130

Control Cable, 40"
(Superseded to 946-1130)

$17.99

$

In Stock, Qty 11

0

3

MTD 746-04104

Control Cable, 40", Snap-On
(Superseded to 946-04104)

Note: Kawasaki Engine

$44.99

$

Usually ships in 3-6 days

0

3

MTD 746-1137

Control Cable, 53"
(Superseded to 946-1137)

$21.99

$

In Stock, only 4 left!

0

4

MTD 726-0240

Cable Tie
(Superseded to 725-0157)

$3.99

$

In Stock, only 2 left!

0

5

MTD 664-04007A

Grass Bag Assembly
(Superseded to 964-04007A)

$130.99

$

In Stock, Qty 15

0

5

MTD 664-04034A

Grass Bag Assembly - Gray
(Superseded to 964-04007A)

$130.99

$

In Stock, Qty 15

0

5

MTD 664-04027

Grass Bag Assembly - Yardman
(Superseded to 964-04007A)

$130.99

$

In Stock, Qty 15

0

6

MTD 747-04080

Grass Bag Frame
(Superseded to 747-04080A)

Variations

MTD 747-04080-0637

FRAME-GRASSBAG 21" - POWDER BLACK (0637)

$59.99

$

In Stock, Qty 5

0

$59.99

$

In Stock, Qty 5

0

7

MTD 720-0279

Handle Knob

$4.49

$

Usually ships in 3-6 days

0

8

MTD 731-05642

Trailshield
(Superseded to 731-05642A)

$28.99

$

In Stock, Qty 9

0

9

MTD 747-04588

Pivot Rod

$17.99

$

Usually ships in 3-6 days

0

10

MTD 731-05865

Rear Discharge Door
(Superseded to 731-06847)

$28.99

$

Usually ships in 3-6 days

0

11

MTD 687-02280

Rear Handle Bracket Assy. - LH
(Superseded to 987-02280A)

$53.99

$

Usually ships in 3-6 days

0

11

MTD 687-02279

Rear Handle Bracket Assy. - RH
(Superseded to 987-02279A)

$53.99

$

Usually ships in 3-6 days

0

12

MTD 787-01279

Deck 21-inch

Variations

MTD 787-01279-0650

"No Longer Available DECK-21""" - RED METALLIC (0650)

$

$

Not available

MTD 787-01279-0691

Deck - 21" - BLACK JACK (0691)

$

$

Not available

MTD 787-01279-0709

Deck 21-inch - Green - MASTERCRAFT GREEN (0709)

$

$

Not available

MTD 787-01279-4043

DECK-21" - CRAFTSMAN METALLIC GRAY (4043)

$

$

Not available

MTD 787-01279-0606

21" Deck Ass’y (w/ side dis charge) - MAJESTIC ORANGE (0606)

$

$

Not available

MTD 787-01279-0629

Deck 21-inch - Silver Flake - SILVER FLAKE (0629)

$

$

Not available

MTD 787-01279-0638

Deck 21-inch - Red - MTD/TROY-BILT RED (0638)

$

$

Not available

MTD 787-01279-0665

No Longer Available - YARDMAN GREEN (0665)

$

$

Not available

MTD 787-01279-0689

No Longer Available - POLO GREEN (0689)

$

$

Not available

MTD 787-01279-0716

DECK-21" - CUB YELLOW-99 (0716)

$

$

Not available

MTD 787-01279-0729

No Longer Available - STORM GRAY (0729)

$

$

Not available

$

$

13

MTD 687-02075A

Front Hgt. Adj. Assy., 8" Whl. - LH
(Superseded to 987-02075B)

$35.99

$

In Stock, only 2 left!

0

13

MTD 687-02074A

Front Hgt. Adj. Assy., 8" Whl. - RH
(Superseded to 987-02074B)

$40.99

$

In Stock, only 2 left!

0

13

MTD 687-02099A

Front Hgt. Adj. Assy., 7" Whl. - LH
(Superseded to 987-02099C)

$38.99

$

Usually ships in 3-6 days

0

13

MTD 687-02100A

Front Hgt. Adj. Assy., 7" Whl. - RH
(Superseded to 987-02100C)

$38.99

$

In Stock, only 1 left!

0

14

MTD 782-5002B

Front Baffle
(Superseded to 782P5002B)

$

$

Not available

15

MTD 748-0377C

Blade Adapter w/Star
(Superseded to 748-0377E)

Note: Briggs Engine

$19.99

$

In Stock, only 3 left!

0

15

MTD 748-04082

Blade Adapter - 25mm

$37.99

$

Usually ships in 3-6 days

0

16

MTD 742-0741

21-inch Mulching Blade
(Superseded to 942-0741A)

$29.99

$

In Stock, Qty 20+

0

17

MTD 736-0524B

Bell Blade Support
(Superseded to 736-0524B-1)

$5.99

$

In Stock, Qty 20+

0

18

MTD 710-1257

Hex Screw, 3/8-24 x 2.5

$7.99

$

In Stock, only 2 left!

0

19

MTD 731-04177

Side Discharge Chute

$19.99

$

In Stock, Qty 20+

0

20

MTD 17032A

Deflector Chute Adaptor

$10.99

$

In Stock, only 2 left!

0

21

MTD 732-1014

Torsion Spring
(Superseded to 732-1014C)

$7.99

$

In Stock, only 1 left!

0

22

MTD 747-0710

Hinge Pin
(Superseded to 747-0710A)

$4.49

$

In Stock, only 2 left!

0

23

MTD 687-02055

Hinged Mulch Plug Assembly
(Superseded to 987-02055)

$27.99

$

In Stock, Qty 8

0

24

MTD 712-04065

Flange Lock Nut 3/8-16

$3.99

$

In Stock, Qty 20+

0

25

MTD 787-01290

Height Adjustment Plate
(Superseded to 787-01290A)

$12.99

$

In Stock, only 2 left!

0

26

MTD 687-02077A

Pivot Arm Assy LH use position (7" wheel)
(Superseded to 987-02077A)

$17.99

$

In Stock, Qty 6

0

26

MTD 687-02076A

Pivot Arm Assy RH use position (7" wheel)
(Superseded to 987-02076A)

$

$

Not available

26

MTD 687-02077A

Pivot Arm Assy RH use position (8" wheel)
(Superseded to 987-02077A)

$17.99

$

In Stock, Qty 6

0

26

MTD 687-02076A

Pivot Arm Assy LH use position (8" wheel)
(Superseded to 987-02076A)

$

$

Not available

27

MTD 734-04215

Front Wheel, 8 x 1.8, K2 Bar
(Superseded to 734-1987)

$23.99

$

In Stock, Qty 5

0

27

MTD 734-1988

Front Wheel, 7 x 1.8, Bar

$20.99

$

In Stock, only 4 left!

0

27

MTD 734-1987

Front Wheel, 8 x 1.8, Bar

$23.99

$

In Stock, Qty 5

0

27

MTD 734-2005A

Front Wheel, 8 x 2.125, Zag
(Superseded to 753-08093)

$45.99

$

In Stock, Qty 5

0

27

MTD 734-04086

Front Wheel, 7 x 1.8, Pin Bar
(Superseded to 734-1988)

$20.99

$

In Stock, only 4 left!

0

28

MTD 738-0507B

Shoulder Screw, .5D x .434

$4.49

$

In Stock, only 4 left!

0

29

MTD 732-0404

Front Spring Lever
(Superseded to 94832)

$10.99

$

In Stock, only 3 left!

0

30

MTD 720-0426

Height Adjust Knob
(Superseded to 731-13116-1)

$13.99

$

In Stock, only 1 left!

0

31

MTD 710-0599

TT Screw, 1/4-20 x .500

$4.49

$

In Stock, Qty 20+

0

32

MTD 736-0270

Bell Washer

$3.99

$

In Stock, only 3 left!

0

33

MTD 710-0654A

TT Screw, 3/8-16 x 1.0

$4.49

$

In Stock, only 4 left!

0

34

MTD 710-0216

Hex Screw, 3/8-16 x .75

$4.49

$

In Stock, Qty 16

0

35

MTD 710-1652

TT Screw, 1/4-20 x .625

$4.49

$

Usually ships in 3-6 days

0

36

MTD 720-0312

Foam Grip

$4.99

$

In Stock, Qty 5

0

37

MTD 734-04217

Rear Wheel, 12 x 1.8, K2 Bar
(Superseded to 734-04082)

$45.99

$

In Stock, only 2 left!

0

37

MTD 734-04082

Rear Wheel, 12 x 1.8, Bar

$45.99

$

In Stock, only 2 left!

0

37

MTD 734-04093

Rear Wheel, 12 x 2.125, Zag

$67.99

$

In Stock, only 2 left!

0

37

MTD 734-04089

Rear Wheel, 12 x 1.8, Pin Bar

$58.99

$

Usually ships in 3-6 days

0

38

MTD 710-1205

Eye Bolt

$3.99

$

In Stock, only 3 left!

0

39

MTD 732-0866

Rear Hi-Wheel Spring Lever

$

$

Not available

40

MTD 687-02039A

Rear Pivot Arm Assy - RH
(Superseded to 987-02335)

$27.99

$

Usually ships in 3-6 days

0

40

MTD 687-02040A

Rear Pivot Arm Assy - LH
(Superseded to 987-02336)

$

$

Not available

41

MTD 714-0104

Hairpin Clip

$4.49

$

In Stock, Qty 20+

0

42

MTD 720-04072

Star Knob
(Superseded to 720-04072A)

$6.99

$

In Stock, Qty 20+

0

43

MTD 710-0703

Carriage Bolt ,1/4-20 x .75

$4.49

$

In Stock, Qty 15

0

44

MTD 731-04150C

Rear Baffle

$42.99

$

In Stock, only 2 left!

0

45

MTD 710-1241

Screw HL, 1/4-15 x 1.00

$6.99

$

In Stock, Qty 19

0

46

MTD 732-04090A

Torsion Spring - RH

$7.99

$

Usually ships in 3-6 days

0

47

MTD 710-1174

Carriage Bolt, 5/16-18 x 2

$7.49

$

In Stock, Qty 20+

0

48

MTD 712-0397

Wing Nut
(Superseded to 712-0397A)

$3.99

$

In Stock, Qty 20+

0

49

MTD 749-0928A

Lower Handle
(Superseded to 749-0928A-0637)

Variations

MTD 749-0928A-0637

Lower Handle - POWDER BLACK (0637)

$33.99

$

In Stock, only 3 left!

0

$33.99

$

In Stock, only 3 left!

0

50

MTD 736-0182

Spring Washer

Note: If equipped

$4.49

$

In Stock, Qty 7

0

51

MTD 731-04204

Deluxe Bail Cover - Red

Note: If equipped

$11.99

$

In Stock, only 4 left!

0

51

MTD 731-04859

Deluxe Bail Cover - Gray

Note: If equipped

$11.99

$

Usually ships in 3-6 days

0

52

MTD 732-04089A

Torsion Spring - LH

$7.99

$

Usually ships in 3-6 days

0

53

MTD 738-04266

Shoulder Screw, .500 Dia. X .385

$6.49

$

Usually ships in 3-6 days

0

54

MTD 731-0981A

Hub Cap
(Superseded to 731-0981C)

Note: If equipped

$10.99

$

Usually ships in 3-6 days
