1200 - Husqvarna Chainsaw (1993-05) CHAIN BRAKE Parts Diagram

Chainsaw

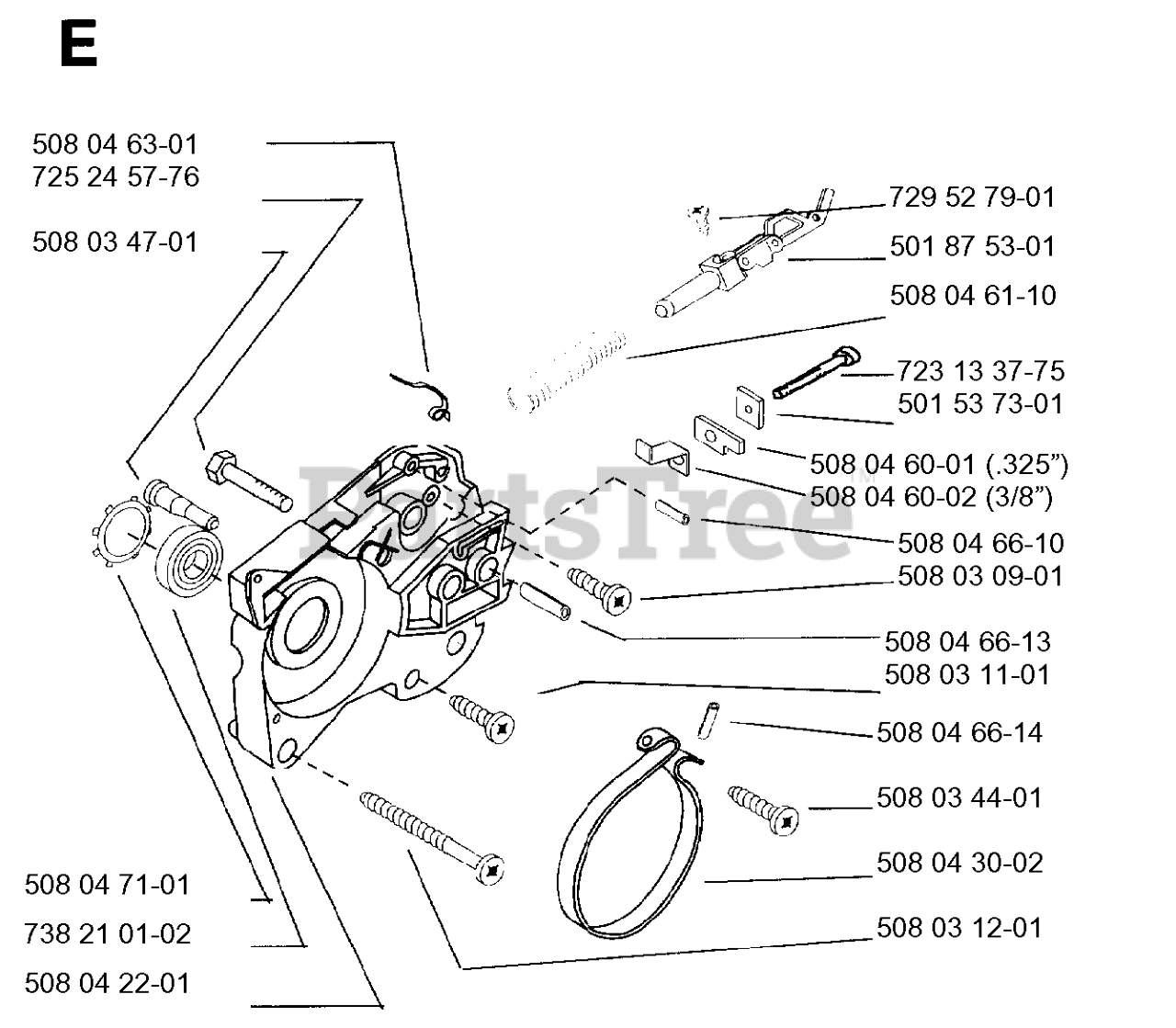

CHAIN BRAKE Parts Diagram

  • Title

508 04 63-01

Husqvarna 508046301

SPRING

$

$

Not available

725 24 57-76

Husqvarna 725245776

SCREW

$4.99

$

Usually ships in 3-10 days

0

508 03 47-01

Husqvarna 508034701

CHAIN CATCHER

$

$

Not available

508 04 71-01

Husqvarna 508047101

WASHER

$

$

Not available

738 21 01-02

Husqvarna 738210102

BALL BEARING

$31.99

$

In Stock, Qty 5

0

508 04 22-01

Husqvarna 508042201

BRACKET
(Superseded to 508042216)

$

$

Not available

508 03 12-01

Husqvarna 508031201

SCREW

$5.99

$

In Stock, only 2 left!

0

508 04 30-02

Husqvarna 508043002

BRAKE BAND
(Superseded to 508043005)

$10.37

$

In Stock, only 2 left!

0

508 03 44-01

Husqvarna 508034401

SCREW

$

$

Not available

508 04 66-14

Husqvarna 508046614

PIN

$

$

Not available

508 03 11-01

Husqvarna 508031101

SCREW

$

$

Not available

508 04 66-13

Husqvarna 508046613

PIN

$

$

Not available

508 03 09-01

Husqvarna 508030901

SCREW

$3.49

$

Usually ships in 3-10 days

0

508 04 66-10

Husqvarna 508046610

PIN

$

$

Not available

508 04 60-02

Husqvarna 508046002

CHAIN TENSIONER
(Superseded to 508046001)

Note: 3/8

$10.99

$

In Stock, Qty 15

0

508 04 60-01

Husqvarna 508046001

CHAIN TENSIONER

Note: .325

$10.99

$

In Stock, Qty 15

0

501 53 73-01

Husqvarna 501537301

COUPLING (10 CNT)

$5.99

$

In Stock, Qty 20+

0

723 13 37-75

Husqvarna 723133775

SCREW
(Superseded to 723133976)

$6.99

$

In Stock, Qty 20+

0

508 04 61-10

Husqvarna 508046110

SPRING

$

$

Not available

501 87 53-01

Husqvarna 501875301

KNEE-JOINT

$37.99

$

Usually ships in 3-10 days

0

729 52 79-01

Husqvarna 729527901

SCREW

$3.49

$

Usually ships in 3-10 days

0
