12059 - Troy-Bilt Horse Rear-Tine Tiller (SN: 120590100101 & Above) WHEEL SPEED LEVER, BELT DRIVE, ENGINE & WHEELS Parts Diagram

Horse Rear-Tine Tiller

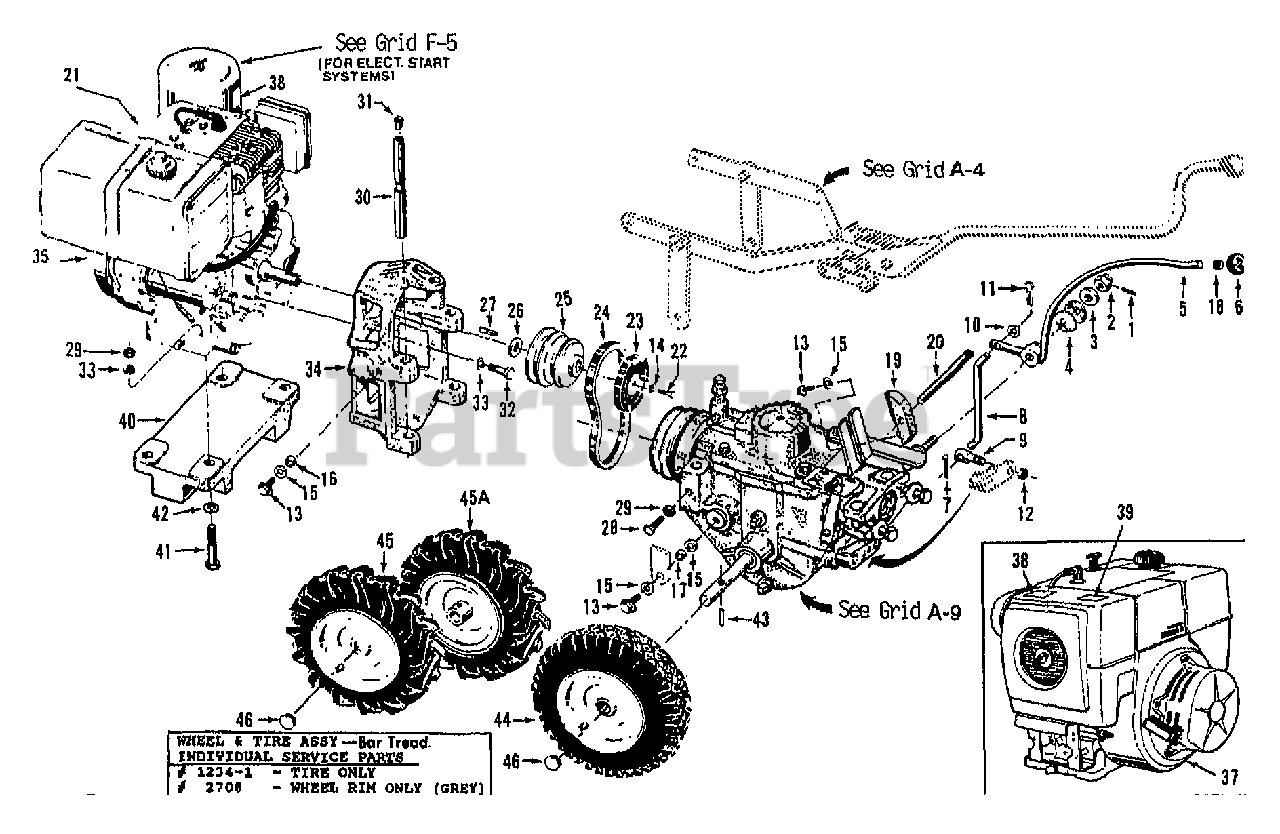

WHEEL SPEED LEVER, BELT DRIVE, ENGINE & WHEELS Parts Diagram

  • Title

1

Troy-Bilt 9362

PIN-SPRING .125 X 1
(Superseded to GW-9362)

$4.49

$

Usually ships in 3-6 days

0

2

MTD 9838

NUT-HEX 1/2-20 (CALL TECH SERV. DEPT. FOR TIGHTENING INSTRUCTIONS)

$

$

Not available

3

Troy-Bilt 9934

WASHER-# SHOULDER ZP (SHOULDER FACES DISC WASHERS)
(Superseded to GW-9934)

$14.99

$

In Stock, only 1 left!

0

4

Troy-Bilt 9932

WASHER-# 1.97X1X.118 (CONCAVE SURFACES FACE EACH OTHER)
(Superseded to GW-9932)

$22.99

$

In Stock, only 3 left!

0

5

Troy-Bilt 2628

LVR-W/KNOB (WHEEL SPEED)
(Superseded to GW-2628)

$132.99

$

Usually ships in 3-6 days

0

6

Troy-Bilt GW-2596

KNOB-WHEEL SPEED HORSE (INCL. #18 & PLASTIC DECAL INLAY)
(Superseded to 1902240)

$21.99

$

In Stock, only 2 left!

0

7

Troy-Bilt 9317

PIN-COTTER .094X1.0
(Superseded to GW-9317)

$3.49

$

Usually ships in 3-6 days

0

8

Troy-Bilt 1231

ROD-CONNECTING
(Superseded to GW-1231)

$15.99

$

In Stock, only 3 left!

0

9

Troy-Bilt 1033

SWIVEL
(Superseded to GW-1033)

$14.99

$

Usually ships in 3-6 days

0

10

Troy-Bilt GW-9902

WASHER-FLAT 5/16 SAE
(Superseded to 736-0567)

$3.49

$

Usually ships in 3-6 days

0

11

Troy-Bilt 9338

PIN-CLIP .08
(Superseded to 714-04048)

$7.49

$

In Stock, only 3 left!

0

12

Troy-Bilt GW-9808

NUT-H/LK 5/16-18
(Superseded to 912-0158)

$3.49

$

In Stock, Qty 20+

0

13

Troy-Bilt GW-90046

SCR-HFLK 3/8-16X1.00 ZP
(Superseded to 710-04042)

$4.49

$

In Stock, only 4 left!

0

14

Troy-Bilt GW-9913

WASHER-LK .375 @ DEPL
(Superseded to 936-0169)

$3.49

$

In Stock, Qty 20+

0

15

Troy-Bilt 9904

WASHER-FLAT 3/8 SAE
(Superseded to 736-3050)

$3.99

$

In Stock, Qty 20+

0

16

Troy-Bilt 2146

BUSHING-.5X.375X.325
(Superseded to GW-2146)

$5.99

$

In Stock, Qty 10

0

17

Troy-Bilt 1113-1

BUSHING-.5X.375X.3
(Superseded to GW-1113-1099)

$4.99

$

In Stock, Qty 20+

0

18

Troy-Bilt 9120

RING-TOLERANCE .5325 ID
(Superseded to GW-9120)

$6.49

$

Usually ships in 3-6 days

0

19

Troy-Bilt 1920

KIT-ADJ BLOCK 4 SP (INCL. # 13,15, & 20)
(Superseded to GW-1920)

$56.99

$

In Stock, only 2 left!

0

20

Troy-Bilt 2100

BAR-ADJUST
(Superseded to GW-2100)

$11.99

$

Usually ships in 3-6 days

0

21

MTD 1900766

DECAL-STARTING STABIL

$

$

Not available

22

Troy-Bilt GW-9715

SCR-HH 3/8-24X1.5 G5
(Superseded to 710-0459A)

$6.99

$

In Stock, Qty 10

0

23

Troy-Bilt 1919

KIT-ADJ BLOCK/REV DISC (INCL. #19)
(Superseded to GW-1919)

$97.99

$

In Stock, Qty 20+

0

23

Troy-Bilt GW-2111

DISC-REV
(Superseded to 756-04171)

$62.99

$

In Stock, Qty 20+

0

24

Troy-Bilt 9245

BELT-V (NO SUBSITUTES RECOMMENDED DUE TO EXTRA STRENGTH REQUIRED)
(Superseded to GW-9245)

$23.99

$

In Stock, Qty 20+

0

25

Troy-Bilt 1483

PULLEY-ENG MACH (POWER TAKE OFF)
(Superseded to 619-04124)

$143.99

$

In Stock, only 3 left!

0

26

Troy-Bilt 1138-1

SHIM-1.0X.7656X.062
(Superseded to 736-04187)

$4.99

$

In Stock, Qty 20+

0

26

Troy-Bilt 1138-2

SHIM-1.0X.7656X.031
(Superseded to 736-04192)

$6.49

$

In Stock, only 3 left!

0

27

Troy-Bilt 9303

KEY-.188 SQ X 2.33
(Superseded to GW-9303)

$3.49

$

In Stock, Qty 10

0

28

Troy-Bilt GW-90008

SCR-HH 5/16-18X1.0 G5 ZP
(Superseded to 710-0376)

$3.99

$

In Stock, Qty 17

0

29

Troy-Bilt GW-9801

NUT-HEX 5/16-18 ZP
(Superseded to 912-3010)

$4.49

$

In Stock, Qty 20+

0

30

Troy-Bilt GW-1034

BAR-ENG MTG W/CAP PLUG
(Superseded to GW-1034A)

$43.99

$

In Stock, Qty 5

0

31

Troy-Bilt 9147

PLUG-CAP (RED)
(Superseded to GW-9147)

$7.49

$

In Stock, only 1 left!

0

32

Troy-Bilt 9572

BOLT-HH 5/16-24X1.125 G5 ZP
(Superseded to 710-0672)

$4.49

$

In Stock, Qty 20+

0

33

Troy-Bilt GW-9912

WASHER-LK .312 ZP
(Superseded to 936-0119)

$4.49

$

In Stock, Qty 20+

0

34

Troy-Bilt 2565

MOUNT-MOTOR HSE OPC PNT
(Superseded to 719-04222-0637)

$290.99

$

Usually ships in 3-6 days

0

35

0

7HP B&S RECOIL START MOD. #171432, TYPE #0529.

$

$

Not available

35

0

7HP B&S ELEC. START MOD. #171437, TYPE #0530.

$

$

Not available

36

0

8HP B&S RECOIL START MOD. #195432, TYPE #0857.

$

$

Not available

36

0

8HP B&S ELEC. START MOD. #195437, TYPE #0858.

$

$

Not available

37

0

8HP KOHLER RECOIL START. MOD. #M8T SPEC. #PS-301608.

$

$

Not available

37

0

8HP KOHLER ELEC. START. MOD. #M8ST SPEC. #PS-301609.

$

$

Not available

38

MTD 55053

DECAL-HOT SURFACE

$

$

Not available

39

MTD 1900767

DECAL-STABIL STARTING

$

$

Not available

40

MTD 2522

WEIGHT-ENG ECONO PNT

$

$

Not available

41

Troy-Bilt GW-9966

SCR-HH 5/16-18X2.25 G5ZP
(Superseded to 710-0395)

$4.49

$

In Stock, Qty 8

0

42

Troy-Bilt 20553

SPACER-.88X.385X.09 ZP
(Superseded to GW-20553)

$

$

Not available

43

Troy-Bilt 9322

PIN-SPIROL .313 X 1.5
(Superseded to GW-9322099)

$7.49

$

In Stock, Qty 20+

0

44

MTD GW-9142

ASSM-STD TIRE

$

$

Not available

45

MTD GW-9143

TIRE-LT BT GARDEN TRAC (WHITE)

$

$

Not available

45A

MTD GW-9144

TIRE-RT BT GARDEN TRAC (WHITE)

$

$

Not available

45

MTD 2709-01

ASSM-TIRE&WHEEL LH GRAY

$

$

Not available

45A

MTD 2709-02

ASSM-TIRE&WHEEL RH GRAY

$

$

Not available

46

Troy-Bilt GW-9145

CAP-HUB BLK PLASTIC
(Superseded to 1902020)

$8.49

$

Usually ships in 3-6 days

0

Troy-Bilt GW-1234-1

TIRE-BTT 4.80/4.00X8.00
(Superseded to 734-0808A)

$115.99

$

Usually ships in 3-6 days

0

MTD GW-2708

RIM-WHEEL 8" GRAY

$

$

Not available
