12060 - Troy-Bilt Tuffy Rear-Tine Tiller (SN: 0012160 & Above) ENGINE, BRACKETS & FORWARD DRIVE Parts Diagram

Tuffy Rear-Tine Tiller

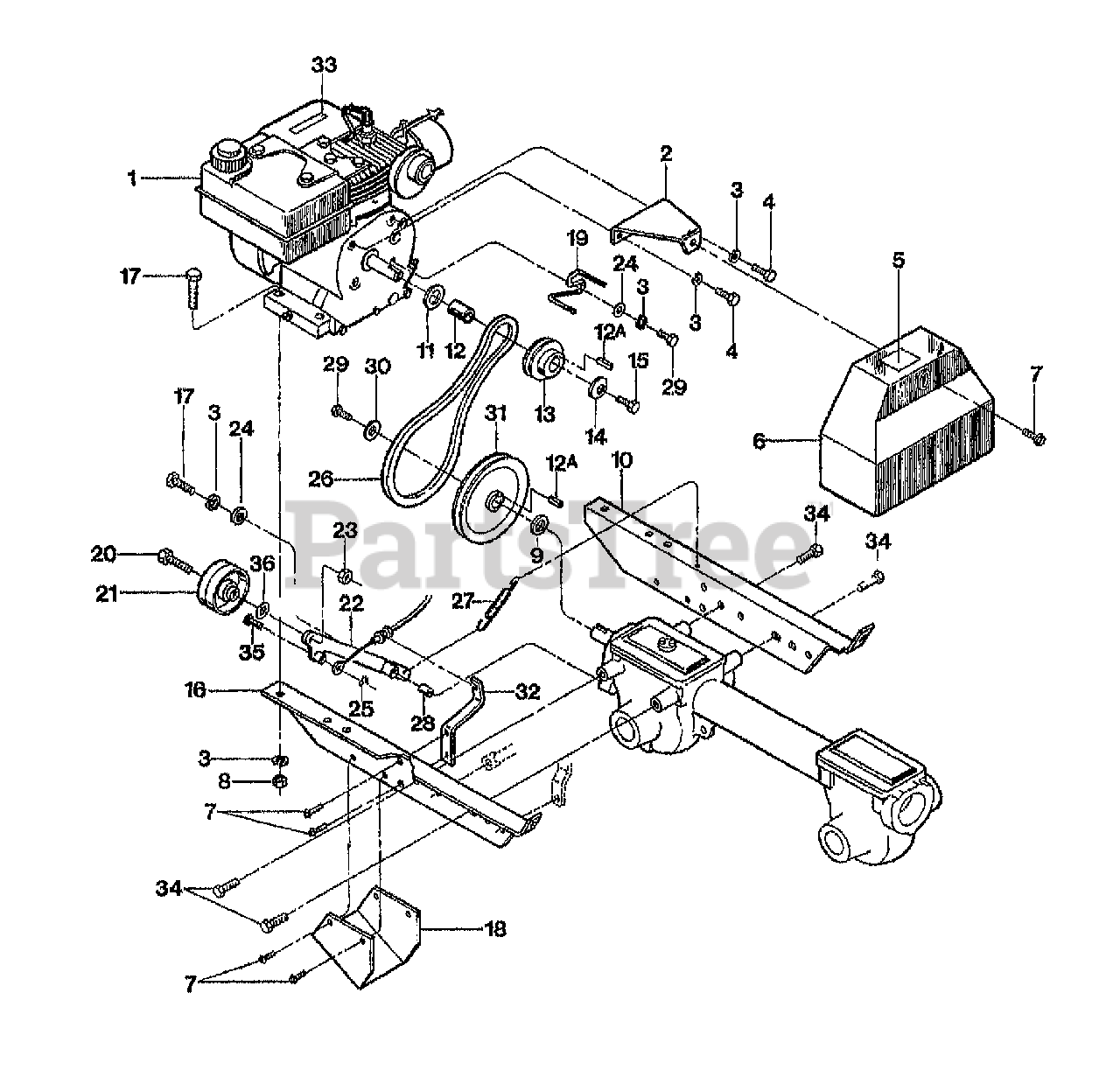

ENGINE, BRACKETS & FORWARD DRIVE Parts Diagram

  • Title

1

0

ENGINE, TECUMSEH 3HP (H30-35387S)

$

$

Not available

2

Troy-Bilt 55079

BRKT-BELT COVER PNT
(Superseded to 1916112001)

$

$

Not available

3

Troy-Bilt 1100242

WASHER-LK .312 ZP
(Superseded to 936-0119)

$4.49

$

In Stock, Qty 20+

0

4

MTD 1111696

SCR-HH 5/16-24X.50

$

$

Not available

5

MTD 55053

DECAL-HOT SURFACE

$

$

Not available

6

Troy-Bilt 55086

COVER-BELT W/DECAL 55053

$

$

Currently unavailable

7

Troy-Bilt 9552

SCR-HWH 1/4-20 X .5 STH
(Superseded to 710-0599)

$3.99

$

In Stock, Qty 20+

0

8

Troy-Bilt 1186230

NUT-HEX 5/16-18 ZP
(Superseded to 912-3010)

$4.49

$

In Stock, Qty 20+

0

9

Troy-Bilt 50027

WASHER-SHLDR HARDENED
(Superseded to GW-50027)

$6.49

$

In Stock, Qty 10

0

10

MTD 55077-2

BRKT-ENGINE PNT

$

$

Not available

11

Troy-Bilt 1138-2

SHIM-1.0X.7656X.031
(Superseded to 736-04192)

$6.49

$

In Stock, only 3 left!

0

12

MTD 55036

SPACER

$

$

Not available

12A

Troy-Bilt 9301

KEY-.188 SQX1.0
(Superseded to GW-9301099)

$3.49

$

In Stock, Qty 17

0

13

Troy-Bilt 55035

PULLEY-ENGINE
(Superseded to GW-55035)

$

$

Not available

14

MTD 9925

WASHER-.994X.413X.145

$

$

Not available

15

Troy-Bilt 1100009

SCR-HH 3/8-24X1.0 G5 ZP
(Superseded to 710-1039)

$4.49

$

In Stock, Qty 11

0

16

MTD 55077-1

BRKT-ENGINE LEFT PNT

$

$

Not available

17

Troy-Bilt 1100799

SCR-HH 5/16-18X1.5 G5 ZP
(Superseded to 710-0805A)

$3.99

$

In Stock, Qty 8

0

18

MTD 55080

GUARD-BELT/PULLEY PNT

$

$

Not available

19

Troy-Bilt 55039

BELT STOP
(Superseded to GW-55039)

$

$

Not available

20

MTD 9558

BOLT-HH 3/8-16X1.5 FTH ZP

$

$

Not available

21

Troy-Bilt 9090

PULLEY-IDLER FORWARD
(Superseded to 756-04170)

$33.99

$

In Stock, Qty 10

0

22

MTD 55078

ARM-IDLER PNT

$

$

Not available

23

Troy-Bilt 1110108

NUT-H/LK 3/8-16
(Superseded to 712-0375)

$4.49

$

In Stock, Qty 12

0

24

Troy-Bilt 1100255

WASHER-FLAT 5/16 SAE
(Superseded to 736-0262)

$3.99

$

In Stock, Qty 20+

0

25

MTD 9386

RING-KLIP .188 DIA

$

$

Not available

26

Troy-Bilt 55037

BELT-V TUFFY
(Superseded to 954-04089)

$25.99

$

In Stock, Qty 20+

0

27

Troy-Bilt 55034

SPRING-RETURN
(Superseded to 732-04085)

$13.99

$

In Stock, Qty 5

0

28

MTD 55033

BUSHING-IDLER LEVER PM

$

$

Not available

29

Troy-Bilt 1100004

SCR-HH 5/16-24X.75 G5 ZP
(Superseded to 710-0157)

$3.99

$

In Stock, Qty 16

0

30

Troy-Bilt 9944

WASHER-.827X.331X.098
(Superseded to 736-04193)

$6.49

$

In Stock, Qty 9

0

31

MTD 55031

PULLEY-TRANSMISSION
(Superseded to 656-04017)

$

$

Not available

32

MTD 55084

BRKT-CABLE MTG PNT

$

$

Not available

33

MTD 1900766

DECAL-STARTING STABIL

$

$

Not available

34

Troy-Bilt 90038

SCR-HFLK 5/16-18X.62 G5ZP

$

$

Currently unavailable

35

MTD 9856

PIN-CLEVIS CABLE

$

$

Not available

36

Troy-Bilt 9904

WASHER-FLAT 3/8 SAE
(Superseded to 736-3050)

$3.99

$

In Stock, Qty 20+

0
