12060 - Troy-Bilt Tuffy Rear-Tine Tiller (SN: 0012160 & Above) HANDLE BARS & CLUTCH CABLE Parts Diagram

Tuffy Rear-Tine Tiller

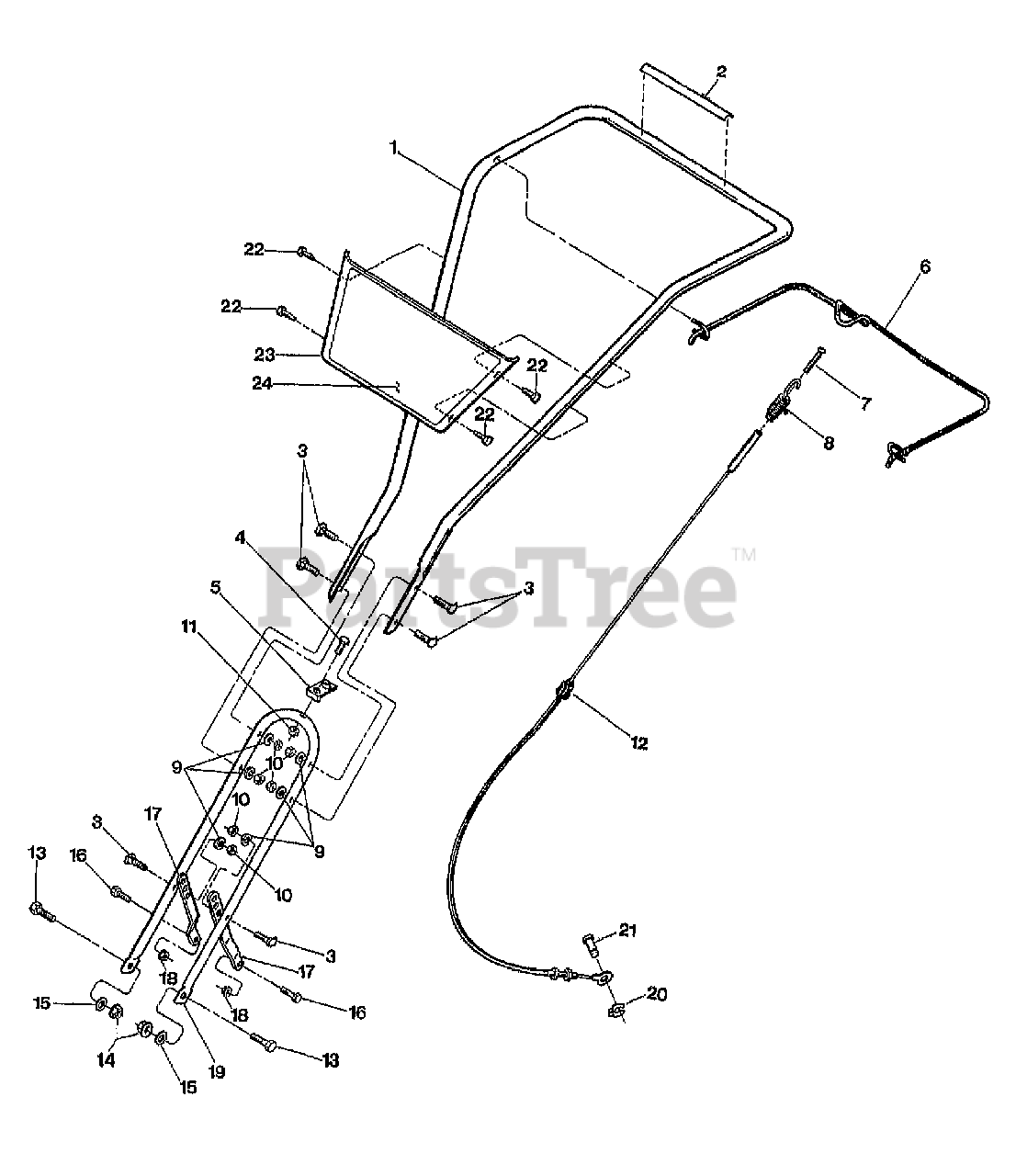

HANDLE BARS & CLUTCH CABLE Parts Diagram

  • Title

1

Troy-Bilt 55104

HANDLEBAR-UPR W/DECAL
(Superseded to 749-04084-0638)

$

$

Not available

2

MTD 1900765

DECAL-55103

$

$

Not available

3

Troy-Bilt 9854

SCR-CUR.H.5/16X1 1/2
(Superseded to 710-0805A)

$3.99

$

In Stock, Qty 8

0

4

Troy-Bilt 1100806

SCR-HH 1/4-20X1.25
(Superseded to 710-0106)

$3.99

$

In Stock, only 1 left!

0

5

Troy-Bilt 55044

TAB-CONDUIT MOUNT
(Superseded to GW-55044)

$18.99

$

Usually ships in 3-6 days

0

6

MTD 55046

BAIL-FWD. DRIVE PNT

$

$

Not available

7

Troy-Bilt 9855

SCR-SLOT.H.10-24X2
(Superseded to 710-04163)

$

$

Not available

8

Troy-Bilt 55047

ASSM-SPRING CABLE
(Superseded to GW-55047)

$

$

Not available

9

Troy-Bilt 1100242

WASHER-LK .312 ZP
(Superseded to 936-0119)

$4.49

$

In Stock, Qty 20+

0

10

Troy-Bilt 1186230

NUT-HEX 5/16-18 ZP
(Superseded to 912-3010)

$4.49

$

In Stock, Qty 20+

0

11

Troy-Bilt 1817146

NUT-LK 1/4-20
(Superseded to 712-0324)

$3.49

$

In Stock, Qty 20+

0

12

Troy-Bilt 55048

ASSM-CONTROL CABLE
(Superseded to GW-55048P)

$32.99

$

In Stock, Qty 20+

0

13

Troy-Bilt 1100068

SCR-HH 3/8-16X.75 G5 ZP
(Superseded to 710-0216)

$3.99

$

In Stock, Qty 17

0

14

Troy-Bilt 9837

NUT-LOCK 3/8-16 NYLON ZP
(Superseded to 912-3000)

$3.99

$

In Stock, Qty 20+

0

15

Troy-Bilt 9904

WASHER-FLAT 3/8 SAE
(Superseded to 736-3050)

$3.99

$

In Stock, Qty 20+

0

16

Troy-Bilt 1100044

SCR-HHC 5/16-18X.75 GR 5 ZP
(Superseded to 710-3008)

$3.99

$

In Stock, Qty 20+

0

17

Troy-Bilt 55081

LINK-H/BAR PNT
(Superseded to 1916107001)

$

$

Not available

18

Troy-Bilt 1110107

NUT-H/LK 5/16-18
(Superseded to 912-0158)

$3.49

$

In Stock, Qty 20+

0

19

Troy-Bilt 55082

HANDLEBAR-LWR PNT

$

$

Currently unavailable

20

MTD 9386

RING-KLIP .188 DIA

$

$

Not available

21

MTD 9856

PIN-CLEVIS CABLE

$

$

Not available

22

Troy-Bilt 9552

SCR-HWH 1/4-20 X .5 STH
(Superseded to 710-0599)

$3.99

$

In Stock, Qty 20+

0

23

MTD 1901273010

PANEL-55102 PNT

$

$

Not available

24

MTD 55097

DECAL-GRAPHICS PANEL TUFFY (MODEL NAME & LOGO)

$

$

Not available
