12097 - Troy-Bilt Mini-Tiller (SN: 120970100101 & Above) TRANSMISSION Parts Diagram

Mini-Tiller

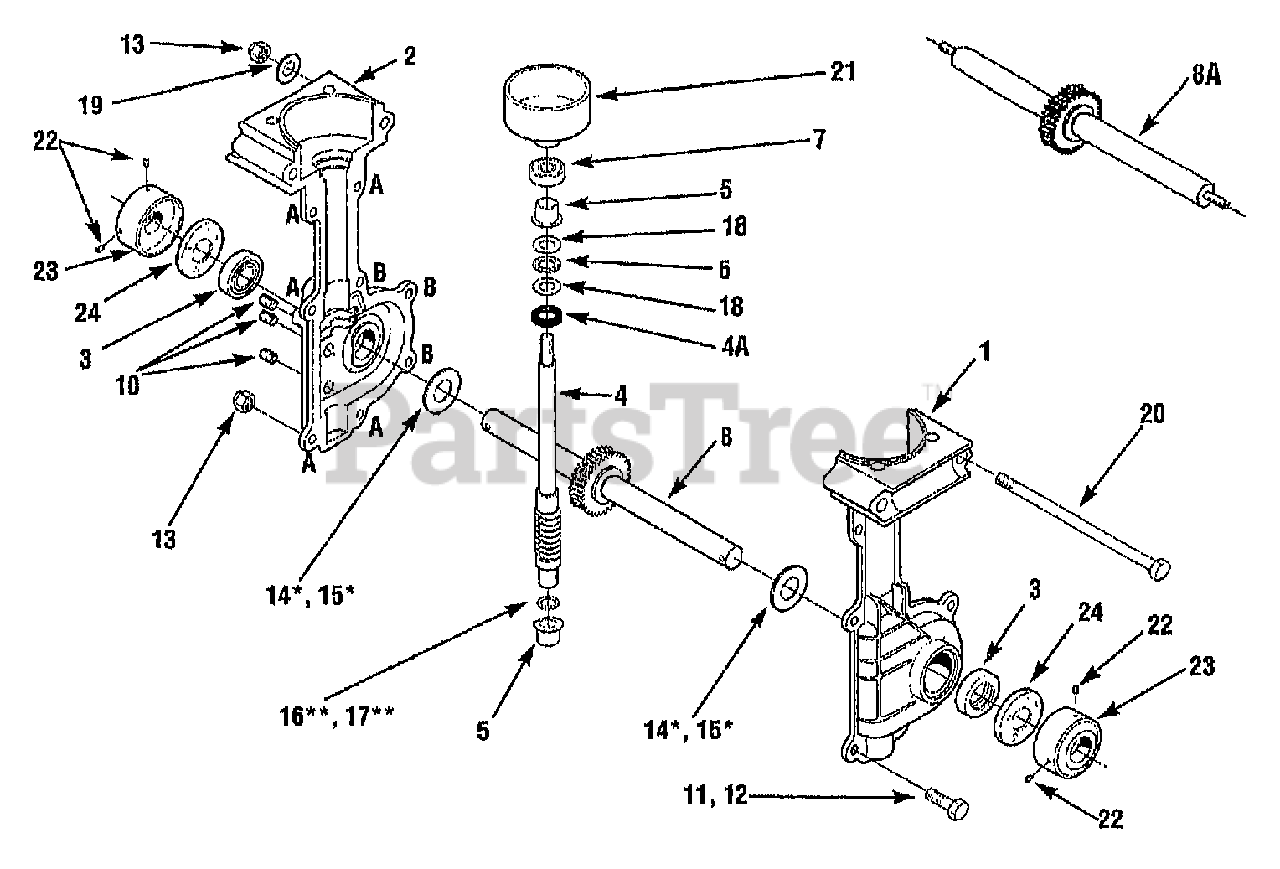

TRANSMISSION Parts Diagram

  • Title

1

Troy-Bilt 1915039

ASSM-TRANS CASE LEFT W/PRESSED IN BUSHING

$

$

Not available

2

MTD 1915040

ASSM-TRANS CASE RIGHT W/PRESSED IN BUSHING

$

$

Not available

3

Troy-Bilt 1983632

SEAL-PINION SHAFT PT/85030/00
(Superseded to 921-04044)

$8.99

$

In Stock, Qty 20+

0

4

Troy-Bilt 1983634

SHAFT-WORM PT/85032/00
(Superseded to 1918307)

$57.99

$

Usually ships in 3-6 days

0

4A

MTD 1909923

SEAL-OIL INPUT SHAFT
(Superseded to 921-04032)

$

$

Not available

5

Troy-Bilt 1983731

BEARING-INPUT

$11.99

$

Usually ships in 3-6 days

0

6

Troy-Bilt 1983636

BEARING-THRUST PT/85034/00
(Superseded to 741-04052)

$

$

Not available

7

Troy-Bilt 1983637

BEARING-BALL PT/85035/00

$35.99

$

Usually ships in 3-6 days

0

?8

Troy-Bilt 1904416

ASSM-OUTPUT SHAFT

$

$

Not available

8A

MTD 1909482

ASSM-OUTPUT SHAFT {120970300100 AND BELOW}

$

$

Not available

?9

0

REF. NUMBER NOT USED.

$

$

Not available

10

Troy-Bilt 1185741

PLUG-PIPE 1/8 NPT
(Superseded to 737-04178)

$3.99

$

Usually ships in 3-6 days

0

11

Troy-Bilt 1111600

SCR-HH 1/4-20 X .875
(Superseded to 710-0206)

$4.49

$

Usually ships in 3-6 days

0

12

Troy-Bilt 1100069

SCR-HH 1/4-20X1.0
(Superseded to 710-0597)

$3.99

$

In Stock, Qty 19

0

13

Troy-Bilt 1817146

NUT-LK 1/4-20
(Superseded to 712-0324)

$3.49

$

In Stock, Qty 20+

0

14

MTD 1983635

WASHER-THRUST .775X.05 AS REQ'D

$

$

Not available

15

MTD 1983635

WASHER-THRUST .775X.05 AS REQ'D

$

$

Not available

16

Troy-Bilt 1983641

WASHER-THRUST .505X.02 AS REQ'D

$3.49

$

Usually ships in 3-6 days

0

17

Troy-Bilt 1983642

WASHER-.76X.5X.04 THRUST AS REQ'D
(Superseded to 936-0616)

$4.49

$

Usually ships in 3-6 days

0

18

Troy-Bilt 1983638

WASHER-THRUST .92X.5X.06

$

$

Not available

19

Troy-Bilt 1107381

WASHER-FLAT 1/4 SAE
(Superseded to 936-3020)

$

$

Not available

20

MTD 1983663

SCR-HH 1/4-20X5

$

$

Not available

21

Troy-Bilt 1909486

ASSM-CLUTCH & DRUM

$53.99

$

Usually ships in 3-6 days

0

22

Troy-Bilt 1747166

SCR-SET 1/4-28X.38 HXSKT

$3.99

$

Usually ships in 3-6 days

0

23

Troy-Bilt 1915055

CAP-DUST

$10.99

$

Usually ships in 3-6 days

0

24

Troy-Bilt 1983713

WASHER-FELT 1.5X.72X.13

$4.99

$

Usually ships in 3-6 days

0
