1210 - Lawn-Boy Walk-Behind Mower (SN: 900000001 - 999999999) (1959) MODEL 1210 MOWER Parts Diagram

Walk-Behind Mower

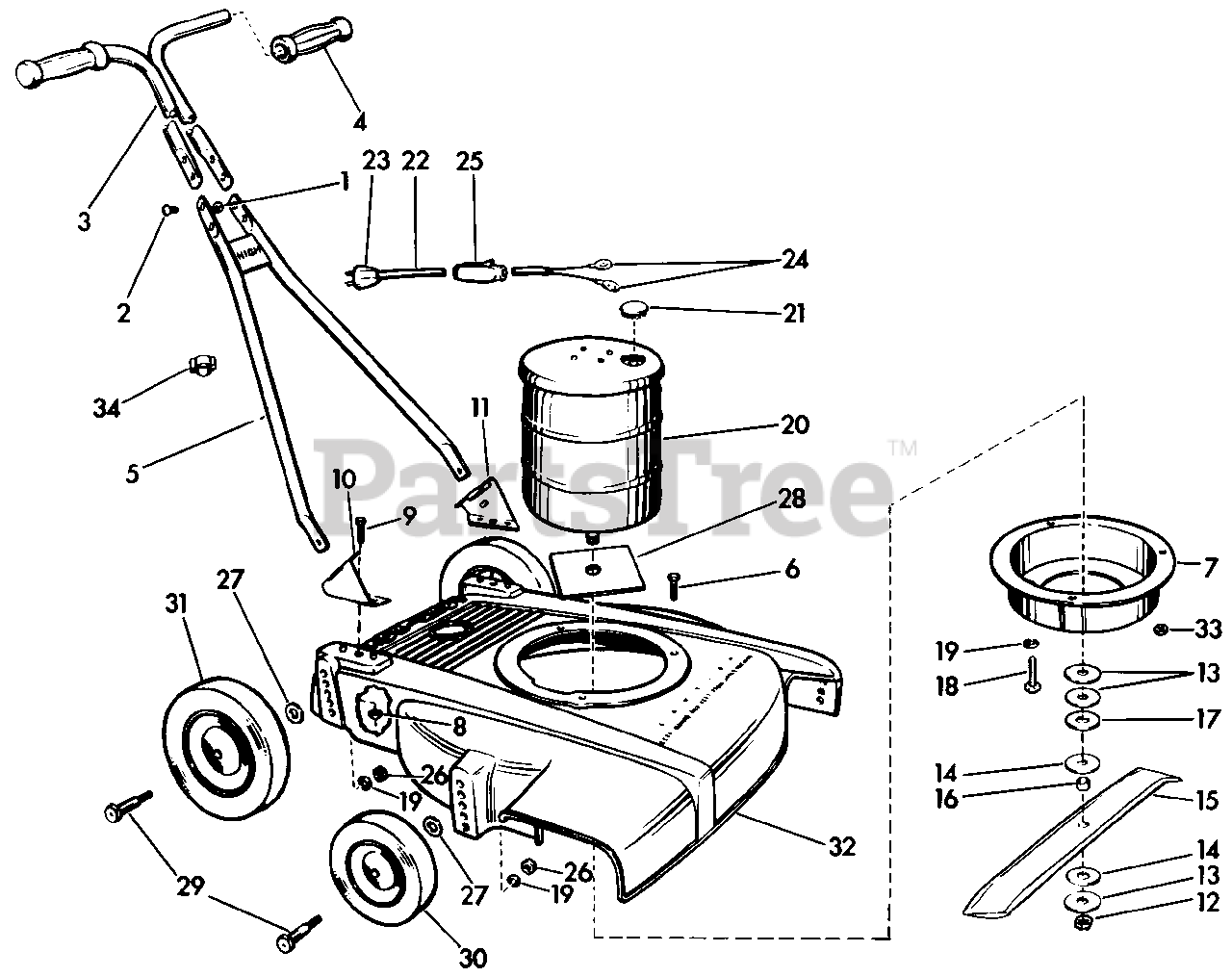

MODEL 1210 MOWER Parts Diagram

  • Title

1

Lawn-Boy 602201

Nut-Handle

$

$

Not available

2

Lawn-Boy 602025

Screw-Handle and Chute Guard

$

$

Not available

3

Lawn-Boy 677354

Handle Assembly-Top Half

$

$

Not available

4

Lawn-Boy 603025

Grip-Handle

$

$

Not available

5

Lawn-Boy 677355

Handle Assembly-Bottom Half

$

$

Not available

6

Lawn-Boy 602693

Screw-Plate Adapter

$

$

Not available

7

Lawn-Boy 603517

Adapter Plate

$

$

Currently unavailable

8

Lawn-Boy 602830

Nut-Handle Bracket

$

$

Not available

9

Lawn-Boy 602693

Screw-Handle Bracket

$

$

Not available

10

Lawn-Boy 677118

Handle Bracket-Right

$

$

Not available

11

Lawn-Boy 677117

Handle Bracket-Left

$

$

Not available

12

Lawn-Boy 602439

Nut-Blade

$

$

Not available

13

Lawn-Boy 602145

Washer, Blade

$

$

Not available

14

Lawn-Boy 602178

Washer-Fiber, Blade

$

$

Not available

15

Lawn-Boy 602165

Blade-18"

$

$

Currently unavailable

16

Lawn-Boy 602174

Bushing-Blade

$

$

Currently unavailable

17

Lawn-Boy 602148

Washer-Rubber, Blade

$

$

Not available

18

Lawn-Boy 602693

Screw, Motor Mounting

$

$

Not available

19

Lawn-Boy 120177

Washer Wheel

$3.99

$

Usually ships in 3-6 days

0

20

Lawn-Boy 677702

Motor, 1/3 HP Elec. 3450 RPM

$

$

Not available

22

Lawn-Boy 677280

Cord Assembly-Electric

$

$

Not available

23

Lawn-Boy 602044

Plug-Electric

$

$

Currently unavailable

24

Lawn-Boy 602138

Lug-Electric

$

$

Currently unavailable

25

Lawn-Boy 602045

Switch-Toggle

$

$

Currently unavailable

26

Lawn-Boy 602677

Nut-Wheel

$5.49

$

Usually ships in 3-6 days

0

27

Lawn-Boy 602627

Washer-Plain Wheel

$

$

Not available

29

Lawn-Boy 602680

Bolt-Shoulder Wheel

$

$

Not available

30

Lawn-Boy 677533

Wheel Assembly-6 x 1.50

$

$

Not available

31

Lawn-Boy 677534

Wheel Assembly-8 x 1.75

$

$

Not available

32

Lawn-Boy 603034

Housing-18"

$

$

Currently unavailable

33

Lawn-Boy 602830

Nut-Plate Adapter

$

$

Not available

34

Lawn-Boy 602144

Clip-Electric Cord

$

$

Currently unavailable

Lawn-Boy 306325

Washer, Motor Mounting

$

$

Not available
