12168 - Troy-Bilt Versatiller Rear-Tine Tiller (SN: 121681100101 - 121681199999) Transmission Assembly Parts Diagram

Versatiller Rear-Tine Tiller

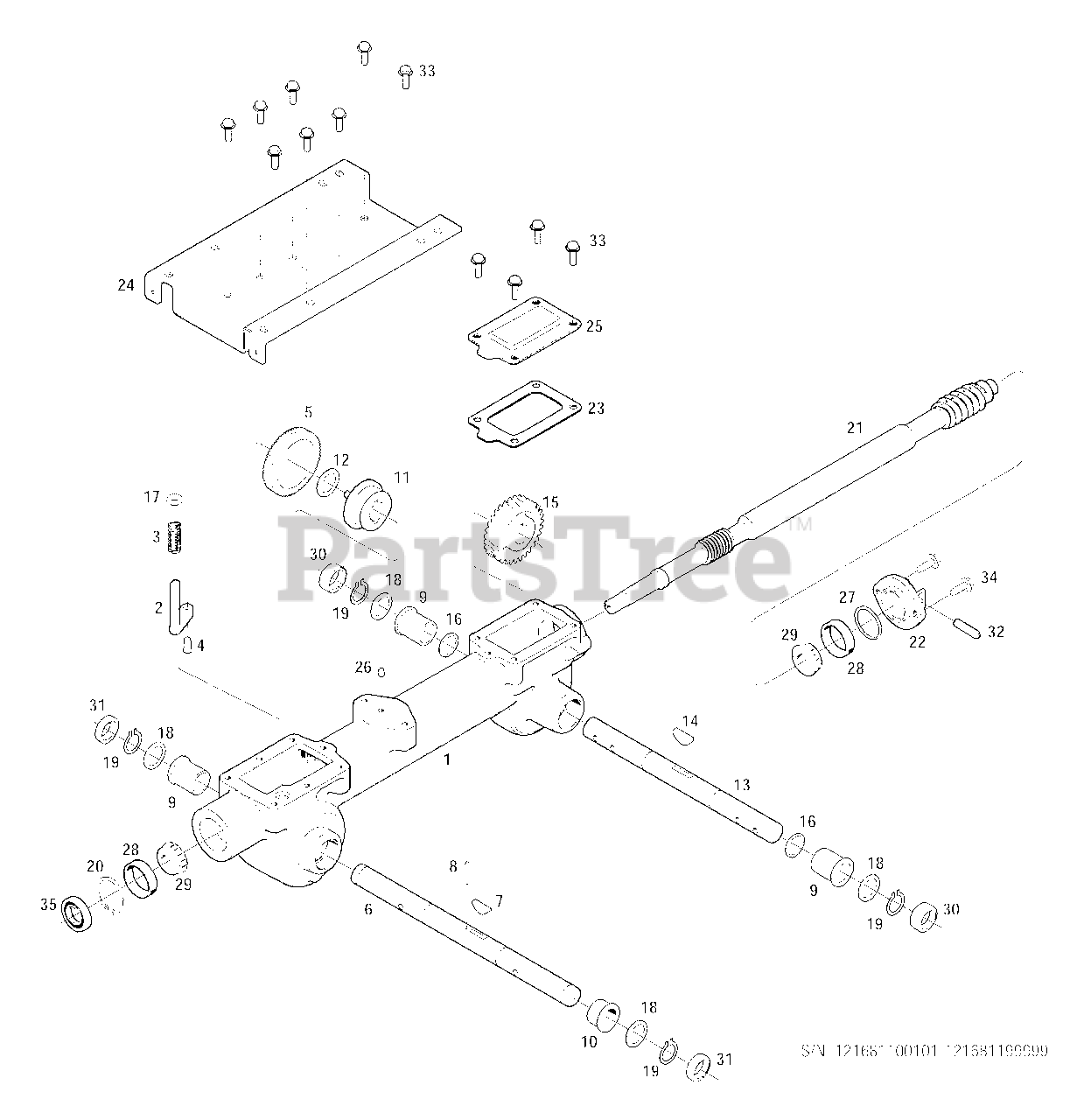

Transmission Assembly Parts Diagram

  • Title

1

MTD 1911302010

Transmission Housing

$

$

Not available

2

MTD 1911309

Eccentric Shaft

$

$

Not available

3

MTD 1911347

Spring, Compression

$

$

Not available

4

Troy-Bilt GW-1442

Pin, .375 x .720
(Superseded to 738-04448)

$7.99

$

In Stock, Qty 10

0

5

MTD 1911312

Gear, Wheel Drive

$

$

Not available

6

MTD 1911452

Wheel Shaft

Note: (Incl. Ref. 7 & 8)

$

$

Not available

7

Troy-Bilt GW-9305

Key, High Profile
(Superseded to 714-04059)

$6.49

$

In Stock, Qty 8

0

8

Troy-Bilt 1911372

Spring Pin

$3.49

$

Usually ships in 3-6 days

0

9

MTD 1911333

Bushing, Long

$

$

Not available

10

MTD 1911332

Bushing, Short

$

$

Not available

11

MTD 1911488

Wheel Drive Clutch

$

$

Not available

12

Troy-Bilt GW-9935

Washer, Thrust 1.468 x 1.016 x .062

$3.49

$

In Stock, only 1 left!

0

13

MTD 1911316

Shaft, Tiller

$

$

Not available

14

Troy-Bilt GW-1104

Key, Woodruff

$8.99

$

In Stock, only 3 left!

0

15

MTD 50042

Worm Gear

$

$

Not available

16

Troy-Bilt GW-1132

Shim, 1.234 x 1.015

$

$

Currently unavailable

17

MTD 1911409

Seal, Eccentric

$

$

Not available

18

Troy-Bilt GW-1166

Shim, 1.375 x 1.015

$

$

Currently unavailable

19

Troy-Bilt GW-9511

Retaining Ring, External .906
(Superseded to 716-04104)

$3.99

$

In Stock, Qty 20+

0

20

Troy-Bilt GW-9517

Retaining Ring, Internal 1.812
(Superseded to 716-04102)

$4.49

$

In Stock, Qty 20+

0

21

MTD 1911453

Drive Shaft

Note: (Incl. Ref. 29)

$

$

Not available

22

MTD 1911454

Rear Bearing Cap

Note: (Incl. Ref. 32)

$

$

Not available

23

MTD 1915328

Gasket-Rear Housing

$

$

Not available

24

MTD 1911310010

Transmission Cover/Front

$

$

Not available

25

MTD 1911331010

Transmission Cover/Rear

$

$

Not available

26

MTD 1911373

Vent Plug

$

$

Not available

27

Troy-Bilt GW-1224

Shim, 1-3/4 x 1-1/2

$

$

Currently unavailable

28

Troy-Bilt GW-9400

Cup, Tapered Roller Bearing
(Superseded to 941-04299)

$6.49

$

In Stock, Qty 20+

0

29

Troy-Bilt GW-9401

Cone, Tapered Roller Bearing
(Superseded to 941-04298)

$15.99

$

In Stock, Qty 20+

0

30

Troy-Bilt 1909374

Oil Seal-Tine Shaft
(Superseded to 921-04036)

$17.99

$

In Stock, Qty 20+

0

31

Troy-Bilt GW-9621

Oil Seal-Wheel Shaft
(Superseded to 921-04031)

$10.99

$

In Stock, Qty 20+

0

32

Troy-Bilt 1911434

Spring Pin, 3/8

$

$

Currently unavailable

33

Troy-Bilt 1911411

Screw, Hex Flange 5/16-18 x 7/8 Whiz Lock Thread Forming

$

$

Currently unavailable

34

Troy-Bilt 90063

Screw, Hex Flange, 5/16-18 x 1
(Superseded to 710-0602)

$4.49

$

In Stock, Qty 20+

0

35

Troy-Bilt GW-9617

Oil Seal, Drive Shaft
(Superseded to 921-04030)

$11.99

$

In Stock, Qty 20+

0
